5. Remove the USB/video-connector module securing screw and remove the module. See Figure 1 -1 .
6. Remove the two control-panel securing screws and remove the control panel.
7. Disconnect the control panel from the control panel cable.

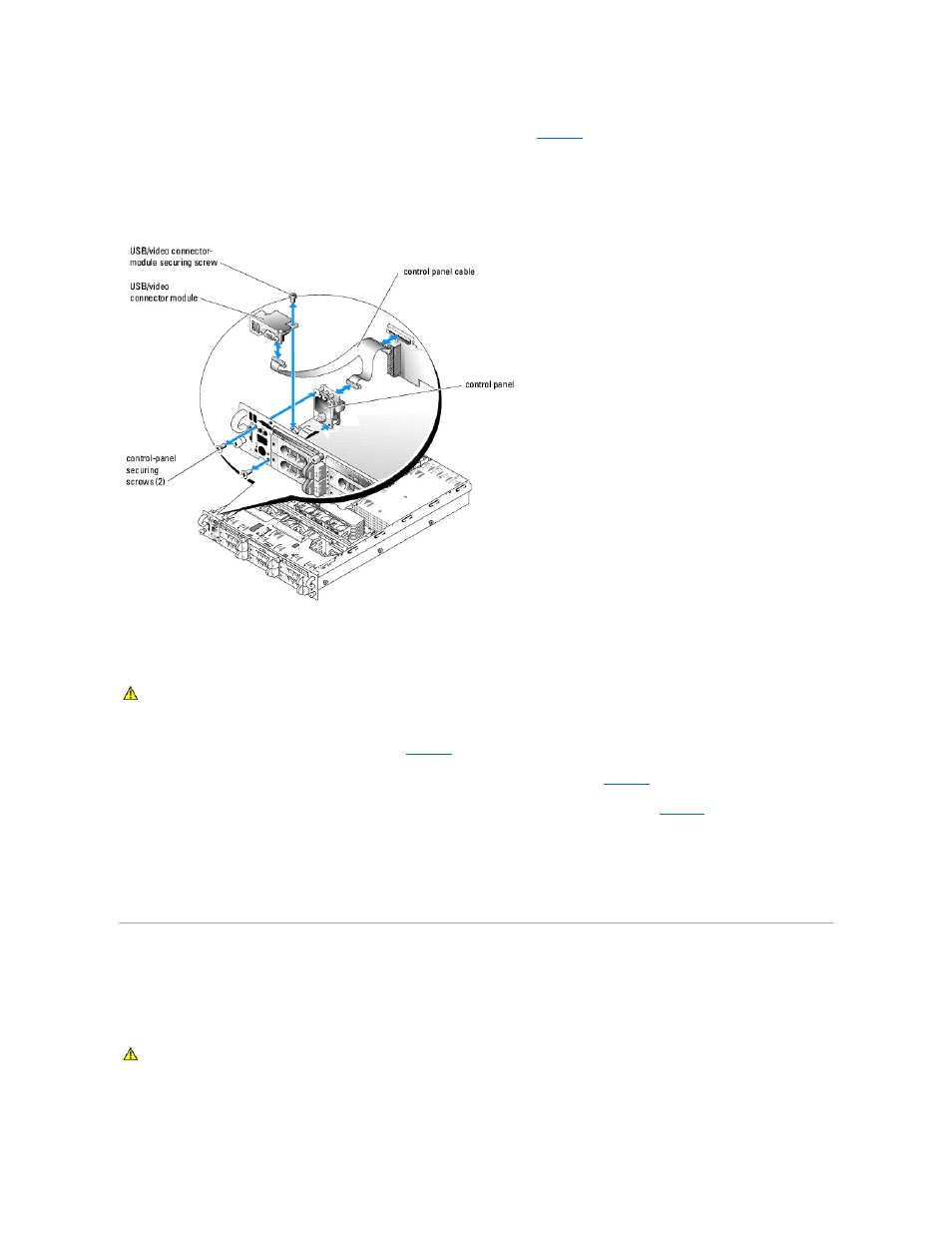

Figure 1-1. Control Panel Removal
Installing the Control Panel
1. Connect the control panel to the control panel cable. See Figure 1 -1 .
2. Slide the control panel into the chassis and secure it with the two control-panel securing screws. See Figure 1 -1 .
3. Replace the USB/video-connector module and secure it with the USB/video-connector module securing screw. See Figure 1 -1 .
4. If applicable, replace the SCSI backplane daughter card.
5. Close the system.
6. If applicable, install the bezel.
Expansion-Card Riser Board
Removing the Expansion-Card Riser Board
1. If applicable, remove the bezel:
CAUTION: Only trained service technicians are authorized to remove the system cover and access any of the components inside the system. See
your Product Information Guide for complete information about safety precautions, working inside the computer, and protecting against
electrostatic discharge.
CAUTION: Only trained service technicians are authorized to remove the system cover and access any of the components inside the system. See
your Product Information Guide for complete information about safety precautions, working inside the computer, and protecting against
electrostatic discharge.
