Using CDs, DVDs, and Other Multimedia
3 Plug all three ends of the component video cable into the component video-output connectors on the
component video adapter. Make sure that the red, green, and blue colors of the cable match the
corresponding adapter ports.
4 Plug all three connectors from the other end of the component video cable into the component video-
input connectors on the TV. Make sure that the red, green, and blue colors of the cable match the
colors of the TV input connectors.
5 Plug one end of the S/PDIF digital audio cable into the S/PDIF audio connector on the component
video adapter.
6 Plug the other end of the digital audio cable into the S/PDIF input connector on your TV or other
audio device.
7 Turn on the TV, turn on any audio device that you connected (if applicable), and then turn on the
computer.
8 See "Enabling the Display Settings for a TV in Microsoft ®
Windows
®
XP" on page 70 to ensure that
the computer recognizes and works properly with the TV.

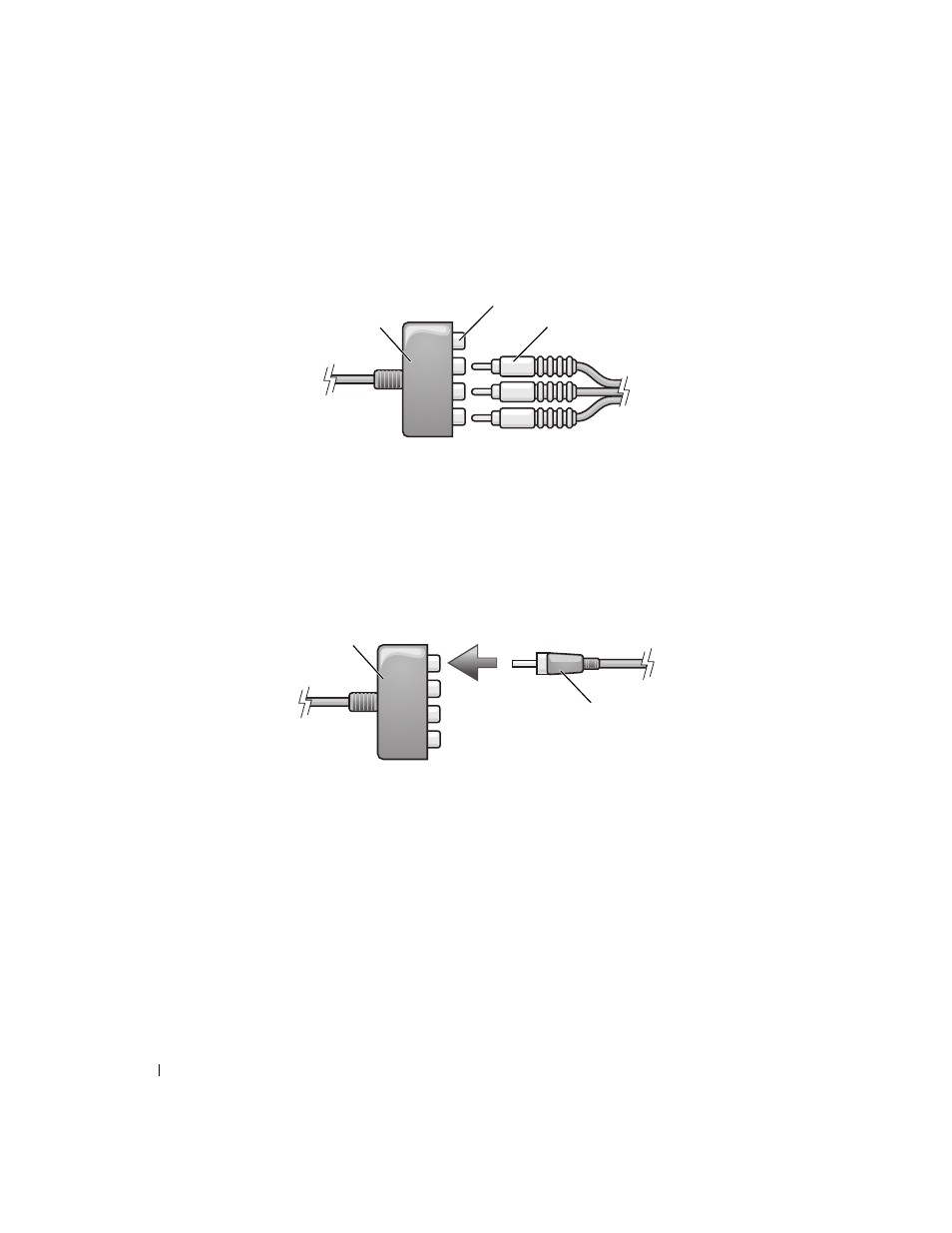

1 component video adapter 2 component video-output
connectors 3 component video cable
1 component video adapter 2 S/PDIF digital audio cable
3 1
2
2
1
