Removing and Replacing Parts

4-33

eyboard

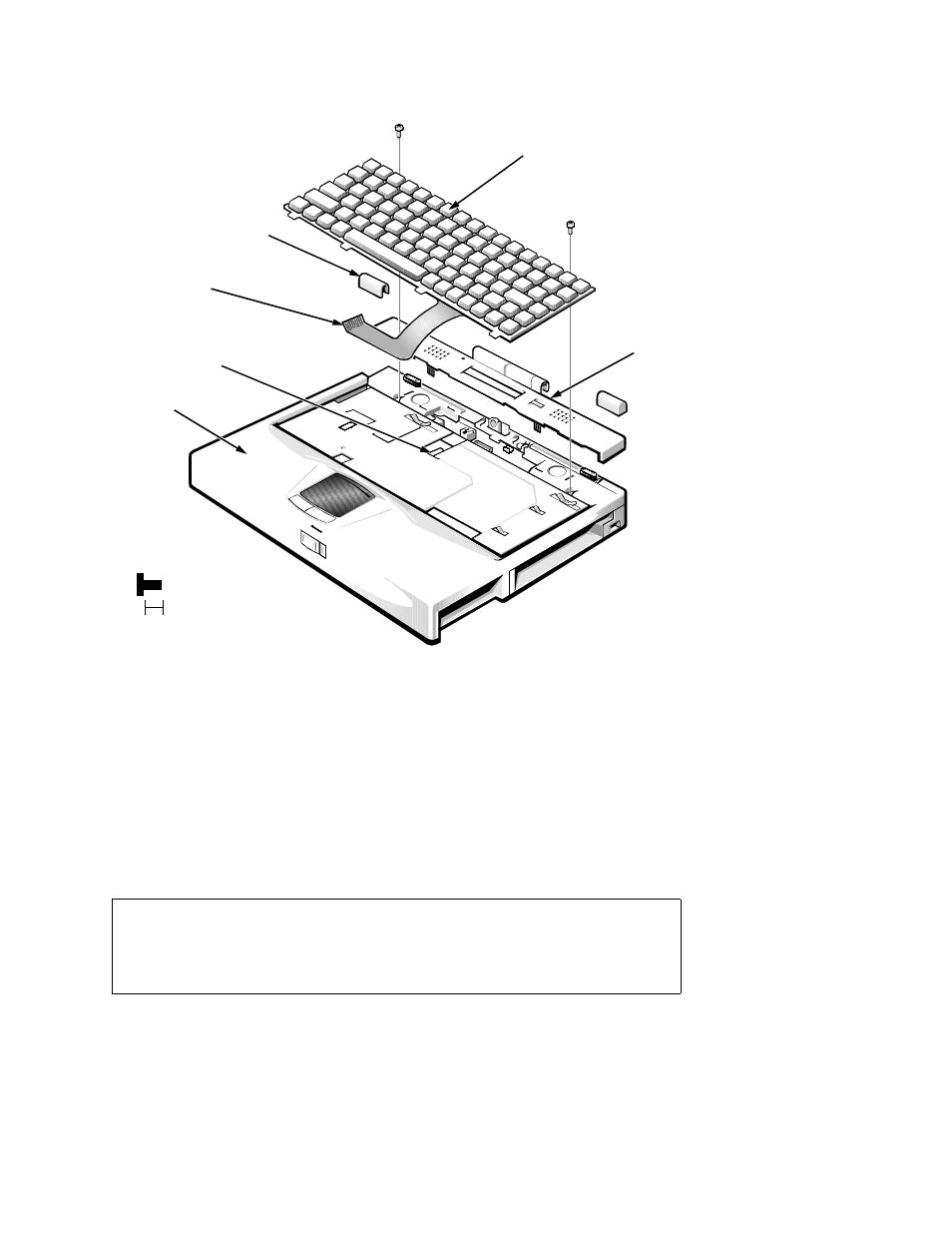

Figure 4-20. Keyboard Removal

To remove the keyboard, follow these steps:

1. Remove the hinge covers.

If the hinge covers are tight, use a plastic wedge or scribe to loosen them.

2. Remove the connector cover.

Start from the right side and gently pry the connector cover from the
computer.

CAUTION: When reinstalling the connector cover, be sure the rout-
ing of the I/R cable (see Figure 4-22) is correct. If the wires of the I/R
cable are not replaced correctly, in relation to the tabs of the connec-
tor cover, future removal of the cover may not be possible.

hinge covers (2)

keyboard cable

ZIF connector

(screws K1 and
K2 are 4 mm)

palmrest

connector
cover

keyboard

4 mm
