Stand
Dell Studio One 19/1909 Service Manual
Removing the Stand
1.
Follow the procedures in
Before You Begin
.
2.
Remove the computer cover (see
Removing the Computer Cover
).
3.
Remove the shield (see
Removing the Shield
).
4.

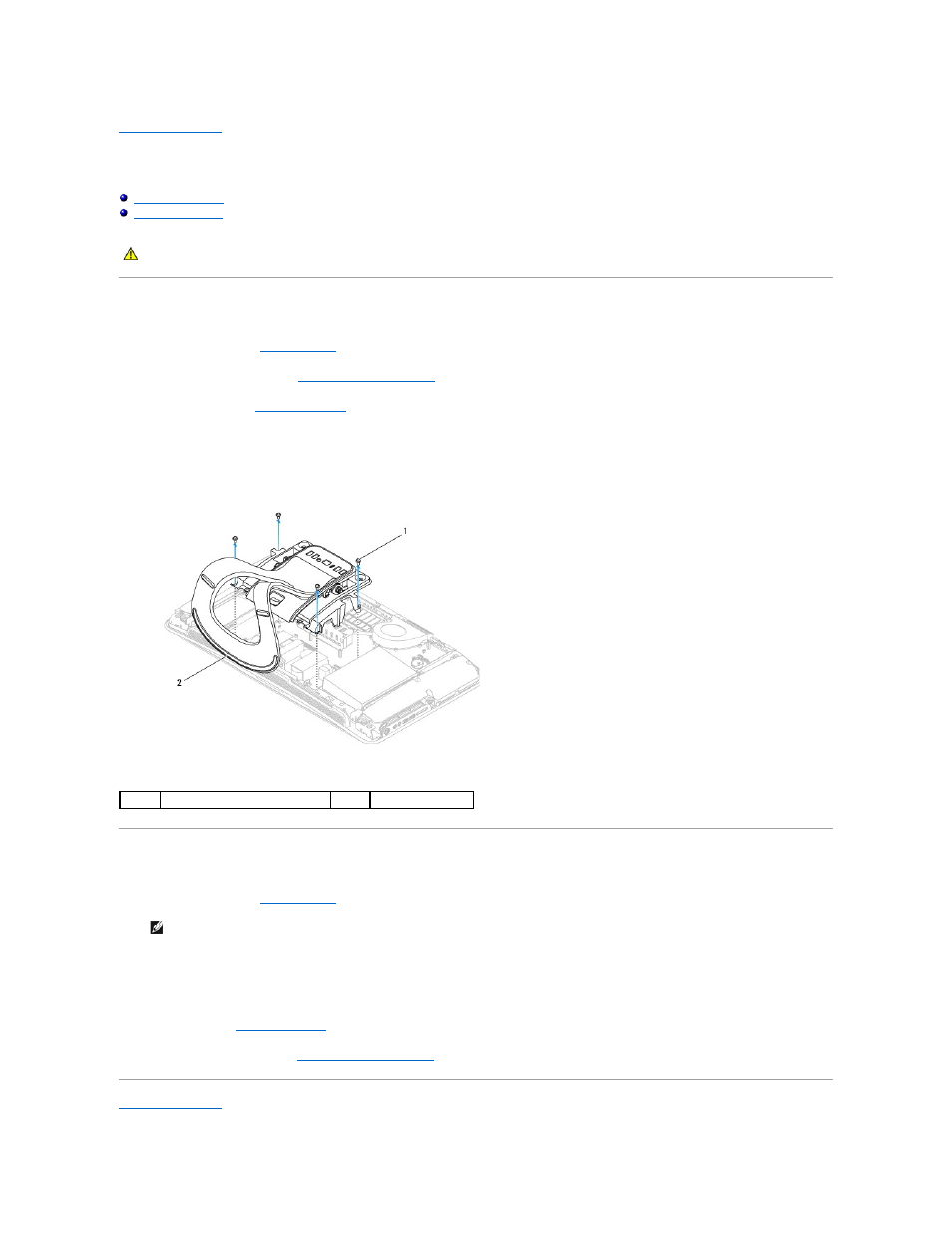

Remove the four screws securing the stand.
5.
Lift the stand away from the computer.
Replacing the Stand
1.
Follow the procedures in
Before You Begin
.
2.
To replace the stand, align the screw holes on the stand with the screw holes on the chassis.
3.
Replace the four screws that secure the stand.
4.
Replace the shield (
Replacing the Shield
).
5.
Replace the computer cover (see
Replacing the Computer Cover
).
Back to Contents Page
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
1
screws (4)
2
stand
NOTE:
Ensure that you remove the labels from the existing stand and fix them on the new stand.
