Battery latch – Dell Latitude D830 (Early 2007) User Manual
Page 3

Back to Contents Page
Battery Latch
Dell™ Latitude™ D830 Service Manual
1.
Follow the procedures in
Before You Begin
.
2.
Remove the hard drive (see
Hard Drive
).
3.
Remove the hinge cover (see
Hinge Cover
).
4.
Remove the keyboard (see
Keyboard
).
5.
Remove the display assembly (see
Removing the Display Assembly
).
6.
Remove the palm rest (see
Palm Rest
).
7.
Remove the processor thermal-cooling assembly (see
Processor Thermal-Cooling Assembly
).
8.
Remove the system board (see
Removing the System Board
).
9.

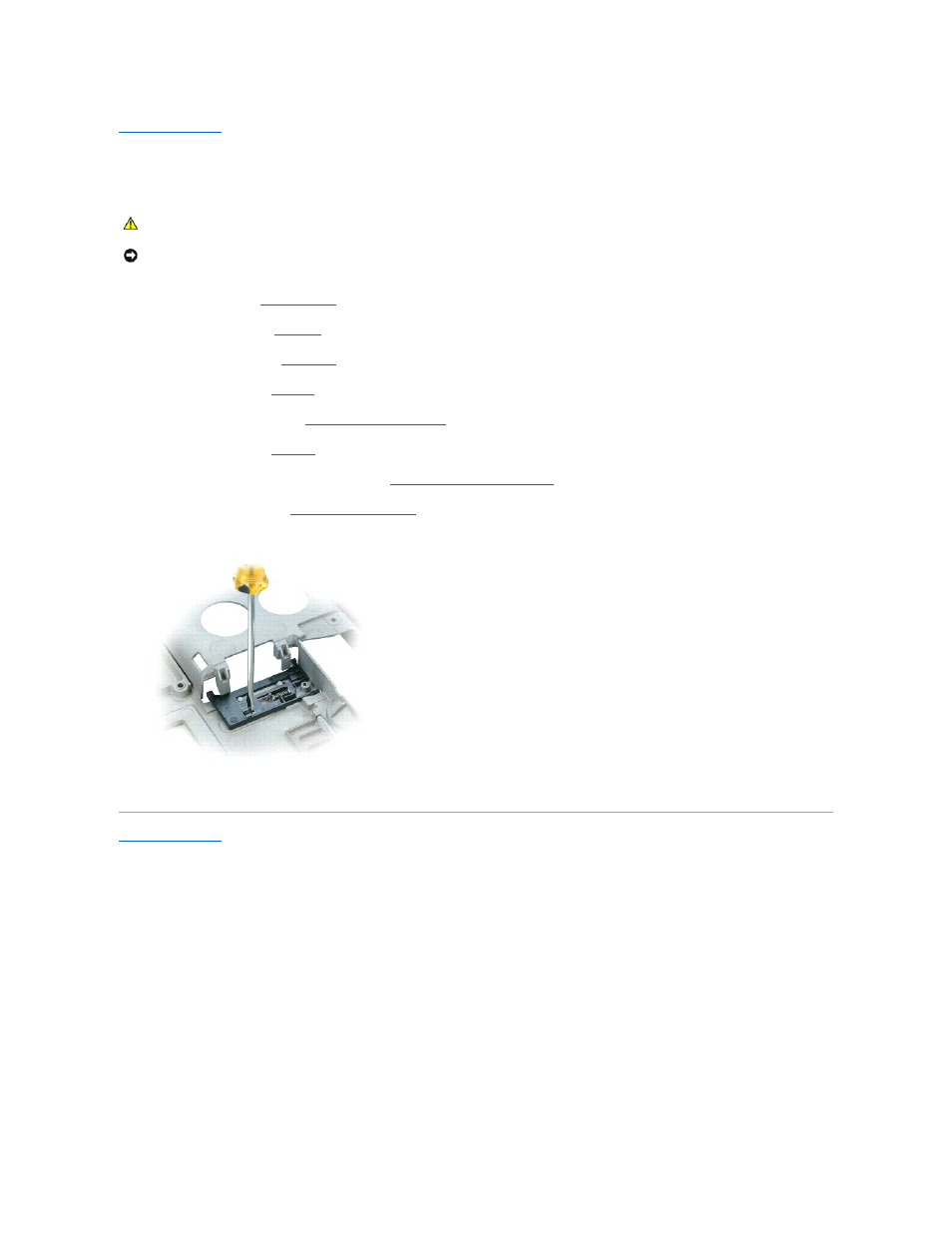

To remove the battery latch, use a plastic scribe or screwdriver to carefully dislodge the battery latch from the base, and lift the latch away.
Back to Contents Page
CAUTION:
Before performing the following procedures, follow the safety instructions in the Product Information Guide.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching a connector on the back
panel of the computer.
