About Your System
15
Back-Panel Features and Indicators
Figure 1-3 shows the controls, indicators, and connectors located on the back
panel of the system.

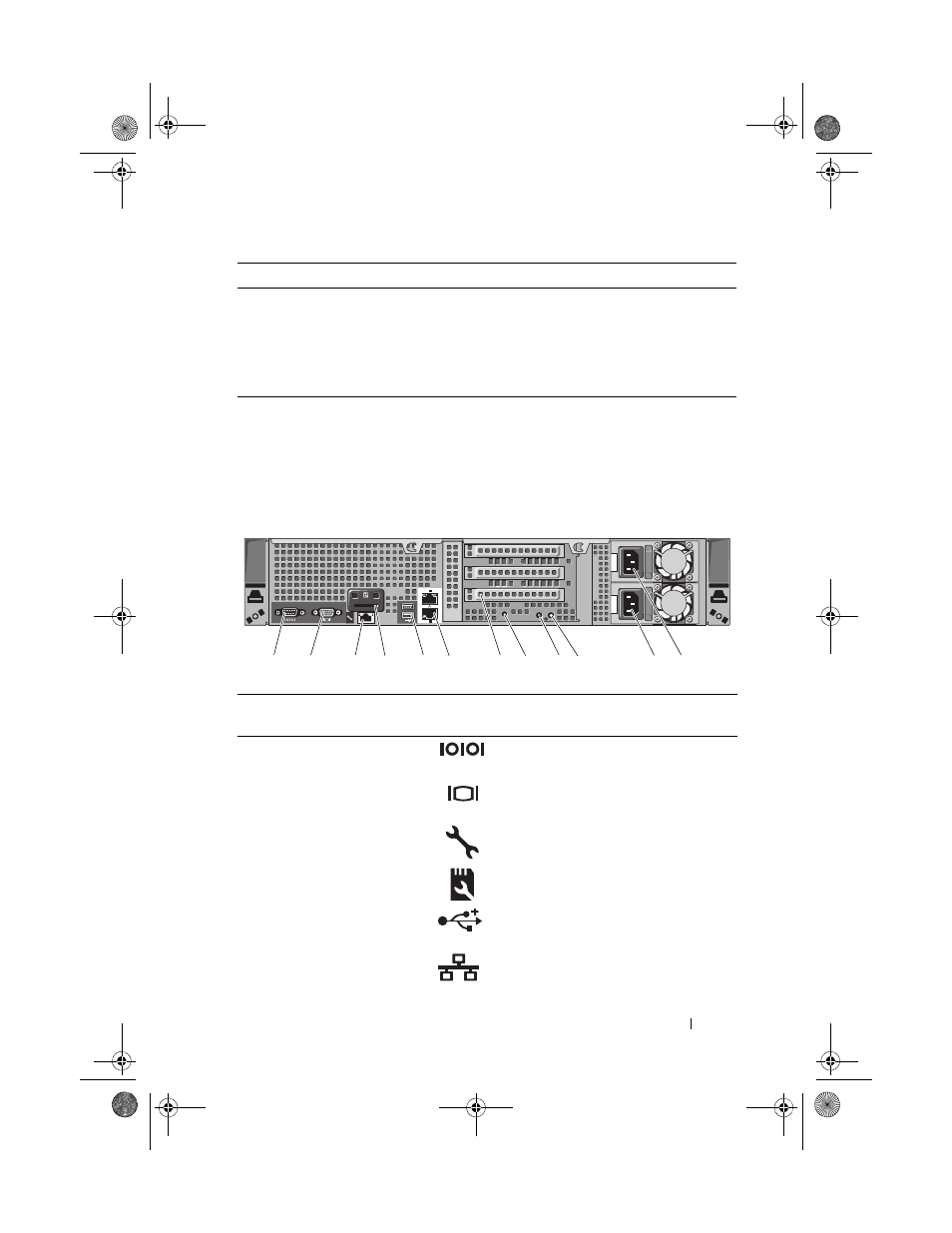

Figure 1-3. Back-Panel Features and Indicators
Blinks green slowly Drive rebuilding
Steady green Drive online
Blinks green three seconds, off three
seconds, amber three seconds, and off
three seconds Rebuild aborted
Item Indicator, Button, or
Connector Icon Description
1 Serial connector Connects a serial device to the system.
2 Video connector Connects a VGA display to the system.
3 iDRAC6 Enterprise
port (optional) Dedicated management port for the
optional iDRAC6 Enterprise card.
4 VFlash media slot
(optional) Connects an external SD memory card
for the optional iDRAC6 Enterprise card.
5 USB connectors (2) Connect USB devices to the system.
The ports are USB 2.0-compliant.
6 Ethernet connectors (2) Embedded 10/100/1000 NIC
connectors.
Drive-Status Indicator Pattern Condition
ST
1
3
2
1
2
Gb 2
Gb 1
2 1 3 4 6 9 10 11 12 8 7 5
