Badge Back-Light Module
Dell™ Studio XPS™ 9100 Service Manual
Removing the Badge Back-Light Module
Replacing the Badge Back-Light Module
Removing the Badge Back-Light Module
1. Follow the instructions in Before You Begin .
2. Remove the computer cover (see Removing the Computer Cover ).
3. Remove the front bezel (see Removing the Front Bezel ).
4. Remove the two screws that secure the hinge to the front bezel.
5. Pull the hinge away from the front bezel.
6. Remove the badge back-light cable from the securing tabs.
7. Press the tabs away from the badge back-light module and pull the badge back-light module away from the front bezel.
Replacing the Badge Back-Light Module
1. Follow the instructions in Before You Begin .
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™
is not covered by your warranty.

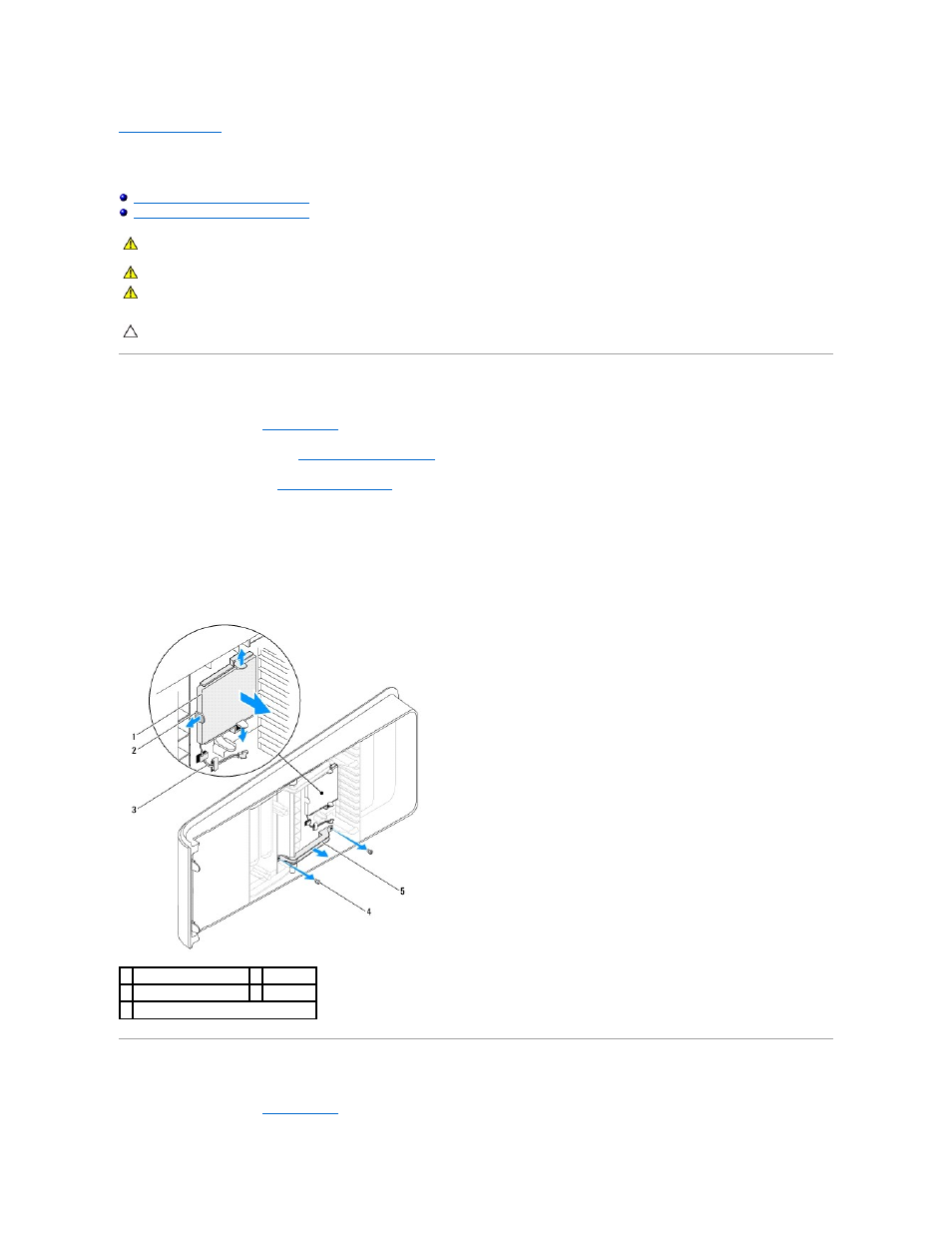

1 badge back-light module 2 tabs (3)
3 badge back-light cable 4 screws (2)
5 hinge
