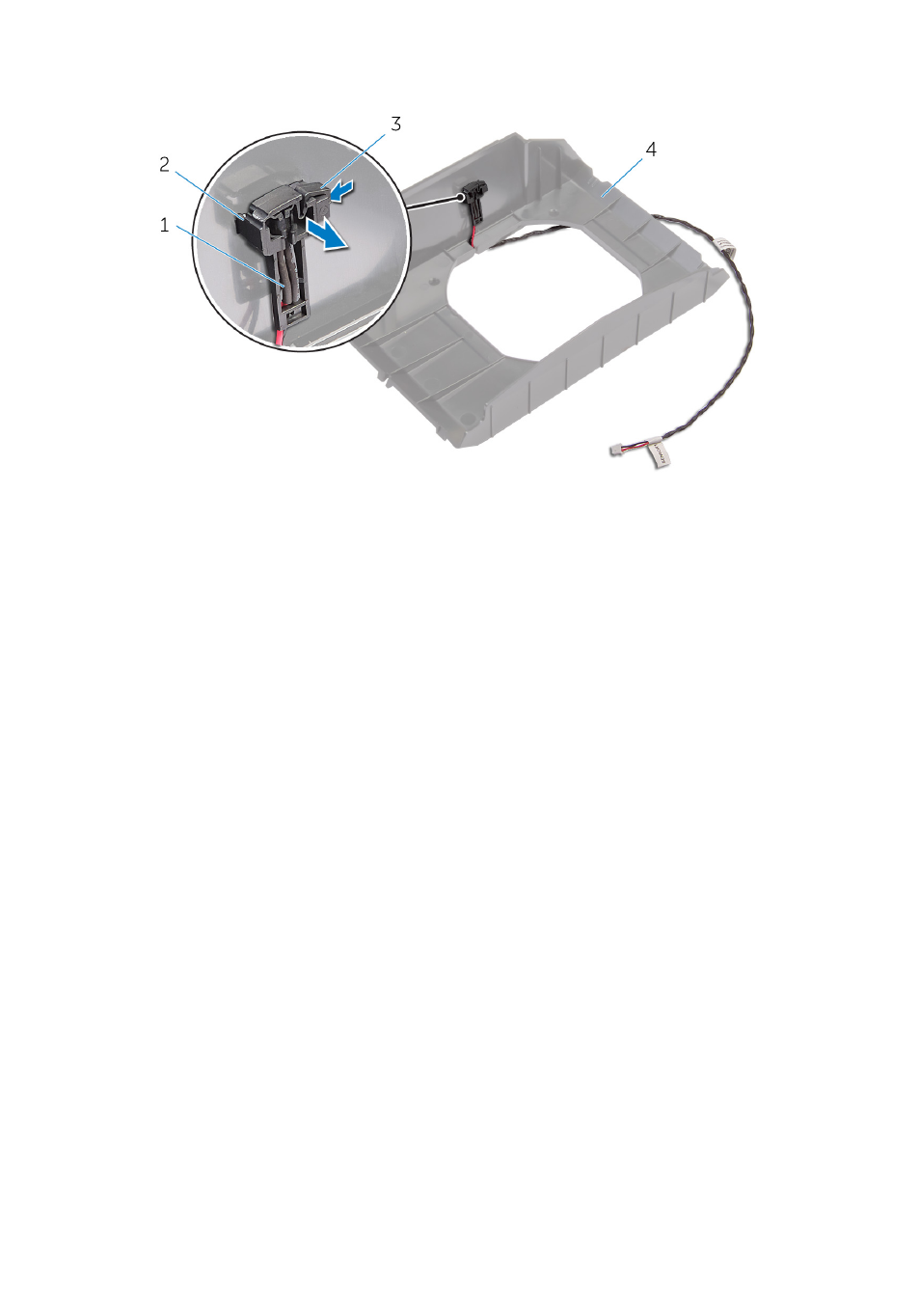

4 Slide the chassis heat-sensor cable out of the bracket.

1

chassis heat-sensor cable

2

securing clip

3

release tab

4

fan shroud
