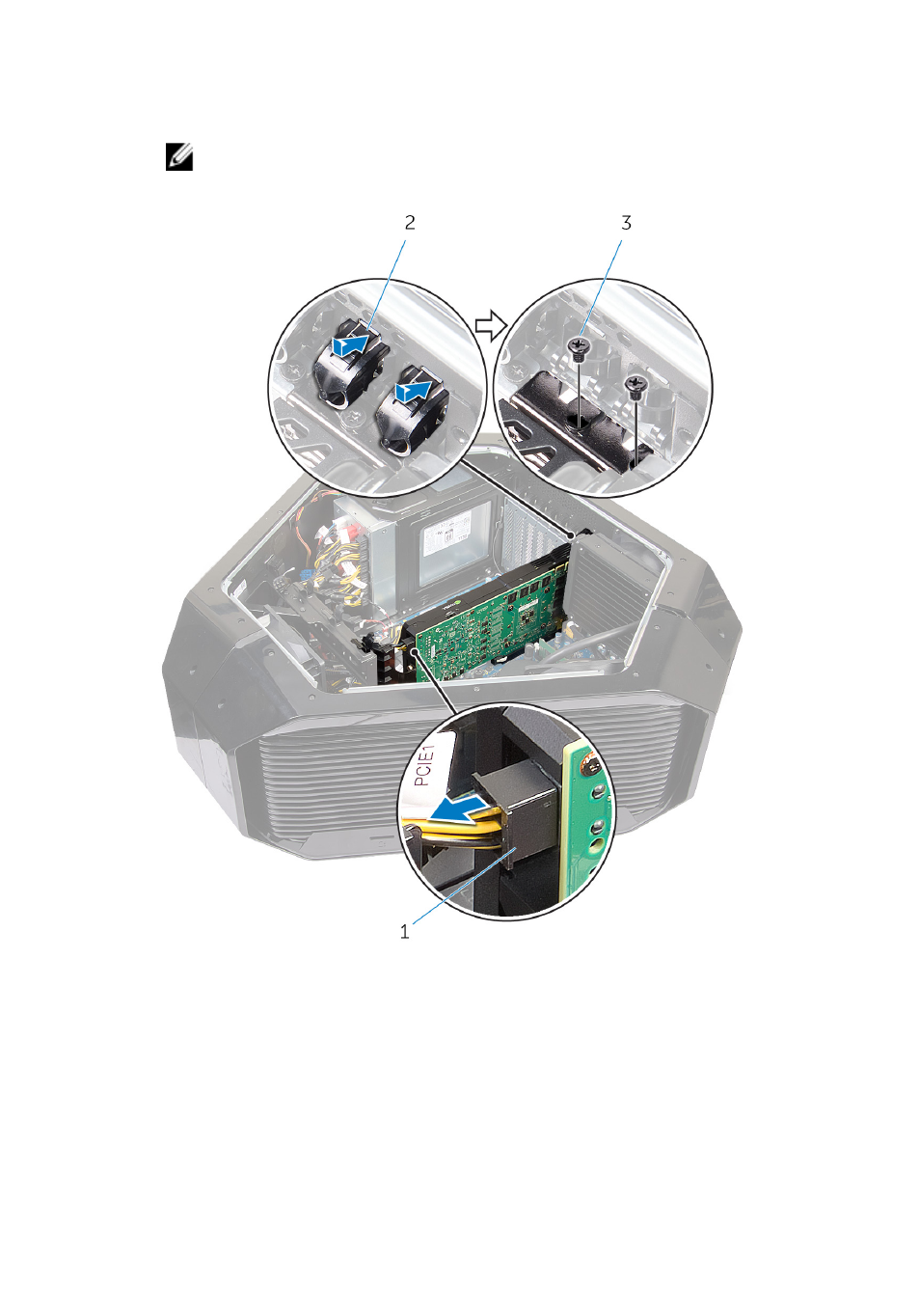

7 Press the releasing clips on the power-cable connectors to disconnect the

power cables from the graphics card.

NOTE: The location of the power supply connector varies depending
on the video card installed.

1

screw cover

2

screws (2)

3

power cables (2)
