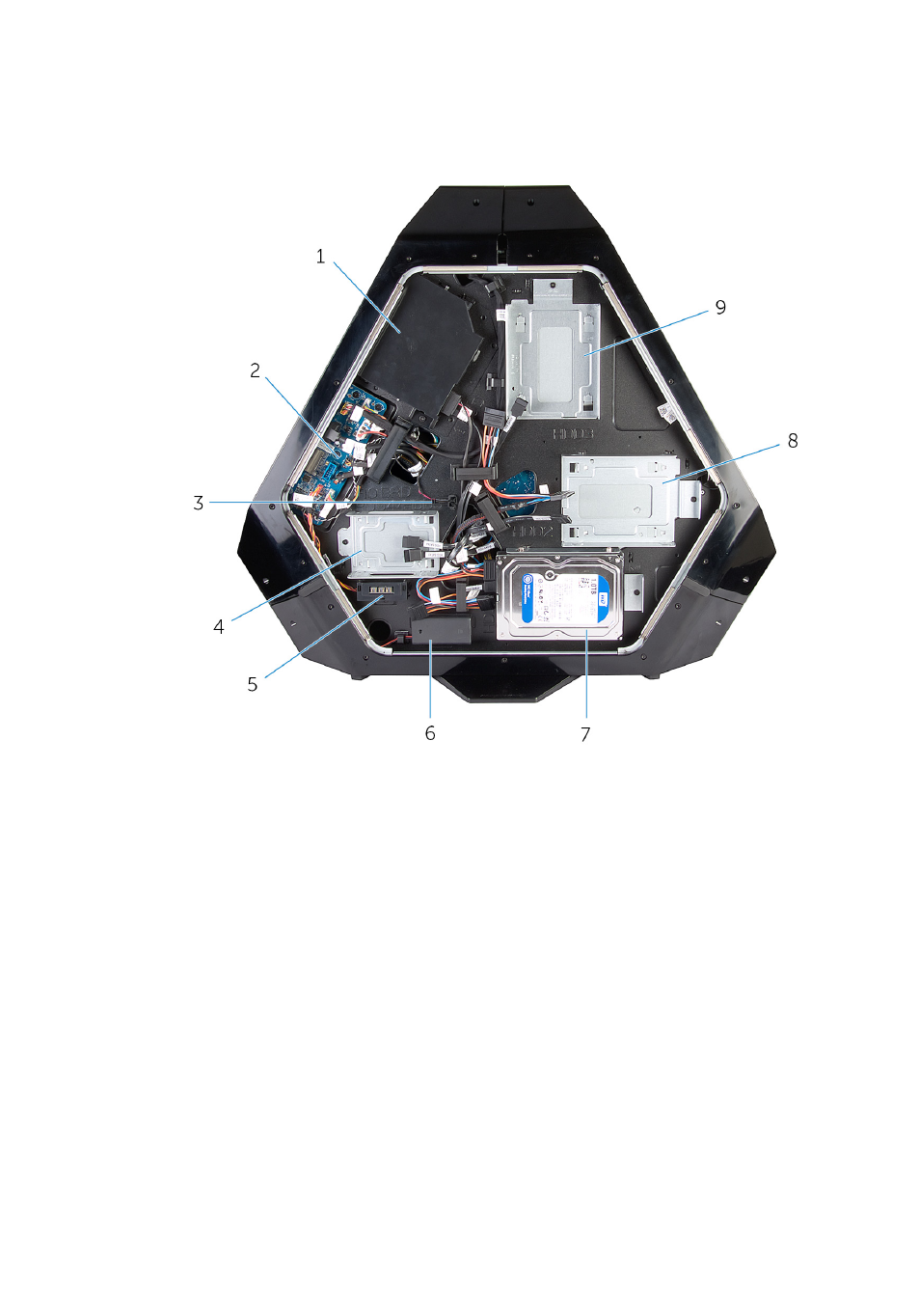

Left View

1

optical drive (ODD)

2

I/O board (IO BRD)

3

drive-bay heat-sensor

4

2.5 inch drive bracket (HDD4/
HDD5)

5

AlienFX side-panel connector

6

rear I/O accessibility lighting
batteries

7

3.5 inch drive bracket (HDD1)

8

3.5 inch drive bracket (HDD2)

9

3.5 inch drive bracket (HDD3)

16
