Adding and Replacing Parts 85
FILE LOCATION: C:\Documents and Settings\patricia_drake\Desktop\New Folder\D5016c80.fm
D E L L C O N F ID E N T IA L – P R E L IM I N A RY 3 / 1 8/ 0 4 – F O R PR O O F O N LY
If you ordered a Mini PCI card with your computer, the card is already installed.
1 If a Mini PCI card is not already installed, go to step 2. If you are replacing a Mini PCI card,
remove the existing card:
a Disconnect the Mini PCI card from any attached cables.
b Release the Mini PCI card by spreading the metal securing tabs until the card pops up
slightly.
c Lift the Mini PCI card out of its connector.
NOTICE: To avoid damaging the Mini PCI card, never place cables on top of or under the card.
NOTICE: The connectors are keyed to ensure correct insertion. If you feel resistance, check the
connectors and realign the card.

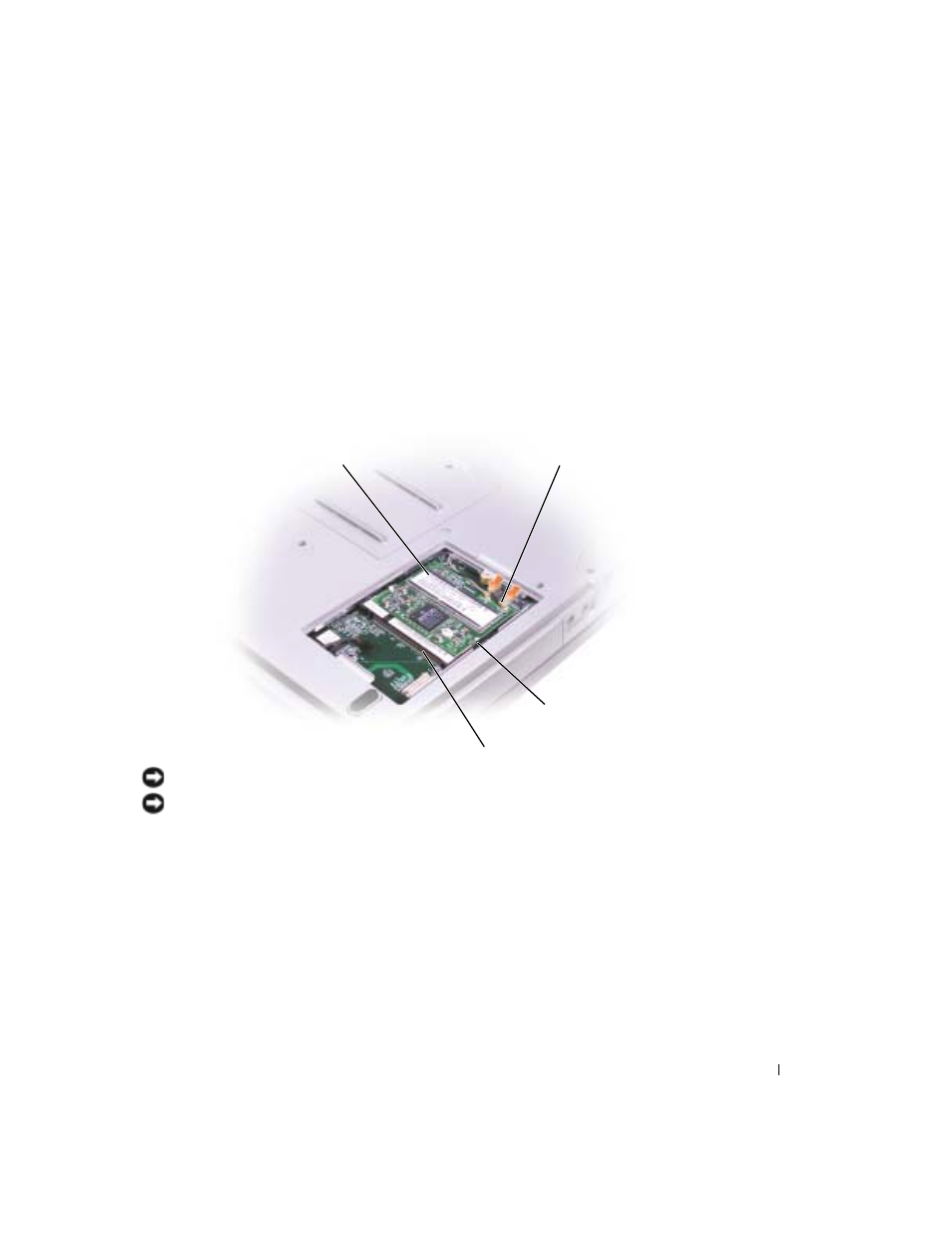

Mini PCI card
Mini PCI card connector
antenna cables (2)
metal securing tabs (2)
