Replacing the modem – Dell Latitude 100L User Manual
Page 83
Adding and Replacing Parts
83
FILE LOCATION: C:\Documents and Settings\patricia_drake\Desktop\New Folder\D5016c80.fm
D E L L C O N F ID E N T IA L – P R E L IM I N A RY 3 / 1 8/ 0 4 – F O R PR O O F O N LY
3
Continue to the appropriate section:
• To add a modem, see the following section, "Replacing the Modem."
• To add a Mini PCI card, see page 84.
Replacing the Modem
1
Remove the existing modem:
a
Remove the screws securing the modem to the system board, and set them aside.
b
Pull straight up on the attached pull-tab to lift the modem out of its connector on the
system board and disconnect the modem cable.

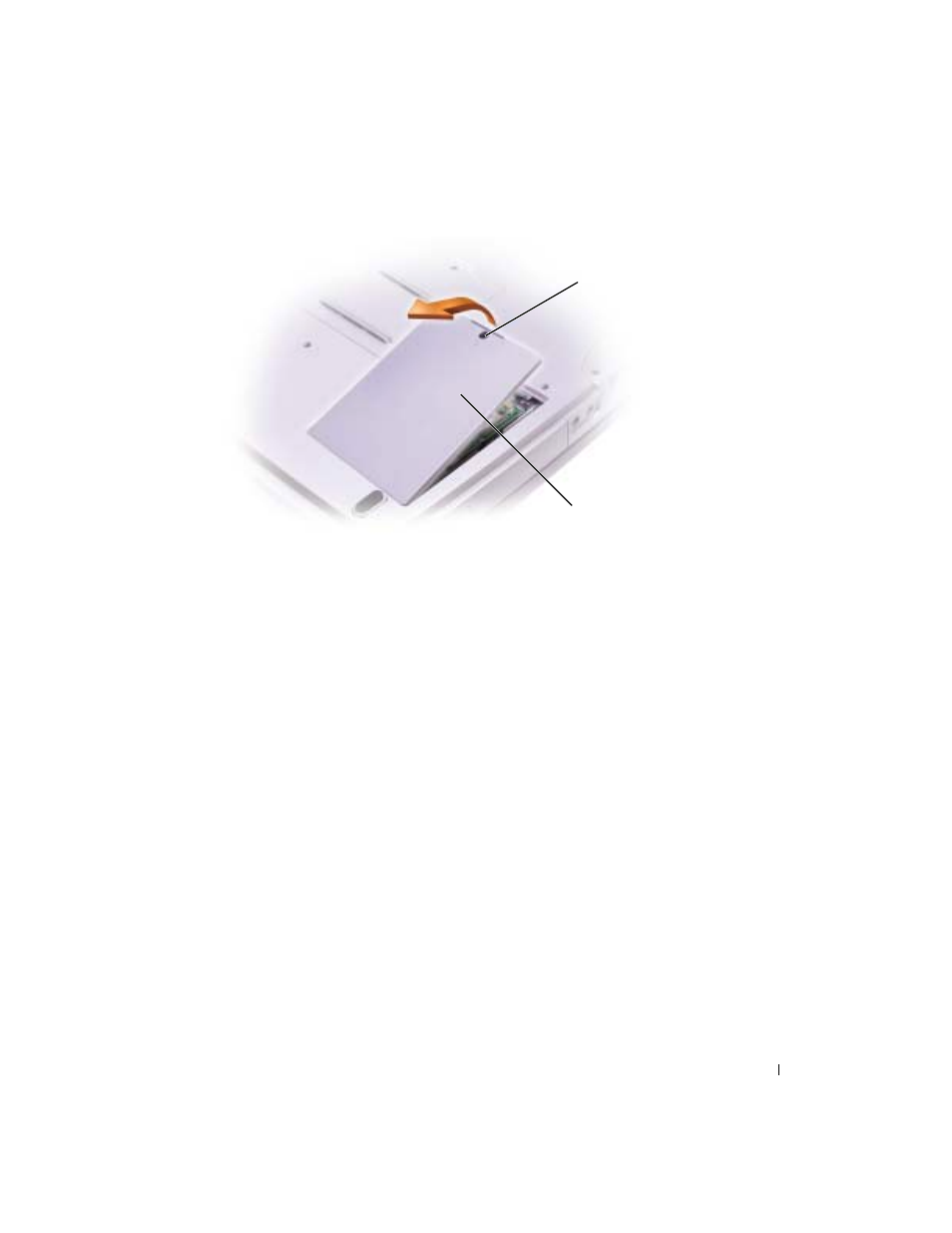

captive screw
modem/Mini PCI
card cover
