USB and SIM Card Board (Daughter Board 2)
Dell™ Inspiron™ 1010 Service Manual
Removing the USB and SIM Card Board
Replacing the USB and SIM Card Board
Removing the USB and SIM Card Board
1. Follow the instructions in Before You Begin .
2. Remove the battery (see Removing the Battery ).
3. Remove the keyboard (see Removing the Keyboard ).
4. Remove the palm rest (see Removing the Palm Rest ).
5. Remove the hard drive (see Removing the Hard Drive ).
6. Remove the palm rest bracket (see Removing the Palm Rest Bracket ).
7. Remove the three screws that secure the USB and SIM card board to the computer base.
8. Lift the USB and SIM card board out of the computer base.
Replacing the USB and SIM Card Board
1. Align the holes on the USB and SIM card board to the protrusions on the computer base.
2. Replace the three screws to secure the USB and SIM card board to the computer base.
3. Replace the palm rest bracket (see Replacing the Palm Rest Bracket ).
4. Replace the hard drive (see Replacing the Hard Drive ).
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™
is not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery ) before working inside the
computer.

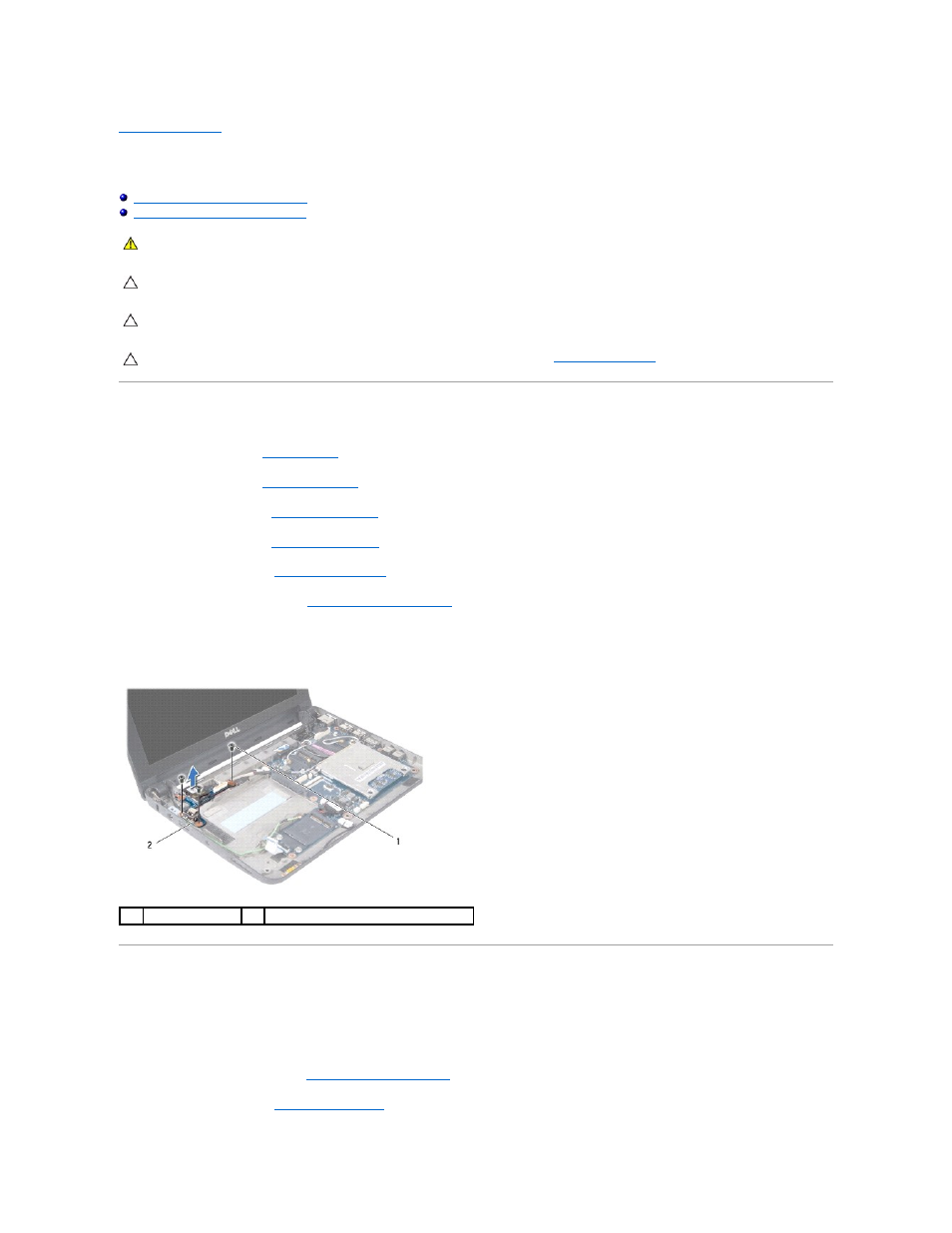

1 screws (3) 2 USB and SIM card board
