System Board
Dell™ Inspiron™ 1010 Service Manual
Entering the Service Tag in the BIOS

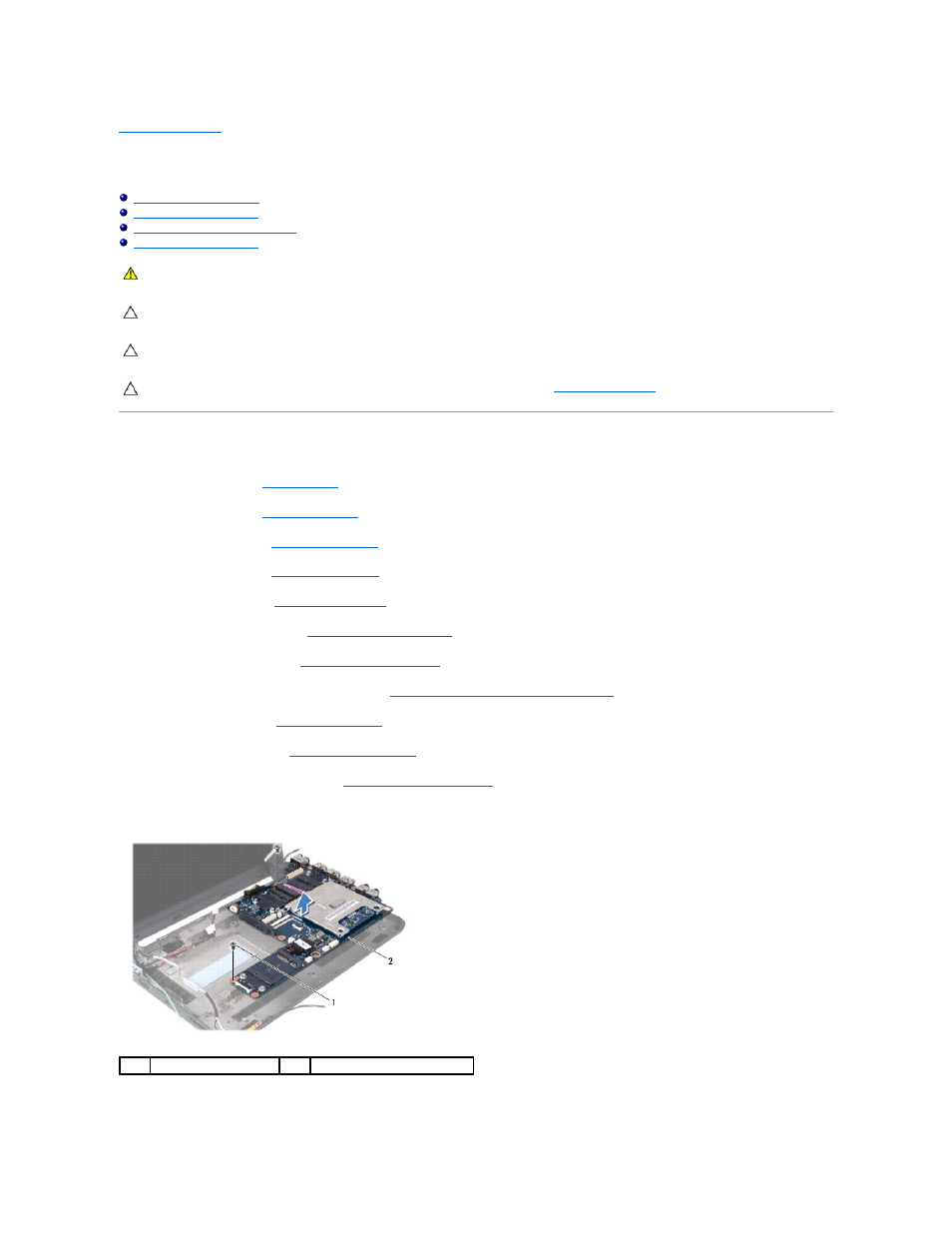

Removing the System Board
1.
Follow the instructions in
Before You Begin
.
2.
Remove the battery (see
Removing the Battery
).
3.
Remove the keyboard (see
Removing the Keyboard
).
4.
Remove the palm rest (see
Removing the Palm Rest
).
5.
Remove the hard drive (see
Removing the Hard Drive
).
6.
Remove the palm rest bracket (see
Removing the Palm Rest Bracket
).
7.
Remove the coin-cell battery (see
Removing the Coin-Cell Battery
).
8.
Remove the 2-in-1 memory and processor board (see
Removing the 2-in-1 Memory and Processor Board
).
9.
Remove the Mini-Cards (see
Removing the Mini-Card
).
10.
Remove the TV tuner card (see
Removing the TV Tuner Card
).
11.
Remove the 3-in-1 Media Card Reader (see
Removing the Media Card Reader
).
12.
Remove the two screws that secure the system board to the computer base.
13.
Lift the system board out of the computer base.
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface.
CAUTION:
Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™
is not covered by your warranty.
CAUTION:
To help prevent damage to the system board, remove the main battery (see
Removing the Battery
) before working inside the
computer.
1
screws (2)
2
system board
