About Your System 9
Front-Panel Indicators and Features
Figure 1-2 shows the LED indicators and components on the enclosure’s front panel (optional locking bezel
not shown). Table 1-2 lists the conditions and functions indicated by each.

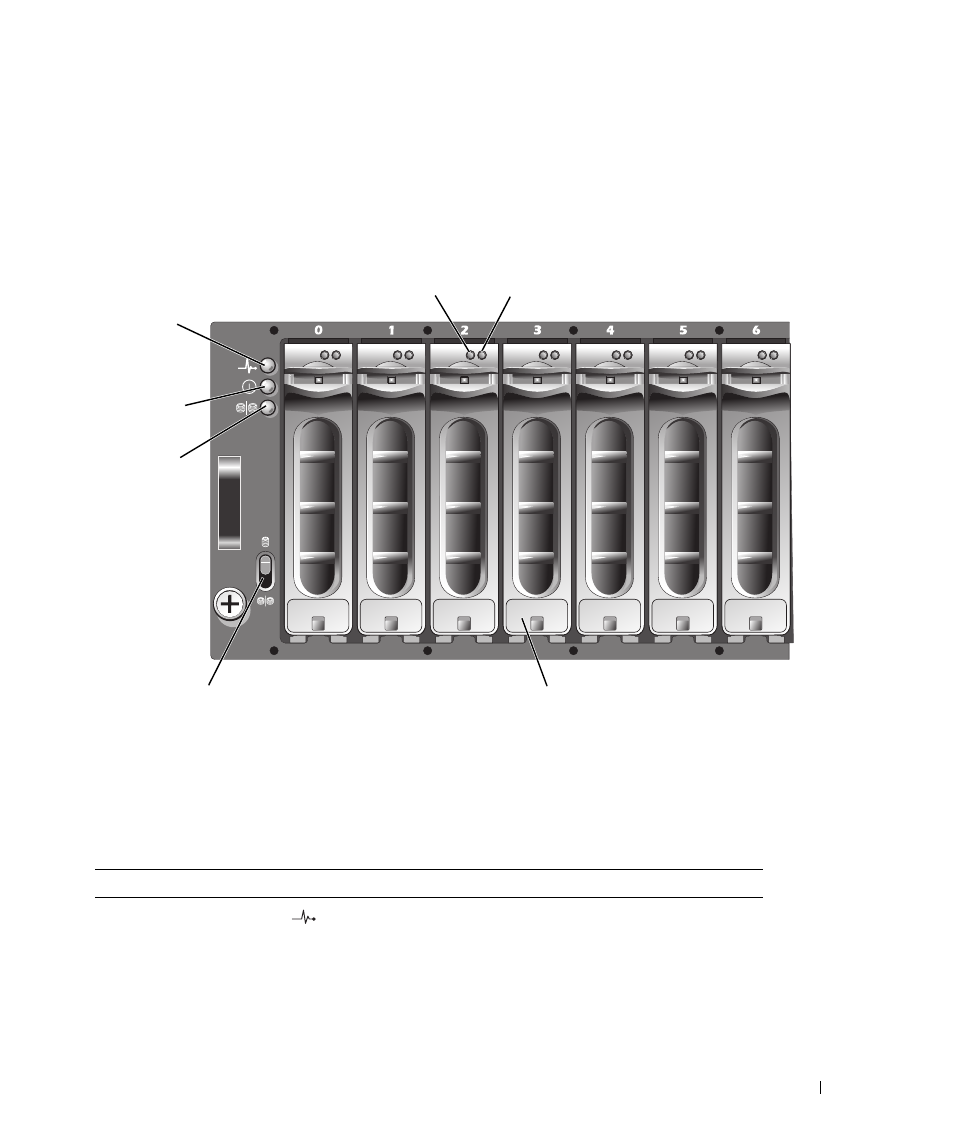

Figure 1-2. Front-Panel Features
1 enclosure status LED 4 power LED 7 drives (15)
2 drive activity LED 5 split mode LED
3 drive status LED 6 enclosure mode switch
Table 1-2. Front-Panel Components
Component Icon Condition
Enclosure status LED
(blue/amber)
Steady amber: Power is on and enclosure is in reset state
Steady blue: Power is on and enclosure status is OK.
Flashing blue: Host server is identifying the enclosure.
Flashing amber: Enclosure is in fault state.
1
4
5
3 2
6 7
