Installing Enclosure Components 43
5 Slide the EMM/power supply cage out of the enclosure and place it aside.
6 Reaching into the enclosure chassis from the back, carefully disconnect the midplane from the control
panel and lift it out of the enclosure. (See Figure 3-10.)
7 To re-install the midplane, reverse the previous steps.

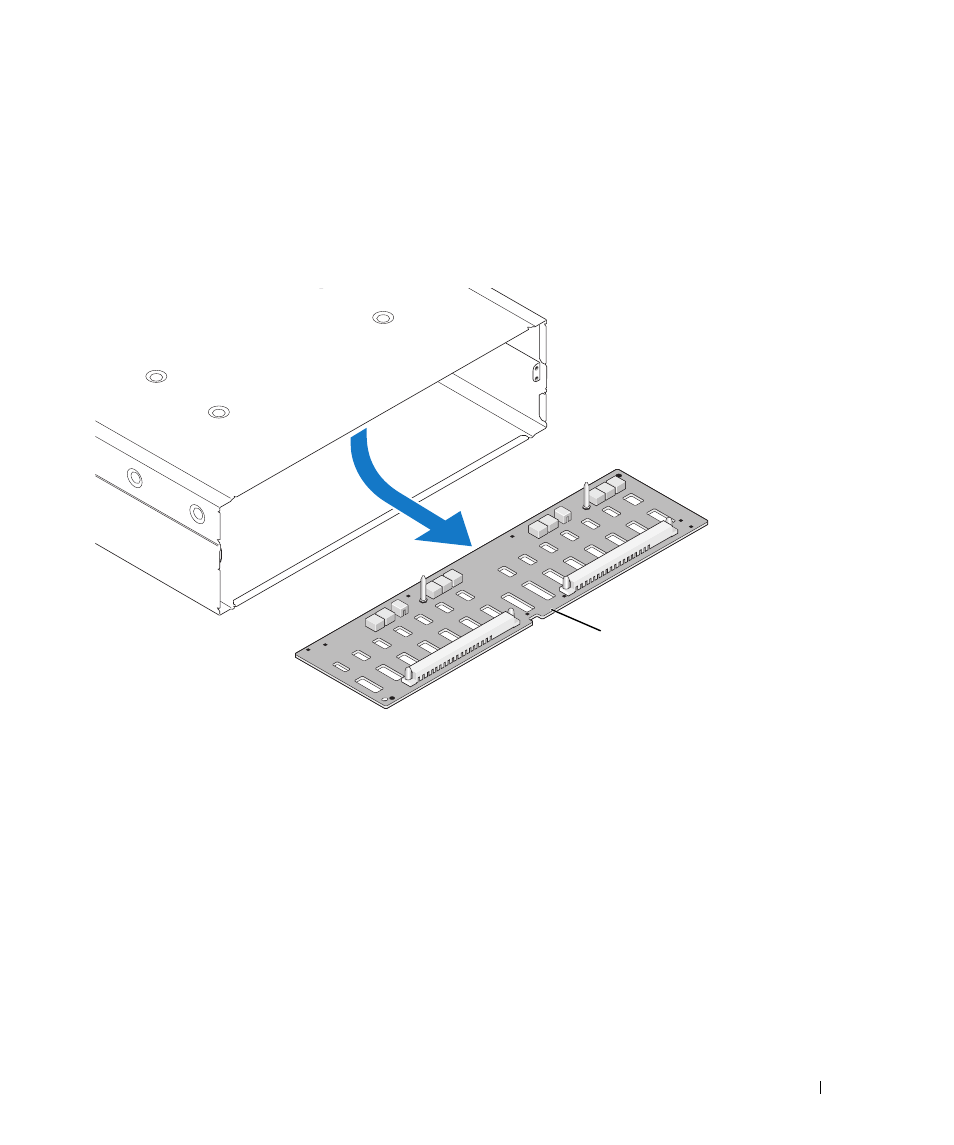

Figure 3-10. Removing and Installing the Midplane
1 midplane
1
