72 | Removing the Antenna Modules
Procedure
1 Disconnect the wireless-antenna cables from the wireless mini-card.
2 Note the routing of the antenna cables and remove the cables from the
routing guides.
3 Peel the antennas modules off the display bezel.
4 Lift the antenna modules out of the display bezel.

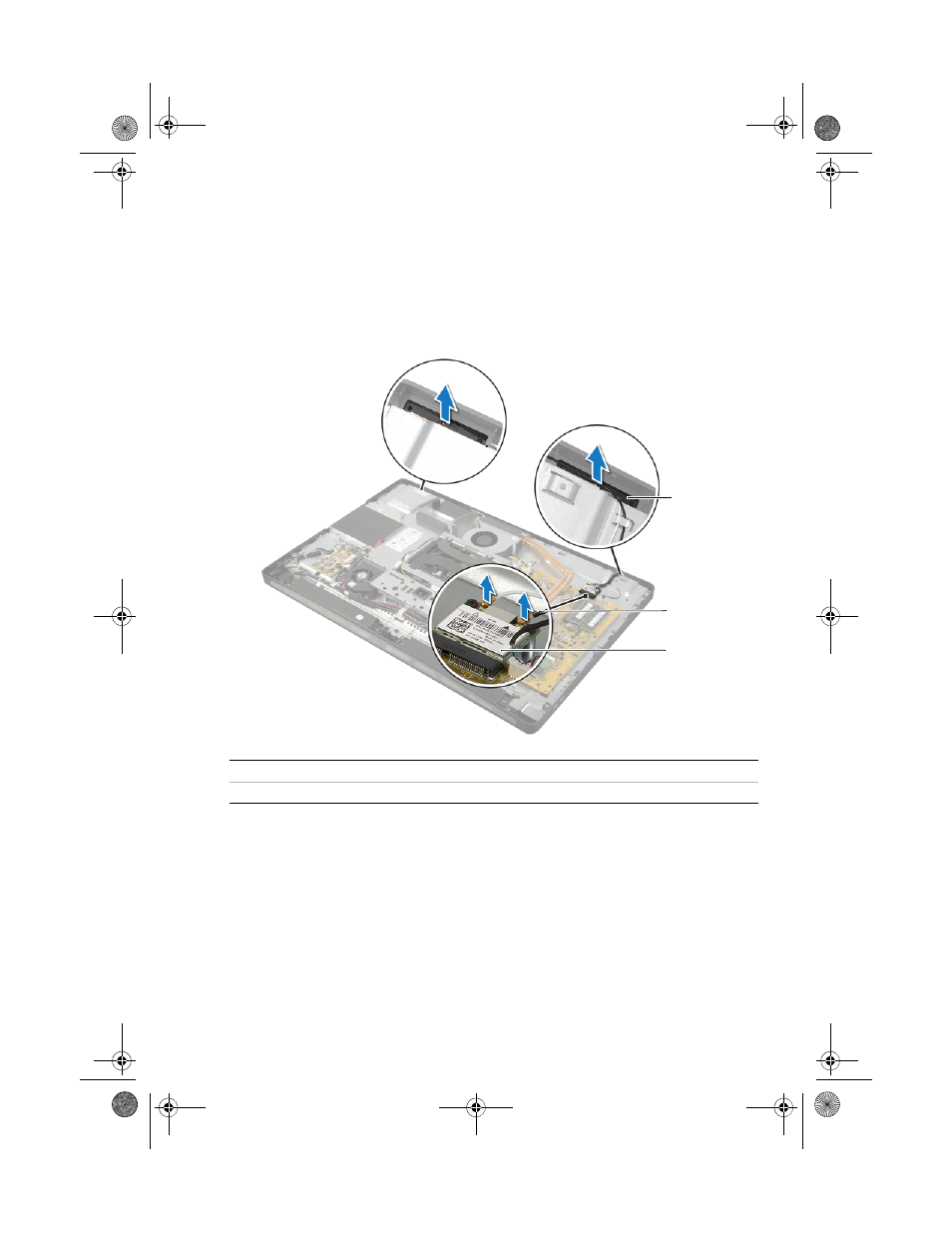

1 antenna modules (2) 2 antenna cables (2)
3 wireless mini-card
