44 | Removing the Wireless Mini-Card
Removing the Wireless Mini-Card
WARNING: Before working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before You Begin" on
page 11. After working inside your computer, follow the instructions in "After
Working Inside Your Computer" on page 13. For additional safety best practices
information, see the Regulatory Compliance Homepage at
dell.com/regulatory_compliance.
Prerequisites
1 Remove the back cover. See "Removing the Back Cover" on page 17.
2 Remove the system-board shield. See "Removing the System-Board Shield" on
page 31.
Procedure
1 Locate the wireless mini-card. See "System-Board Components" on page 15.
2 Disconnect the antenna cables from the wireless mini-card.
3 Remove the screws that secure the wireless mini-card to the system board.

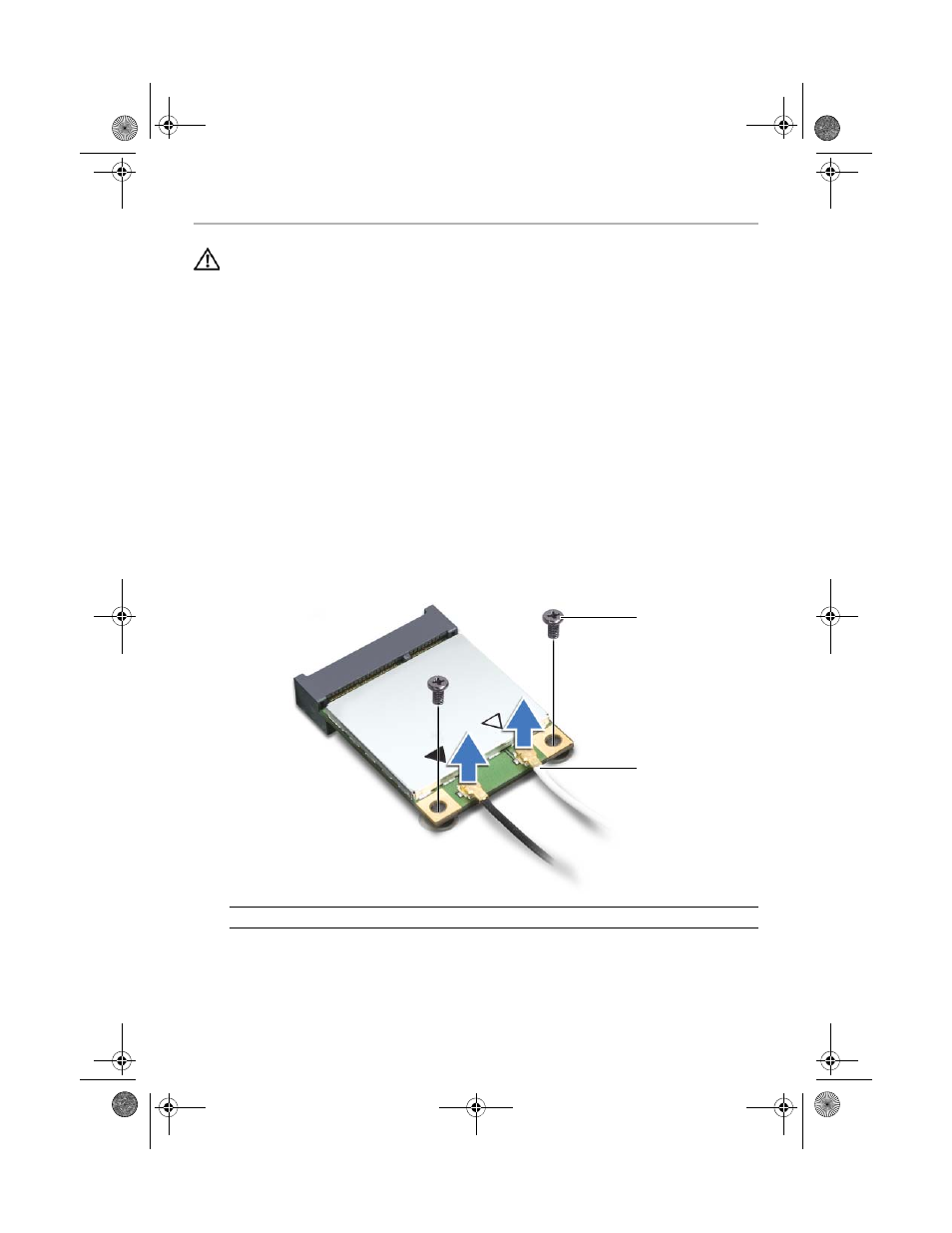

1 screws (2) 2 antenna cables (2)
1
2
