Dell Inspiron 11z (1110, Mid 2009) - Manual (Page 22)

1. Follow the procedures in Before You Begin .
2. Remove the display assembly (see Removing the Display Assembly ).
3. Remove the hinge caps (see Removing the Hinge Caps ).
4. Remove the display bezel (see Removing the Display Bezel ).
5. Remove the four screws (two on each bracket) that secure the display panel brackets to the display back cover.
6. Lift the display panel brackets off the display panel.
Replacing the Display Panel Brackets
1. Follow the procedures in Before You Begin .
2. Replace the display panel brackets.
3. Replace the four screws (two on each bracket) that secure the display panel brackets to the display back cover.
4. Replace the display bezel (see Replacing the Display Bezel ).
5. Replace the hinge caps (see Replacing the Hinge Caps ).
6. Replace the display assembly (see Replacing the Display Assembly ).
Display Panel
Removing the Display Panel
1. Follow the procedures in Before You Begin .
2. Remove the display assembly (see Removing the Display Assembly ).
3. Remove the hinge caps (see Removing the Hinge Caps ).
4. Remove the display bezel (see Removing the Display Bezel ).
5. Remove the display panel brackets (see Removing the Display Panel Brackets ).
6. Turn the display panel over, as shown in the illustration.

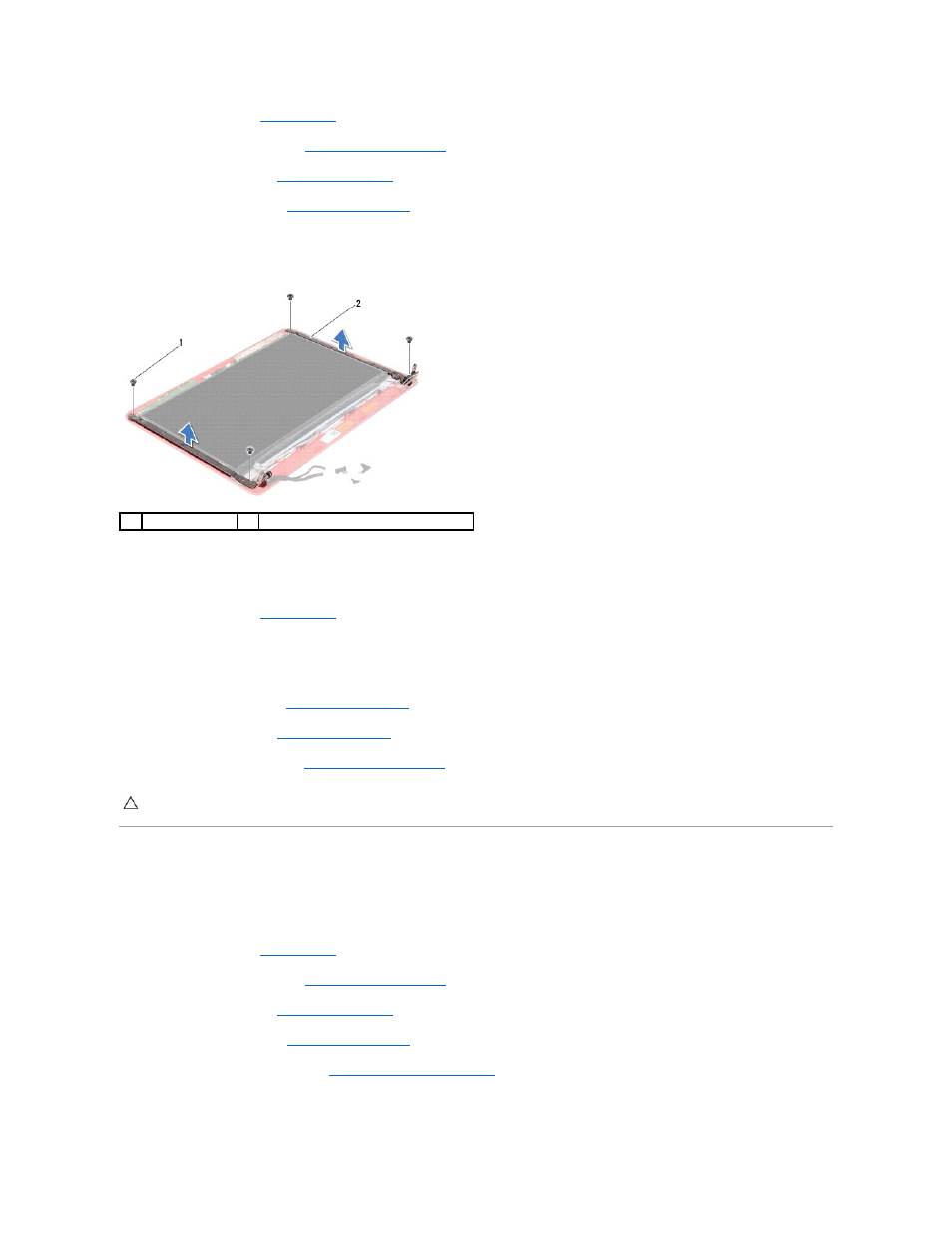

1 screws (4) 2 display panel brackets (2)
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
