LOCAL MANAGEMENT
Page 6-3
6.1.1 Console Cable Configuration
Use the RJ45 Cable Kit provided with the SEHI-ACCY-KIT package
to attach the management terminal to the SEHI’s COM port as shown
in Figure 6-1.
Connect the console cable to the SEHI as follows:
1. Attach the male RJ45 connector to the COM port of the SEHI.
2. Attach the female end (25-pin or 9-pin, as applicable) to the COMM
port on the terminal.

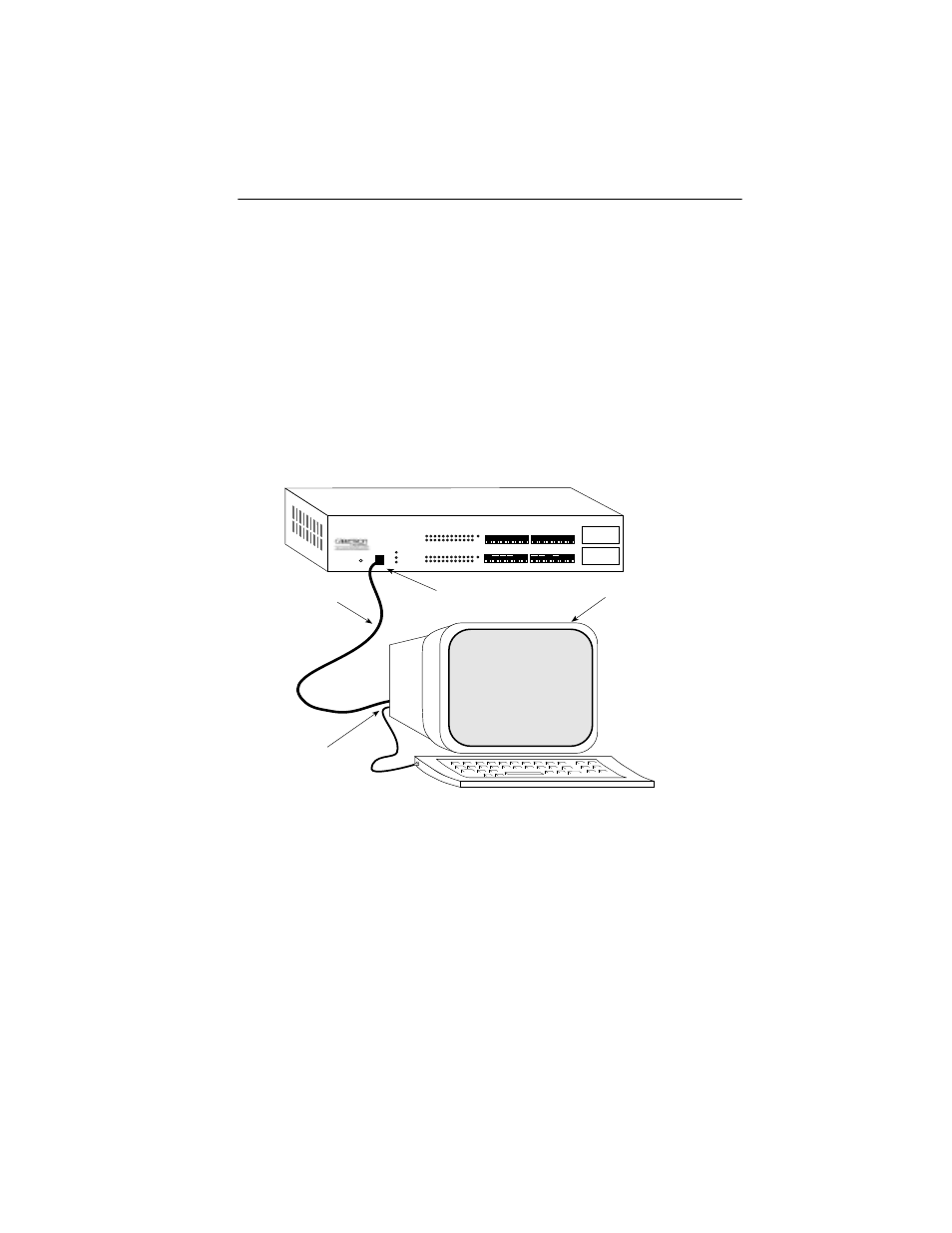

Figure 6-1. Management Terminal Connection
MANAGEMENT TERMINAL
CONSOLE CABLE
COM RJ45 PORT
COM PORT
EPIM-1
EPIM-2 HubSTACK 10BASE-T HUB WITH LANVIEW®
SEHI-24
COM
