INSTALLATION
Page 3-3
To stack the SEHI together with an SEH non-intelligent hub:
1.
Attach the SEHI HubSTACK Interconnect cable to the “OUT” port
on the rear panel of the SEHI as shown in Figure 3-1.
2.
Attach the other end of the SEHI HubSTACK Interconnect cable to
the “IN” port on the rear panel of the SEH.
To stack SEH non-intelligent hubs together.
1.
Attach the SEH HubSTACK Interconnect cable to the “OUT” port
on the rear panel of the SEH as shown in Figure 3-1.
2.
Attach the other end of the SEH HubSTACK Interconnect cable to
the “IN” port on the rear panel of the SEH next in the stack.

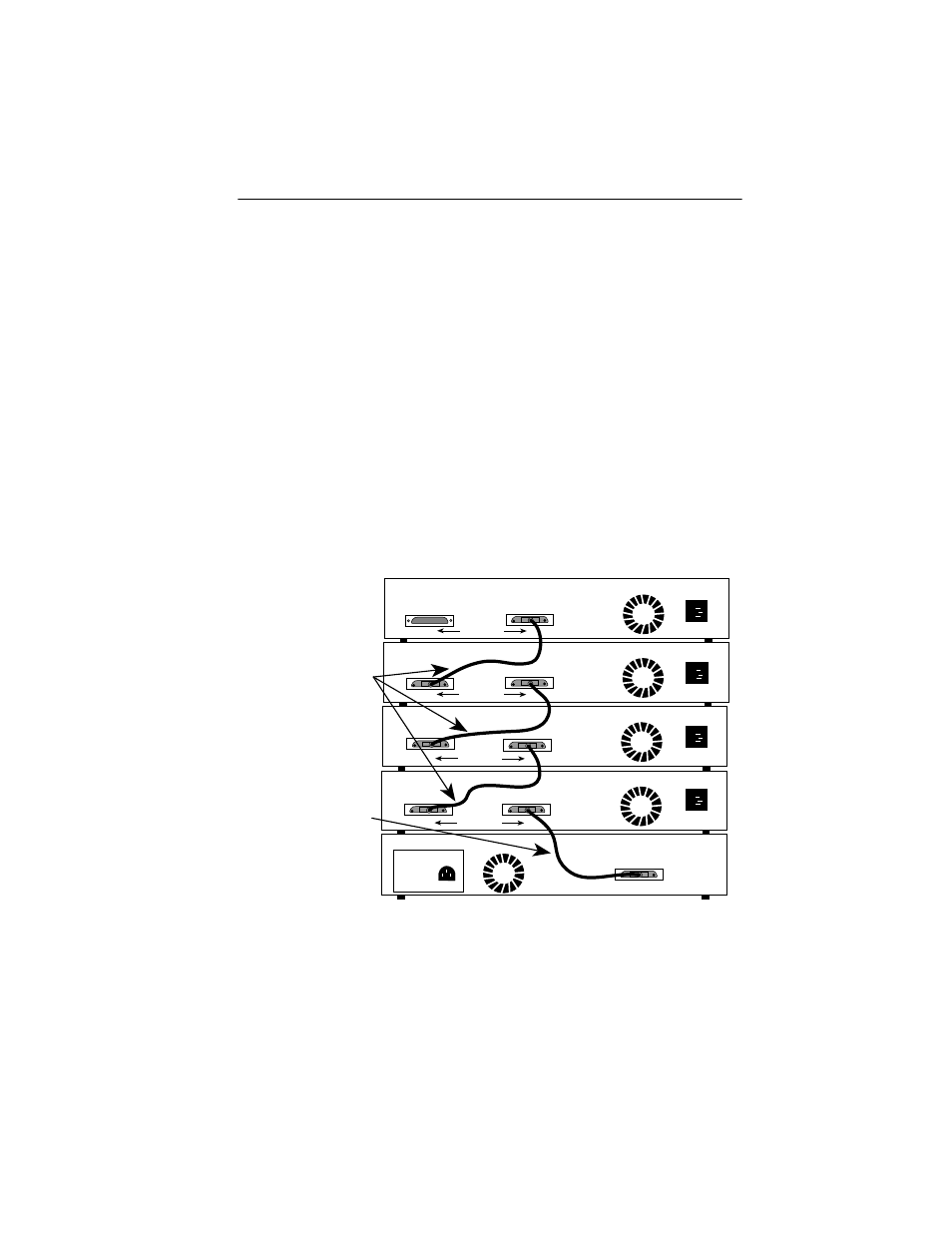

Figure 3-1. Stacking the SEHI
SEH HubSTACK
Interconnect Cables
REAR VIEW
SEHI Managing 4 SEH Non-Intelligent Hubs
SEHI HubSTACK
Interconnect Cable
SEH INTERCONNECT
OUT
SEHI-24
10BASE-T HUB
WITH
LANVIEW®
SEH-24
10BASE-T HUB
WITH
LANVIEW®
OUT
SEH INTERCONNECT
IN
SEH-24
10BASE-T HUB
WITH
LANVIEW®
OUT
SEH INTERCONNECT
IN
SEH-24
10BASE-T HUB
WITH
LANVIEW®
OUT
SEH INTERCONNECT
IN
SEH-24
10BASE-T HUB
WITH
LANVIEW®
OUT
SEH INTERCONNECT
IN
