mar345 Program Manual 2 5
______________________________________________________________________________________
4.2 Menu Bar
The menu bar features the following buttons:
Windows Pops up the Windows submenu (see 4.2.1). Shortcut: Alt+w.
Options Pops up the Options submenu (see 4.2.2). Shortcut: Alt+o.
Help Pops up the mar345−Help window.

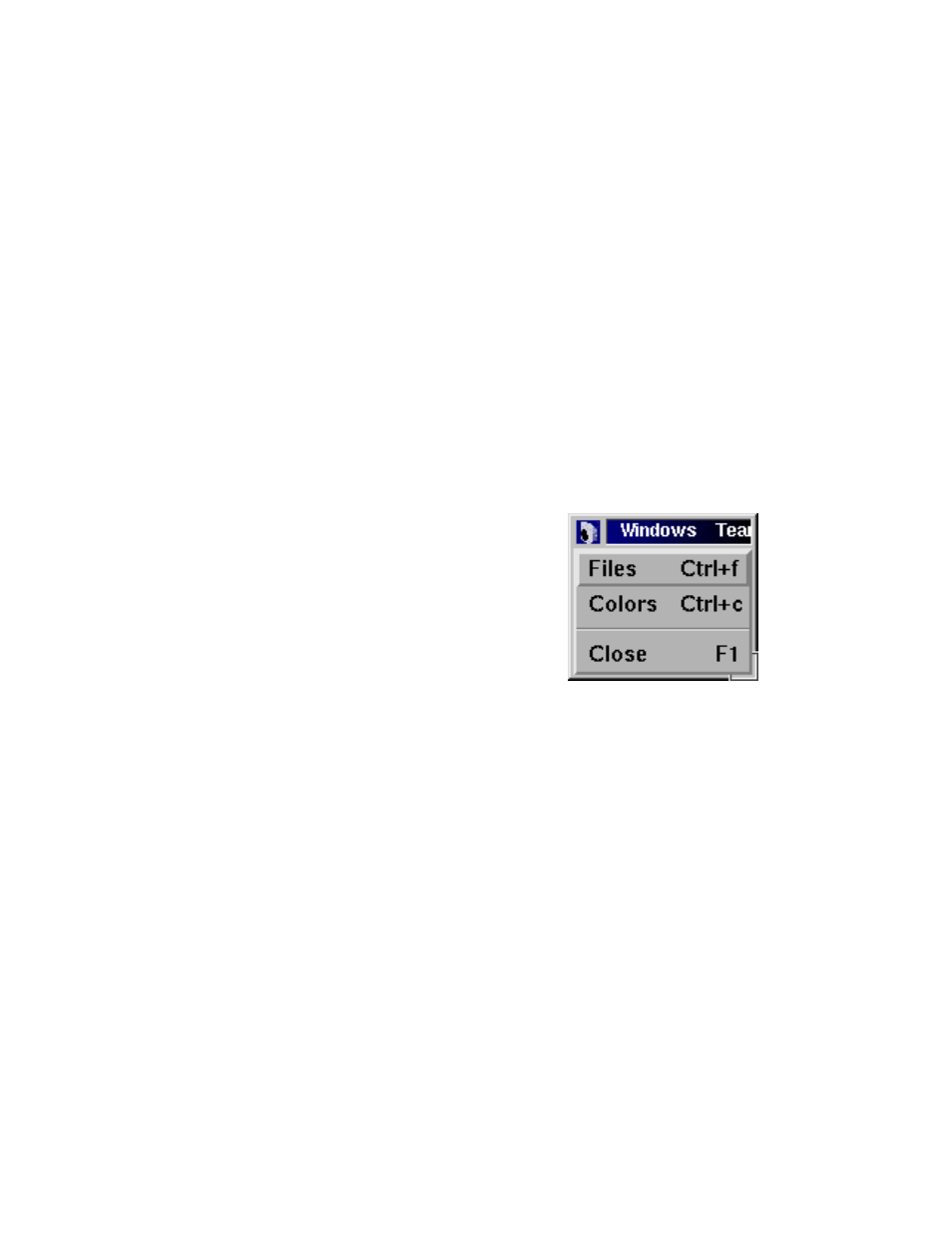

4.2.1 Windows Submenu
The Windows submenu pops up when the "Windows" button in the menu bar was pressed or
if "Alt+w" was pressed while the pointer was in the main window. The submenu is a so
called "tear−off" menu.
The Windows menu features the following buttons:
Files Pops up the mar345−Files window.
Shortcut: Ctrl+f
Colors Pops up the mar345−Colors window.
Shortcut: Ctrl+c
Close Closes the display window..
Shortcut: F1
4.2.2 Options Submenu
The Options submenu pops up when the "Options" button in the menu bar was pressed or if
"Alt+o" was pressed while the pointer was in the main window. The Options menu features
the following buttons:
Show/Hide resolution rings Toggles display of resolution rings
Shortcut: Ctrl+r.
Show/Hide statistics Toggles display of image statistics. The statistics about
maximum intensity and average intensity in the image as
well as the wavelength and distance are normally displayed
in the lower left corner of the image area.
Shortcut: Ctrl+a
Do not/Keep view Normally, if a new image is loaded, the program displays
the entire image and also calculates the best color scheme.
If you want to look at all images in the very same way, select
"Keep view". Shortcut: Ctrl+v
