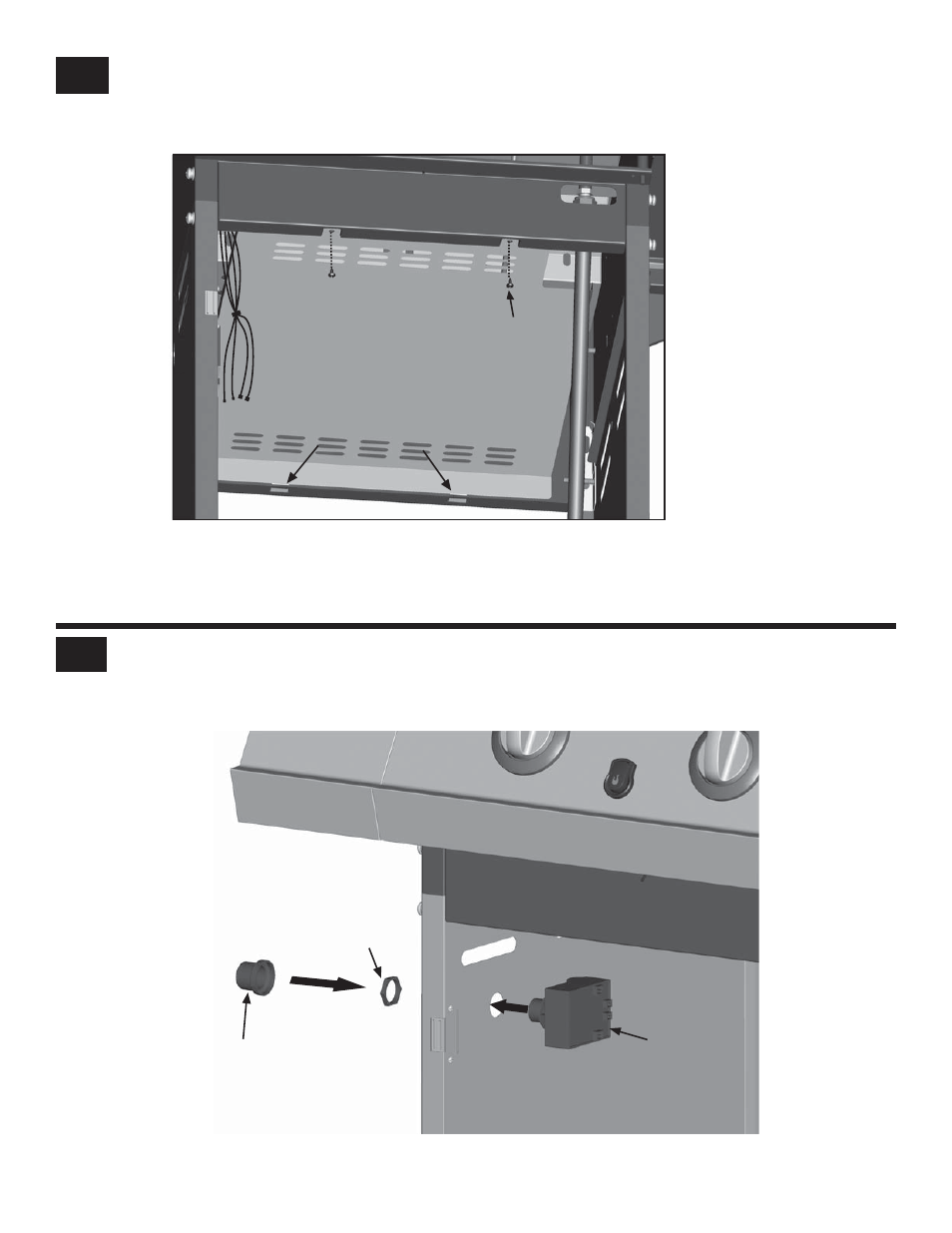

Release the cap and nut from electronic ignition module. Attach electronic ignition module to the cart left side panel
with the nut and cap.
ignition module
Electronic
Left side panel
Nut
Cap
Inside of cart, insert rear tabs(w/o holes) of tank heat shield into slots on the bottom of upper back panel.
Attach front tabs(w/ holes) of tank heat shield under front brace using two #8x3/8” self-tapping screws.
Front brace
Tank heat shield
Insert tabs into slots
#8x3/8” self-tapping
screw
