3
4

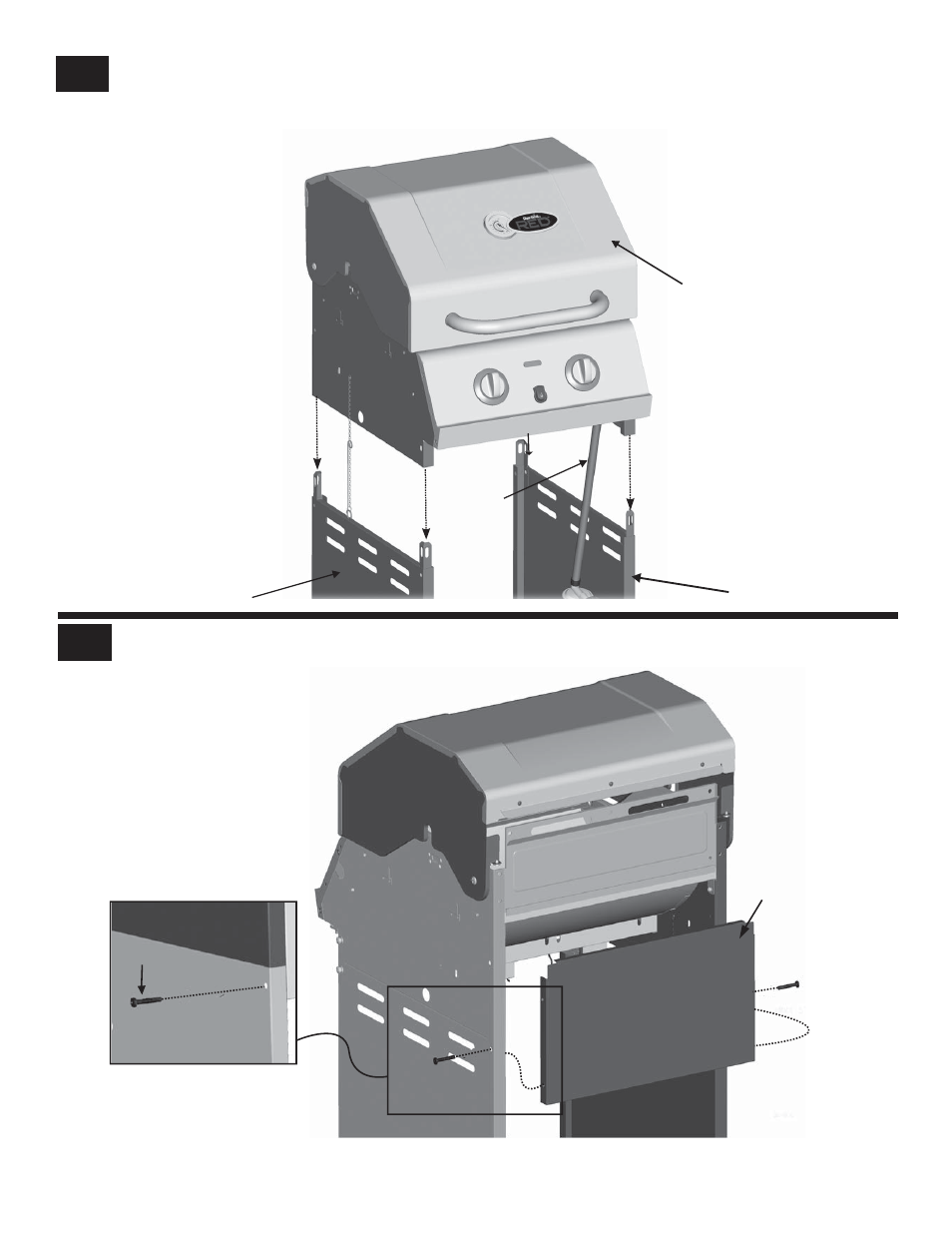

This step requires two people to lift and position grill head onto cart.
Untie regulator hose which is factory bundled underneath the grill head.
Carefully lower the grill head onto the cart, aligning slots at bottom of grill head with posts on cart side panels.
Make sure regulator hose is hanging inside the cart.
14
Regulator
hose
Left side panel
Grill head
Right side panel
On back of grill, place upper back panel between side panels. Secure upper back panel, in lower holes, using one
1/4-20x1½”
1/4-20x1½” screw
screw on each side.
Upper back panel
