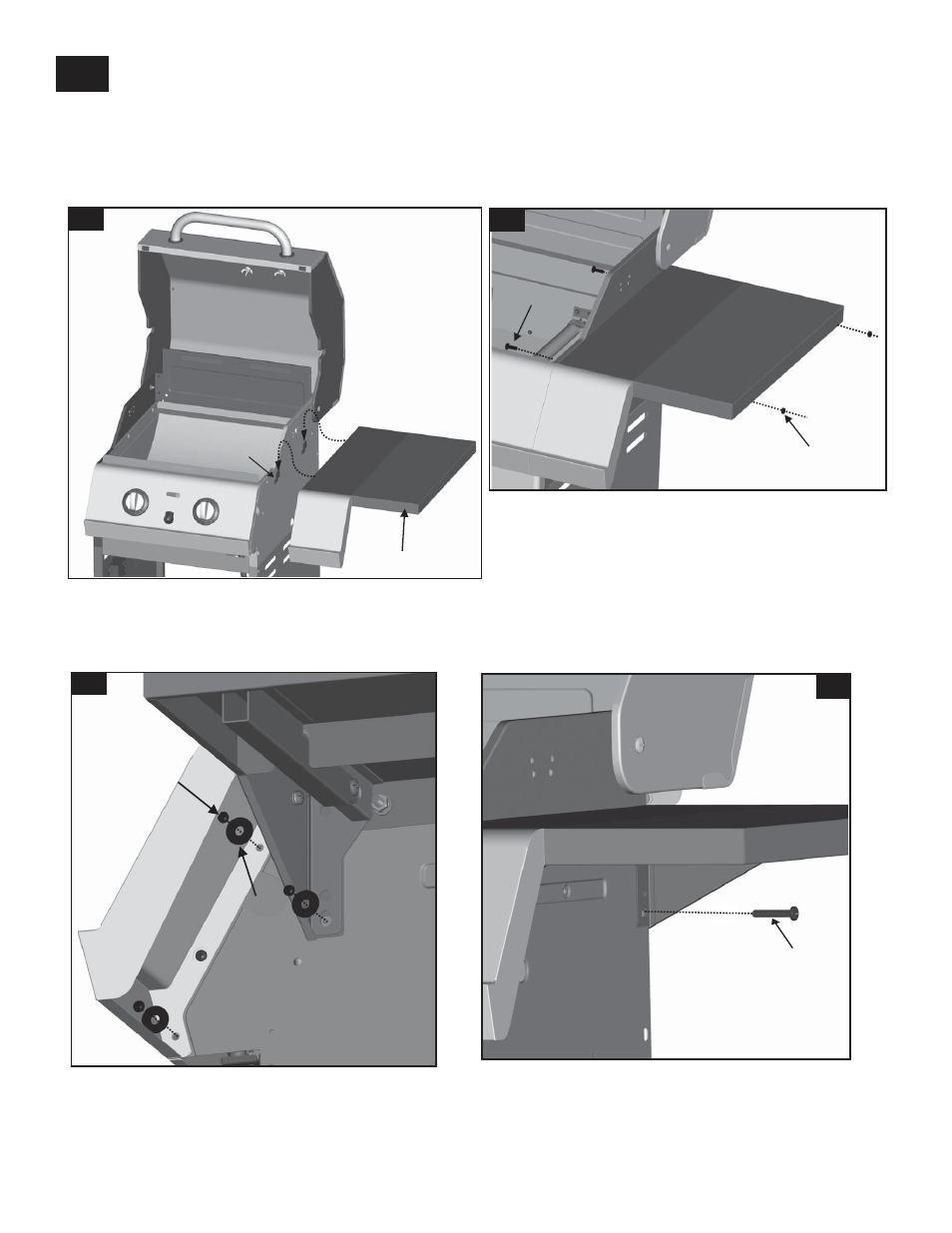

Insert flange on right side shelf into side shelf brackets on side of firebox, shown A.
Attach front of shelf using three #8x3/8” self-tapping screws and large flat washers, shown C.
Attach rear of shelf using one 1/4-20x1½” screw, shown D.
Attach right side shelf using two 1/4-20x3/4” screws and 1/4” nut, shown B.
washer
Large flat
#8x3/8” self-tapping screw
Flange into bracket
Bracket
Right side shelf
1/4” nut
1/4-20x1½”
1/4-20x3/4” screw
screw
A B
C D
Only right side shelf shown for assembly, repeat above steps to install left side shelf.
