Chapter 2: Installation
2-4
HSIM-G01/G09 User’s Guide
10.
Secure the HSIM-G to the module faceplate using the mounting
screws saved in step 5.
11.
Secure the HSIM-G to the module standoffs using the standoff screws
saved in step 6.
12.
Reinstall the interface module in the chassis.
13.
Reattach the network cabling to the module.

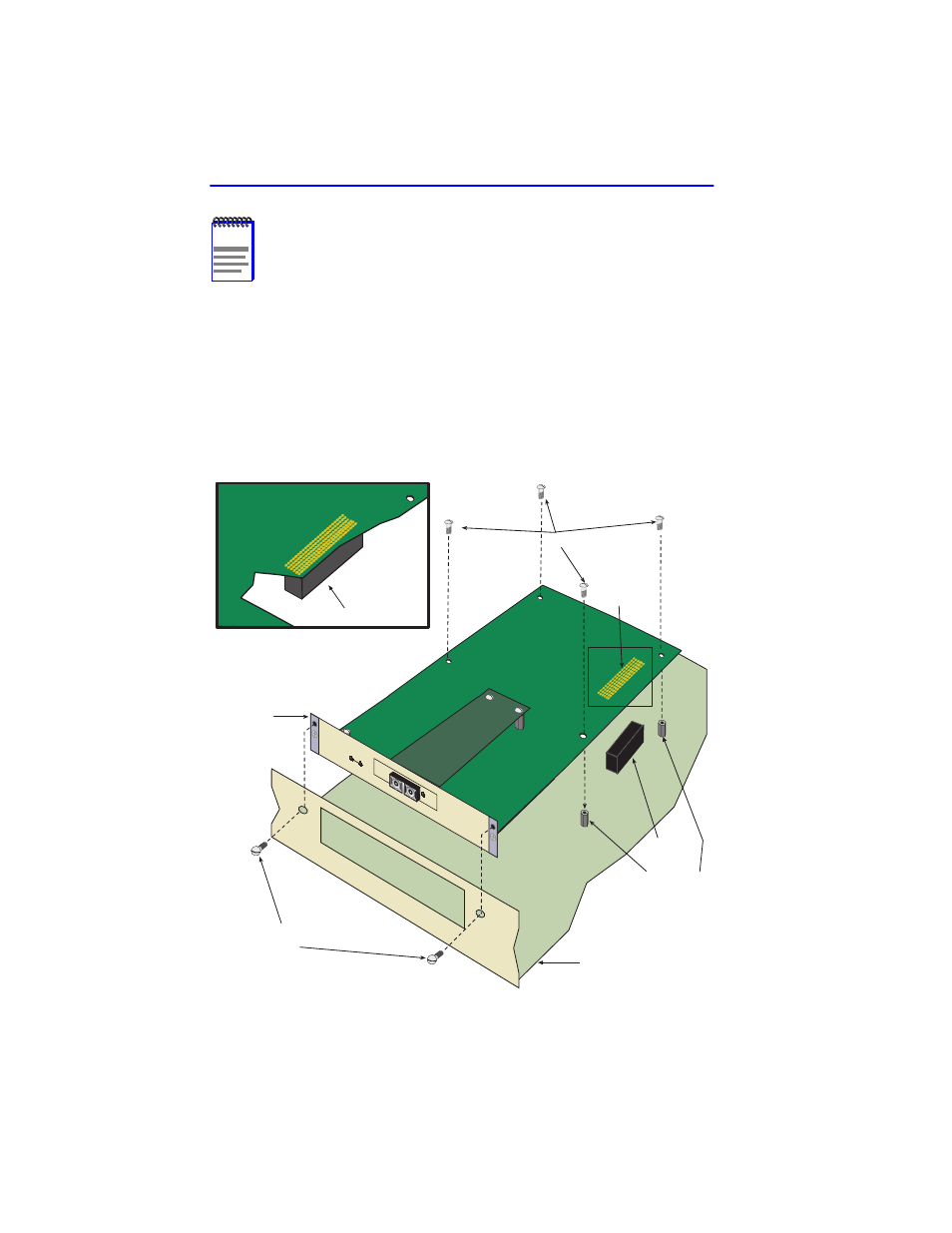

Figure 2-2
Installing the HSIM-G
NOTE
Ensure that the standoffs on the interface module align with the
standoff screw holes on the HSIM-G.
Faceplate Mounting Screws
2398_hsiminstall
Standoffs
HSIM
Connector
HSIM-G
Standoff Screws
Connector
Connector
Cutaway View of Connector
Host Platform
HSIM-G
LNK
SX
