Installing an HSIM-G

HSIM-G01/G09 User’s Guide

2-3

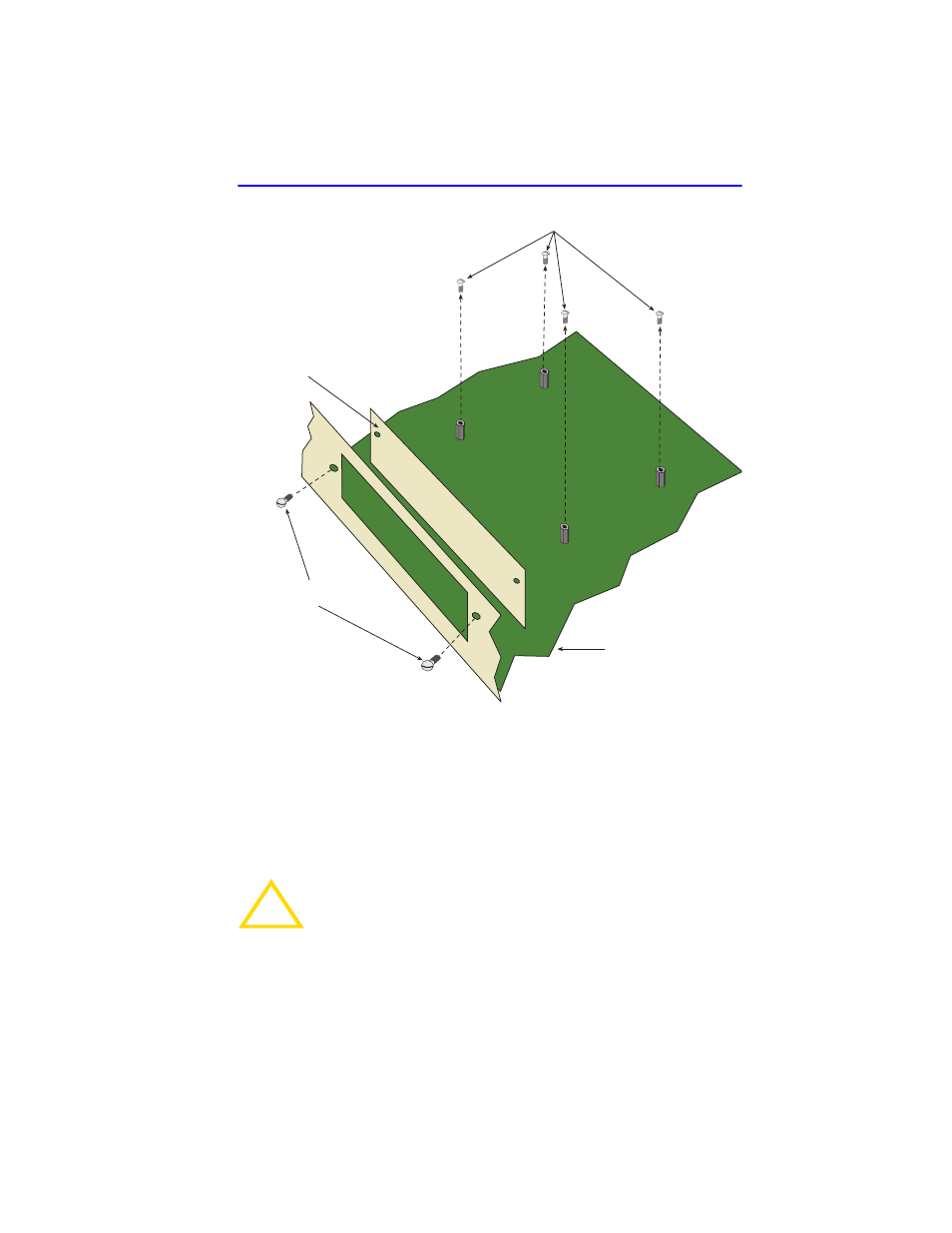

Figure 2-1

Removing the HSIM Coverplate

Refer to

Figure 2-2

and place the HSIM-G behind the module

faceplate.

Align the HSIM connector of the HSIM-G with the HSIM pins on the
module.

Press down firmly on the back of the HSIM-G until the connector
slides all the way onto the pins.

CAUTION

When installing the HSIM-G, ensure that the HSIM pins on the
module or device align with the HSIM-G connector to prevent
bending the pins. This can damage both the HSIM-G and the
module.

Standoff Screws

Faceplate Mounting Screws

HSIM Coverplate

coverplate

Host Platform
