Installing the 1 x 2 SCSI Module
1-5
5 Attach the drive rails to the drive cage.
a Align the screw holes on the drive rails with the screw holes located near slot 1
on the drive cage.
b Insert the 6 x 32 screws (4) into the drive rails and drive cage. See Figure 1-2.
c Use a #2 Phillips screwdriver to tighten the screws on each rail. See Figure 1-2.
6 With the power connector pointing towards the top of the system, insert the drive cage
into the peripheral drive bay until it snaps into place. See Figure 1-3.

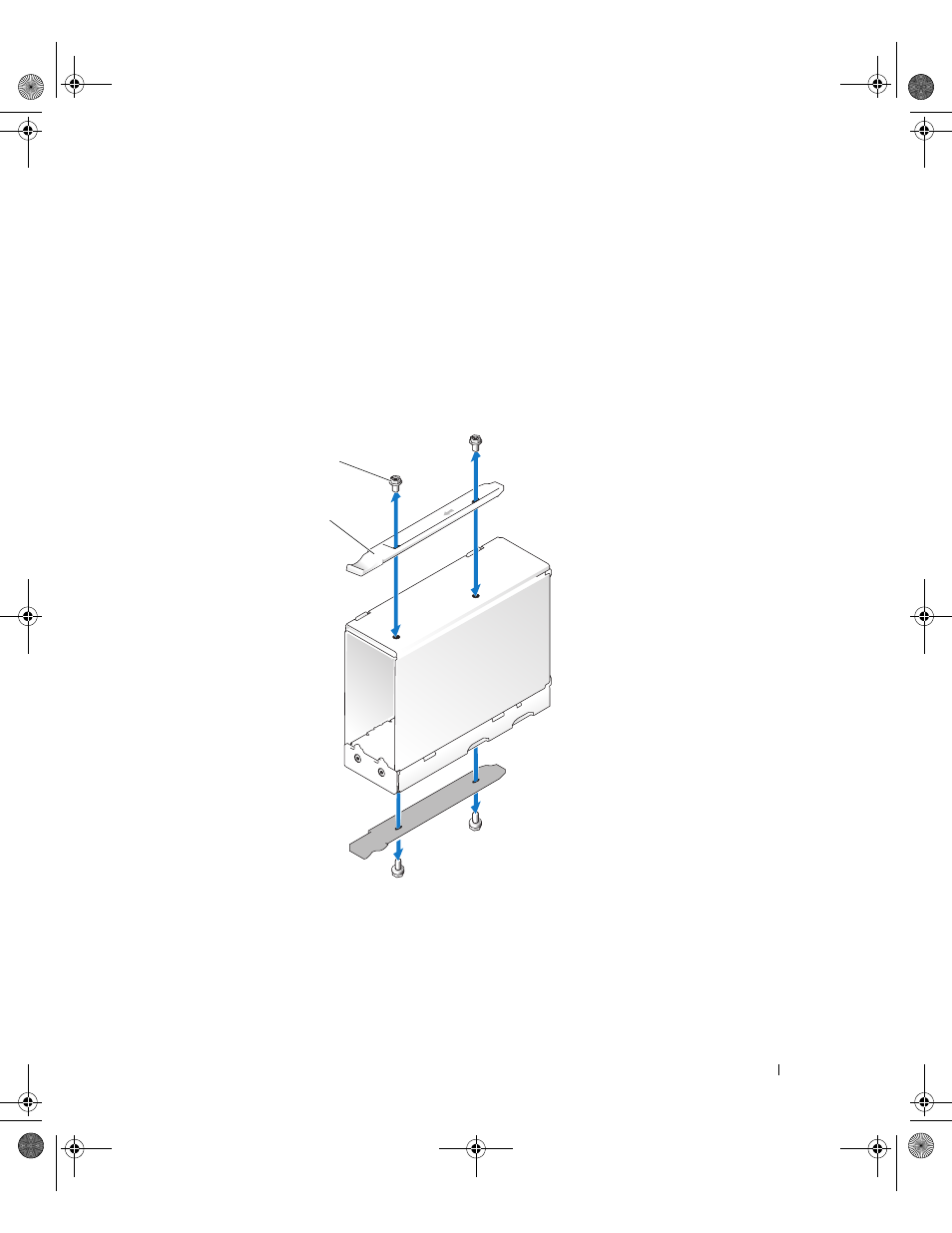

Figure 1-2. Installing the Drive Cage Rails
drive rails (2)
screws (4)
