First Check Kit
Ordering Code Kit No. Size
in. mm
7016200 ARK 3000B CK1 2 50
Kit includes: Seat, Seat O-ring, Disc assembly, Spring, Spring
retainer, Check Cage and Cover O-ring.
Second Check Kit
7016201 ARK 3000B CK2 2 50
Kit includes: Seat, Seat O-ring, Disc assembly, Spring, Spring
retainer, Check cage and Cover O-ring.
First and Second Check Rubber Parts
7016202 ARK 3000B RT 2 50
Kit includes: Two seat discs, Two seat O-rings, Two Cover O-rings.
Cover Kit
Ordering Code Kit No. Size
in. mm
7016203 ARK 3000B C 2 50
Kit includes: Cover, Cover O-ring.
Seat Kit
7016204 ARK 3000B S1 2 50
7016205 ARK 3000B S2 2 50
Kit includes: Seat, Seat O-ring.
“Use only original equipment manufactured parts to protect the
validated warranty.”
Servicing the First and Second Check Valves
1. Remove cover bolts and cover.
2. Remove the retainer from the body bore. The check valve modules can now be
removed from the valve by hand or with a screwdriver.
3. The check seats are attached to the cage with a bayonet type locking arrange-
ment. Holding the cage in one hand, push the seat inward and rotate counter-
clockwise against the cage. The seat, spring cage, spring and disc assembly are
now individual components.
4. The disc assembly may now be cleaned and reassemble or depending on its con-
dition, may be discarded and replaced with a new assembly from the repair kit. O-
rings should be cleaned or replaced as necessary.
5. Reassemble the check valve modules. Check modules are installed in the valve
body with the seats facing the valve inlet. The modules must be securely in place
before the retainer can be replaced.
NOTE: No special tools required to service Model 3000B.
Maintenance Instructions
Replacement Parts

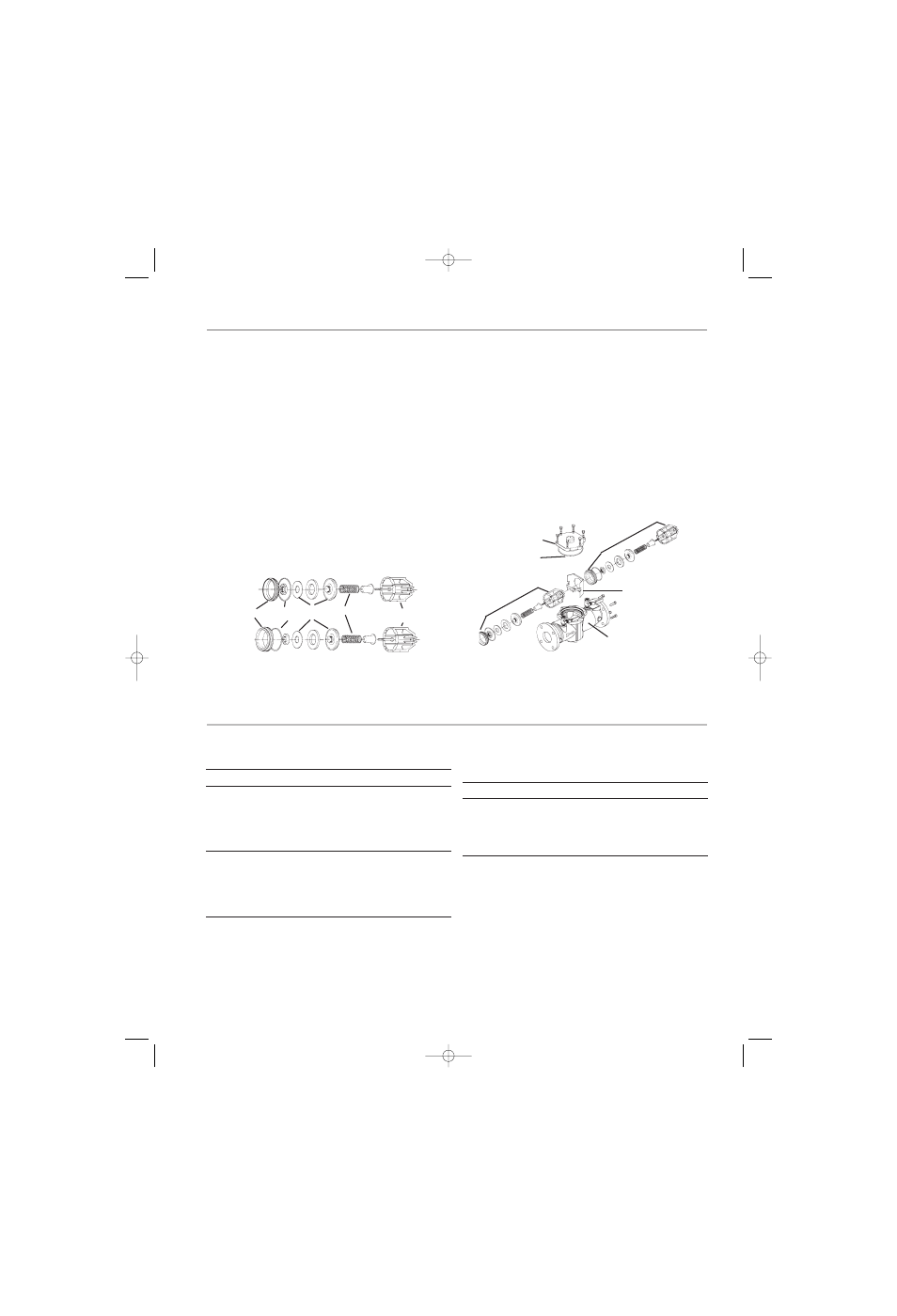

Check Assemblies
When ordering, specify Ordering Code, Kit Number and Valve Size.
Seat
Seat
O-ring
Disc
Assy.
Spring
Cover
Body
First Check
Service Parts Kit
Second Check
Service Parts Kit
Cover
O-ring
Cage/
Seat
Retainer
