Ames Fire & Waterworks 1000DCV Steel Detector Check Valves User Manual

Page 2

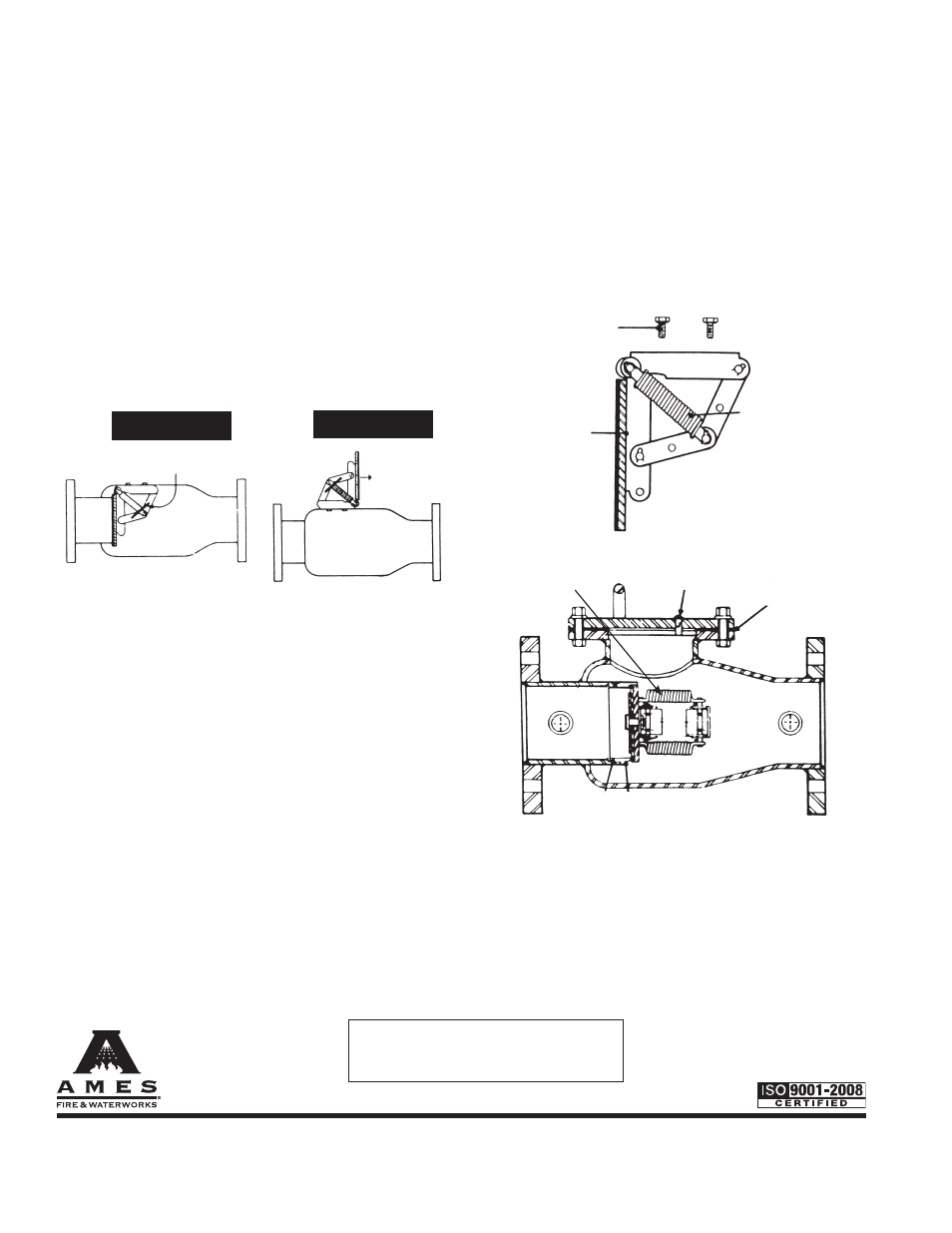

Figure 1

Figure 2

Claper Retainer

Direction of

Flow

Knuckle Joint Assembly

Housing Half Section

Item # Description

1. Knuckle Joint Assembly

(Complete Unit)

2. Clapper Plate with Attached Link

3. Spring

4”, 6” Knuckle Joint Assembly

8”, 10” Knuckle Joint Assembly

” Stainless Steel Bolts

5. Washer (not shown)

6. Bronze Seat (Replaceable in line)

7. Seat O-ring

8. Vent Screw

9. Bonnet Gasket

10.

Clapper Retainer Clip (not shown)
