Service, Replacement Parts and Maintenance

Series 2000B/LF2000B

3

Servicing the First and Second Check Valves

NOTICE

Before servicing be certain water is turned off or shutoff valves are closed

1. After removing the cover, remove the retainer for the body bore. The check valve

modules can now be removed from the valve by hand or with a screwdriver.

Note: For Series 2000B or LF2000B sizes

1

2

" – 2", the seats and springs of the first

and second check modules are not interchangeable. The heavier spring and smaller
diameter seat belong with the first check module.

2. The check seats are attached to the cage with a bayonet type locking

arrangement. Holding the cage in one hand, push the seat inward and rotate
clockwise against the cage. The seat, cage, spring and disc assembly are now
individual components.

3. The disc assembly may now be cleaned and reassembled or, depending on its

condition, it may be discarded and replaced with a new assembly from the repair
kit. O-rings should be cleaned or replaced as necessary.

4. Reassemble the check valve module in the reverse order. Check modules are

installed in the valve body with the seats facing the valve inlet. The modules must
be securely in place before the retainer can be replaced. On the

3

4

" – 1" size, this

retainer may have to be tilted slightly into place. Replace cover.

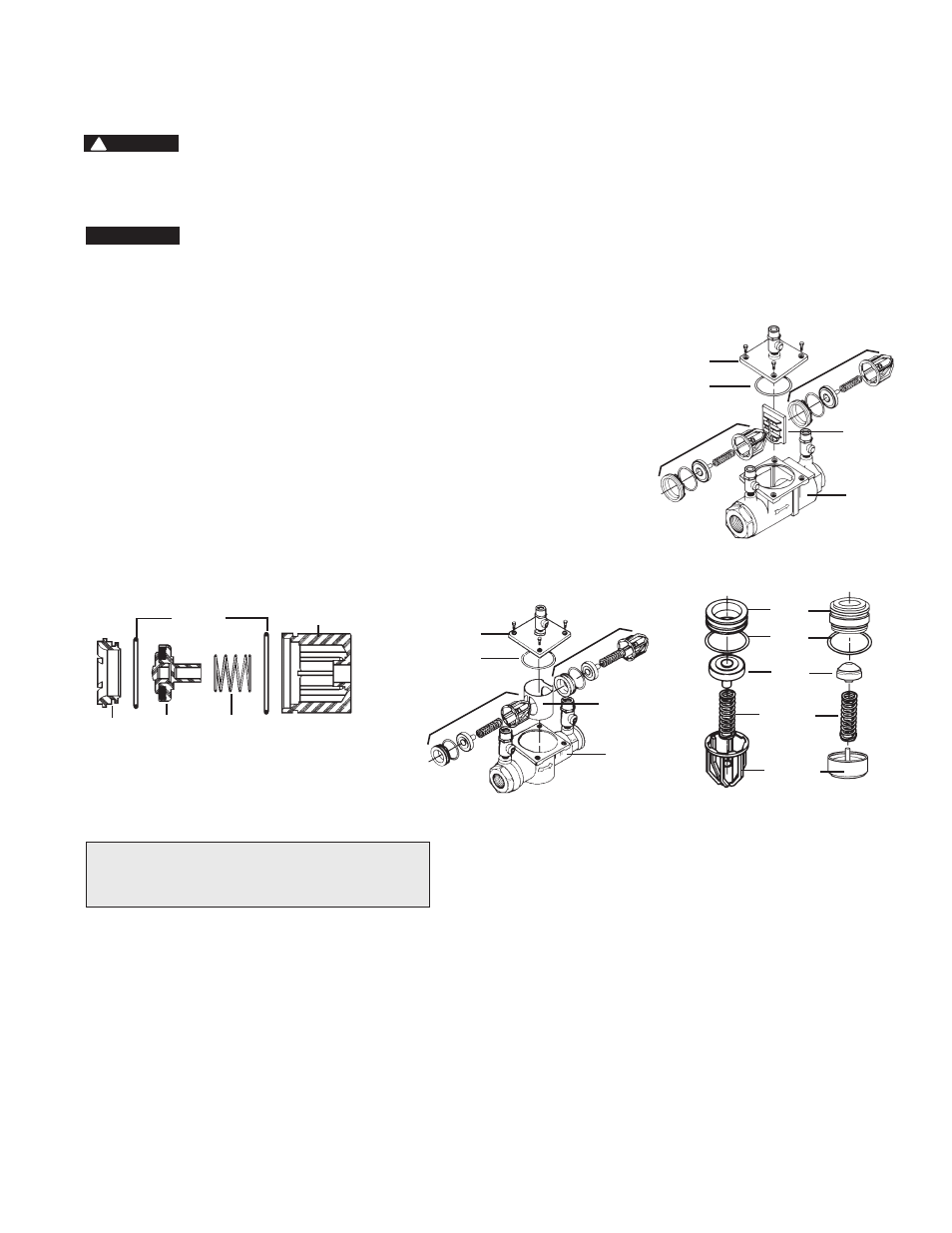

Check Assembly

3

/

4

" (20mm) M3

O-rings

Check Cage

Spring

Disc

Seat

Seat

Cover
Cover

O-ring

Retainer

Body

First Check

Second Check

Seat

O-ring

Disc

Assembly

Spring

Check

Cage

Cover
Cover

O-ring

Retainer

Body

First Check

Second Check

1" 2000B/LF2000B (25mm)

Series 2000B/LF2000B Sizes

1

2

" – 1" (15-25mm)

For repair kits and parts, refer to Backflow Prevention

Products Repair Kits & Service Parts price list

PL-A-RP-BPD found on

www.amesfirewater.com.

WARNING

!

Depressurize valve prior to servicing.
