9

RACEWAY

LOW VOLTAGE
CONNECTIONS

INTEGRATED GAS UNIT
CONTROLLER (IGC)

HOLE IN END PANEL (HIDDEN)

LEGEND

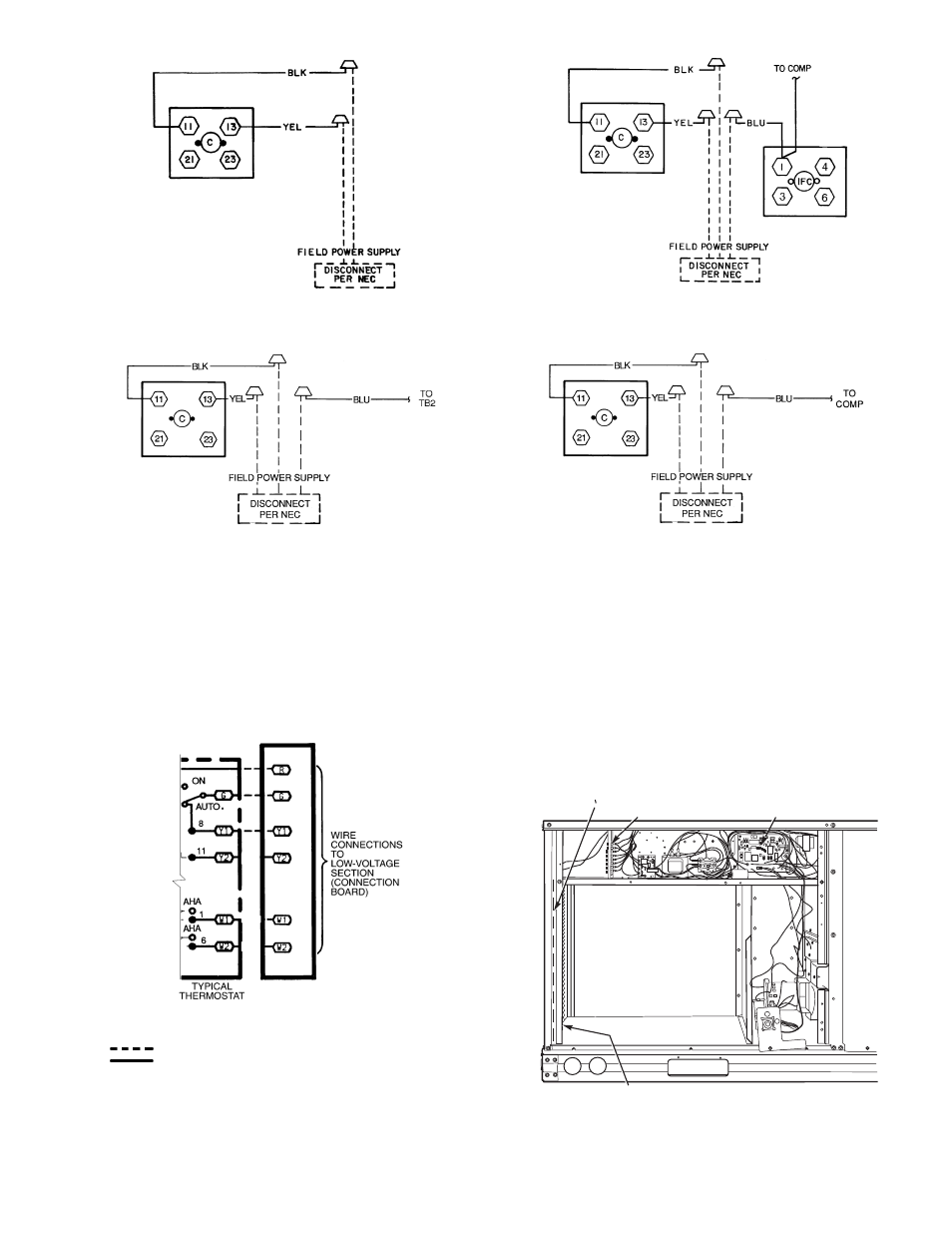

Fig. 9 — Power Wiring Connections

C

Contactor

COMP — Compressor
NEC

National Electrical Code

TB

Terminal Block

LEGEND

NOTES:
1. Connect Y2 when unit is equipped with an economizer.
2. Connect W2 when unit is equipped with two stages of heat.

Fig. 10 — Low-Voltage Connections

AHA

Adjustable Heat Anticipator

Field Wiring
Factory Wiring

Fig. 11 — Field Control Wiring Raceway

208/230-1-60

208/230-3-60

460-3-60

(SIZE 007 ONLY)

575-3-60

(SIZE 007 ONLY)

208/230-3-60

575-3-60, 460-3-60

(SIZES 004-006)
