Fig. 32 — economi$er wiring, Fig. 33 — economi$er sensor wiring – Carrier 48TF004-007 User Manual
Page 16
16
OUTDOOR
AIR
SENSOR
TEMP
TEMP
COM
OUT
PWR
BROWN
VIOLET
WHITE
RED
BROWN
TEMP
TEMP
COM
OUT
PWR
RETURN
AIR
SENSOR
VIOLET
WHITE
RED
OAT
COM
OAH
-15 V
RAT
COM
RAH
+15 V
ECONOMI$ER
CONTROLLER
PINK
TEMP
TEMP
VIOLET
SUPPLY AIR
TEMPERATURE SENSOR
V+
24
COM
VAC
SENSOR
CO
2
(+)
COM
DAT
COM
REM POT
COM
LED
COM
CO
2
CO
2
LEGEND

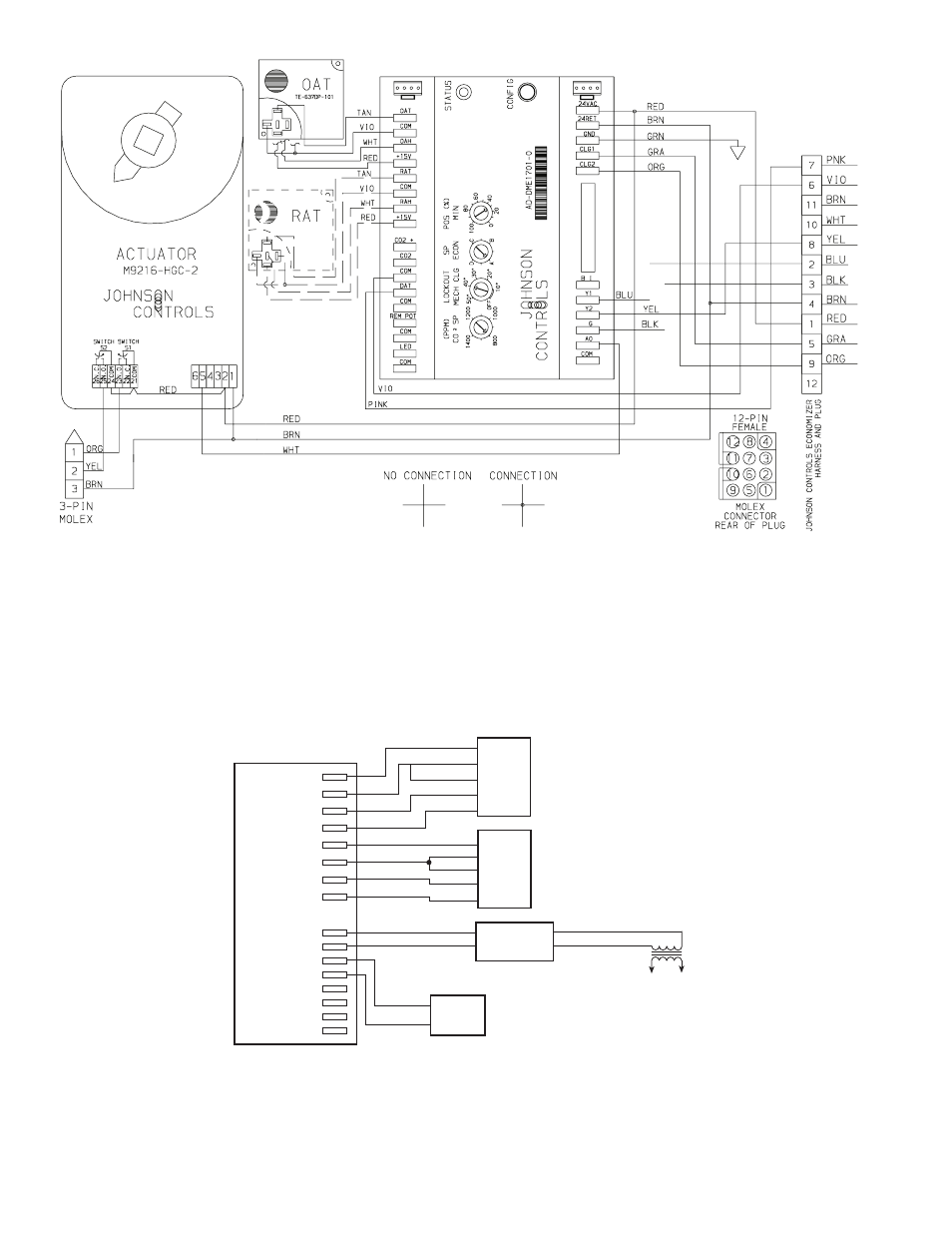

Fig. 32 — EconoMi$er Wiring
OAT
— Outdoor-Air Temperature
RAT
— Return-Air Temperature
Fig. 33 — EconoMi$er Sensor Wiring
