LEGEND FOR FIG. 53 — TYPICAL WIRING SCHEMATIC AND COMPONENT ARRANGEMENT

IMPORTANT: Refer to unit wiring label for actual unit wiring
information.

AHA

Adjustable Heat Anticipator

C

Contactor, Compressor

CAP

Capacitor

CC

Cooling Compensator

COMP — Compressor Motor
D

Diode

EC

Enthalpy Control

ECON — Economizer
EPS

Emergency Power Supply

(Nine Volt Battery)

EQUIP — Equipment
ER

Economizer Relay

FPT

Freeze Up Protection Thermostat

FU

Fuse

GND

Ground

HPS

High-Pressure Switch

HS

Hall-Effect Sensor

I

Ignitor

IDM

Induced-Draft Motor

IFC

Indoor Fan Contactor

IFM

Indoor (Evaporator) Fan Motor

IGC

Integrated Gas Unit Controller

LPS

Low-Pressure/Loss-of-Charge Switch

LS

Limit Switch

MGV

Main Gas Valve

MTR

Motor

OAT

Outdoor-Air Thermostat

OFM

Outdoor (Condenser) Fan Motor

OLR

Overload Relay

PL

Plug Assembly

QT

Quadruple Terminal

R

Relay

RS

Rollout Switch

SAT

Supply Air Thermostat

SEN

Sensor

SW1

Switch Fully Open

SW2

Switch Fully Closed

SW3

Switch Min. Vent Position

SW4

Switch Max. Vent Position

TC

Thermostat-Cooling

TDR

Time-Delay Relay

TH

Thermostat-Heating

TRAN — Transformer

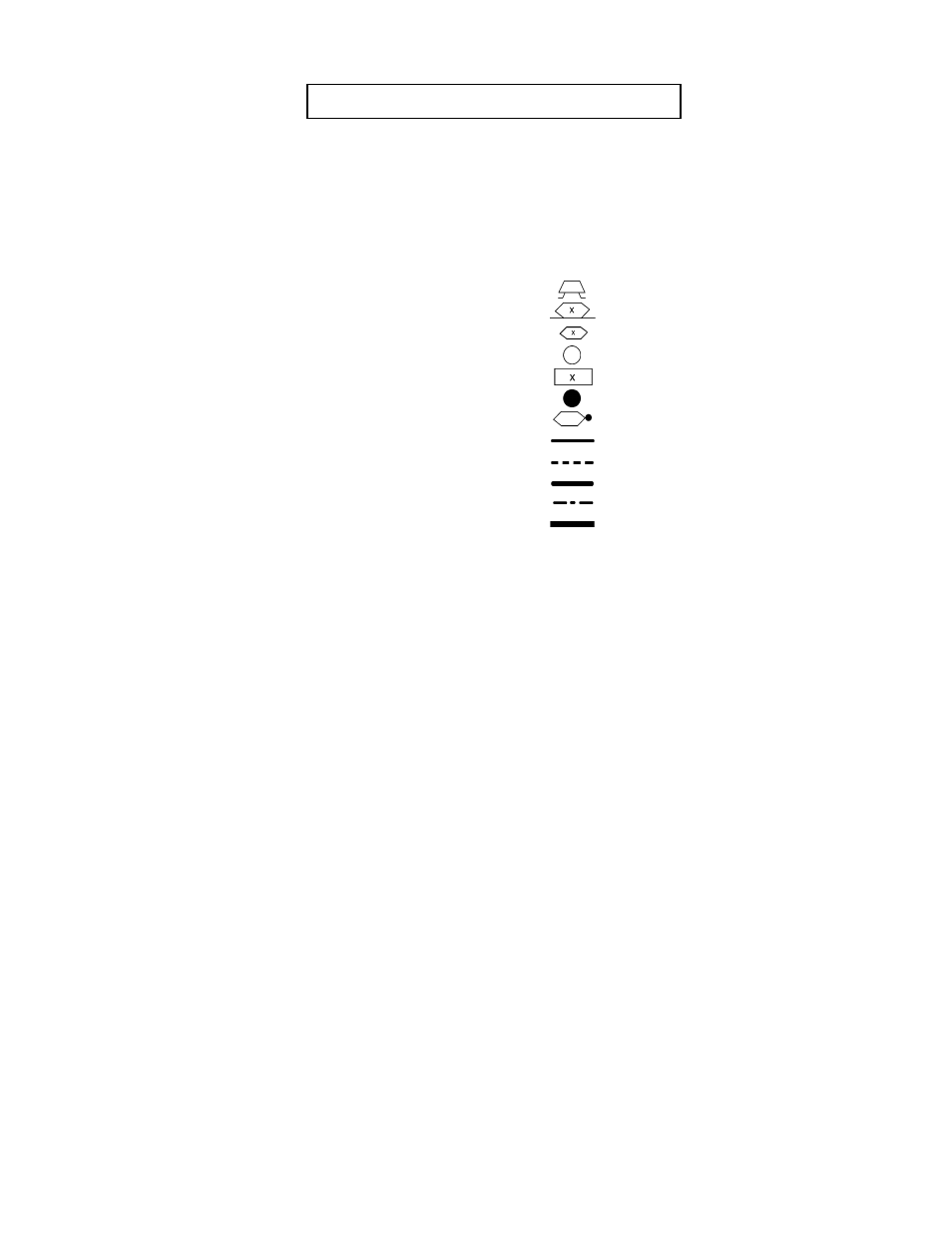

Field Splice

Marked Wire

Terminal (Marked)

Terminal (Unmarked)

Terminal Block

Splice

Splice (Marked)

Factory Wiring

Field Control Wiring

Field Power Wiring

Accessory or Optional Wiring
To indicate common potential only;
not to represent wiring.

NOTES:
1. If any of the original wire furnished must be replaced, it must be replaced with type 90 C wire or

its equivalent.

2. Three-phase motors are protected under primary single-phasing conditions.
3. Thermostat: HH07AT170, 172, 174 and P272-2783 Subbase: HH93AZ176, 178 and

P272-1882, 1883.

4. Set heat anticipator at .14 amp. For units with 2 stages of heating, set stage two anticipator at

.14 amp.

5. Use copper conductors only.
6. TRAN is wired for 230-v unit. If unit is to be run with 208-v power supply, disconnect BLK wire

from 230-v tap (ORN) and connect to 208-v tap (RED). Insulate end of 230-v tap.
