2. GETTING ACQUAINTED WITH THE
AIR CONDITIONER
Check the appliance technical characteristics on the
nameplate.

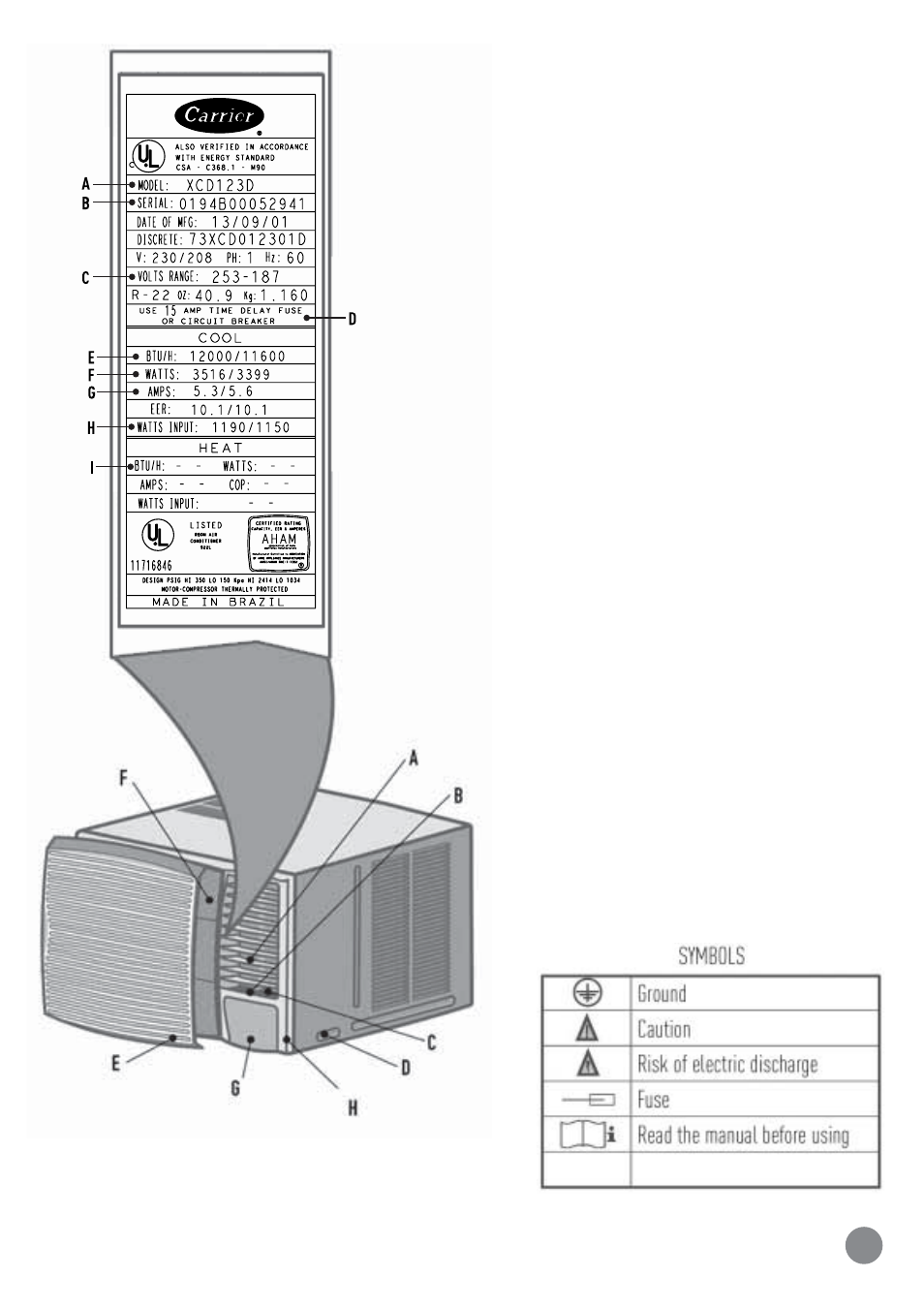

Cabinet
A - Horizontal louvers for the air flow
B - Vertical louvers for the air flow
C - Air exhaust control
D - Safety screws (both sides)
E - Filter cover
F - Filter
G - Control panel
H - Front Grille
Nameplate
A - Model
B - Serial number
C - Voltage (V)
D - Circuit Breaker (A)
E - Cooling capacity (Btu/h and W)
F - Power consumption (W)
G - Current (A)
H - Power efficiency (W/W)
I - Heating capacity (Btu/h and W)
