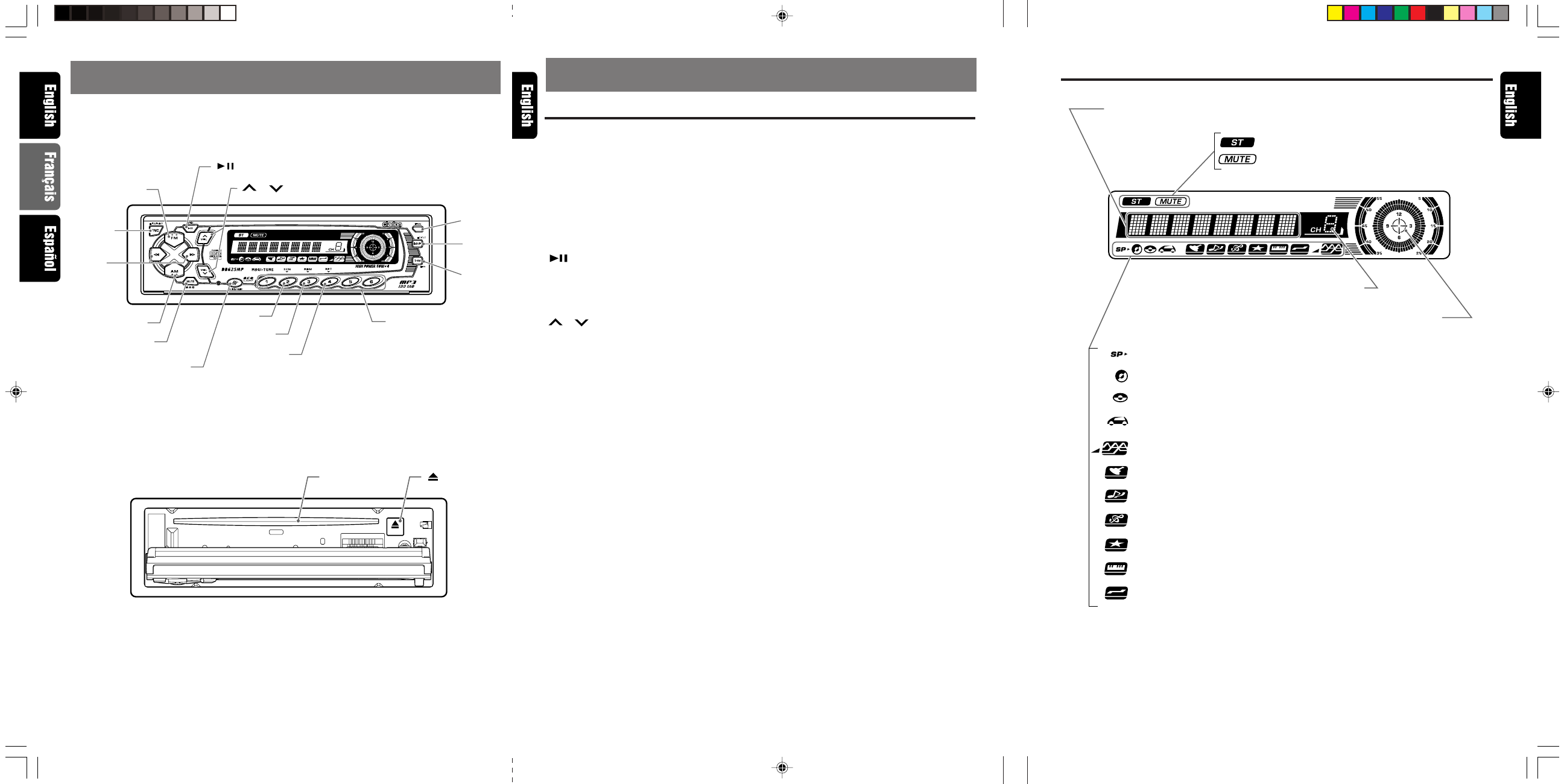

Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.

Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre.

Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.

■

Main unit /

Appareil principal

/ Unidad principal

With the FLIP DOWN PANEL opened /

Ouvrez le PANNEAU RABATTABLE

Apertura del PANEL ABATIBLE

3. NOMENCLATURE

Names of Buttons

Main Unit

[FNC] button
• Press the button to turn on the power.

Press the button for at least 1 second to turn
off the power.

• Switches the operation mode among the ra-

dio mode, etc.

[FM] button
• Switches the FM band while in the radio mode.

[

] button

• Plays or pauses a CD/MP3 while in the CD/

MP3 mode.

• Press the button for at least 1 second to enter

the adjustment menu mode.

[

], [

] button

• Adjust the volume.

[OPEN] button
• Use the button to open the Flip down panel.

[DISP] button
• Switches the display indication.

• Use the button to input a title in the CD/MP3

mode.

• Scrolling the displayed CD text and MP3 text.

[T-M] button
• Use the button to set the tuning mode.

• Use the button to set the Auto Store.

[PRESET] button
• Stores a station into memory or recall it directly

while in the radio mode.

[RPT] button
• Plays repeatedly while in the CD/MP3 mode.

[RDM] button
• Performs random play while in the CD/MP3

mode.

[SCN] button
• Performs scan play for 10 seconds for each

track while in the CD/MP3 mode.

[BEQ LIGHT] button
• Use the button to select one of the three types

of sound characteristics already stored in
memory.

[MUTE] button
• Turning the volume down quickly.

• Press the button for at least 1 second to turn

the loudness on or off.

[AM] button
• Switches the AM band while in the radio mode.

[

a], [d] button

• Selects a station while in the radio mode.

• Selects a track when listening to a CD/MP3.

• These buttons are used to make various set-

tings.

[CD/MP3 SLOT]
• CD/MP3 insertion slot.

[

Q] button

• Ejects a CD/MP3 when it is loaded into the

unit.

Display Items

[ ], [ ]

[FNC]

[ ]

[

a],

[

[AM]

[RPT]

[RDM]

[SCN]

[MUTE]

[PRESET]

[OPEN]

[DISP]

[T-M]

[FM]

[BEQ LIGHT]

[CD/MP3 SLOT]

[ ]

Operation status indication
Titles, PS names, etc. are
displays.

: Stereo indication

: Mute indication

Preset channel indication (1 to 6)

Clock (Clock indication) etc.

: Speaker Setting indication

: 5 & 4 in. (127 mm & 102 mm) Speaker indication

: 6 & 6 x 9 in. (152 mm & 152 mm x 229 mm) Speaker indication

: OEM Speaker indication

: BEQ LIGHT indication (BEQ LIGHT:Beat EQ Light)

: Rock indication

: Pops indication

: Easy indication

: Top 40 indication

: Jazz indication

: Flat indication
