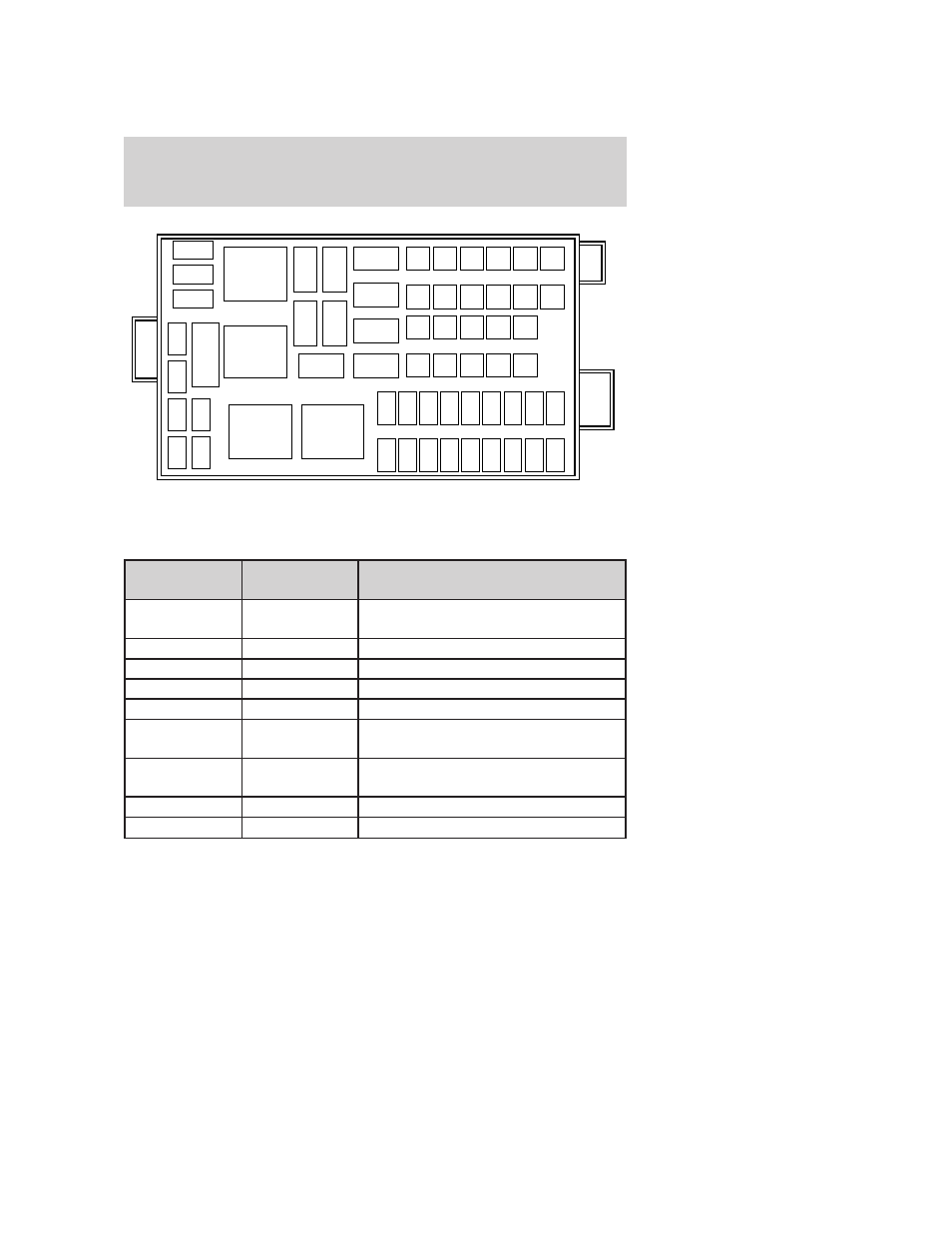

The cover for the power distribution box can be removed by releasing
the tab on the back left corner of the cover, then pulling the cover up.

The high-current fuses are coded as follows:

Fuse/Relay

Location

Fuse Amp

Rating

Power Distribution Box

Description

1

30A*

Powertrain Control Module (PCM)
relay

2

10A*

PCM, Front electronic module (FEM)

3

10A*

A/C compressor clutch

4

25A*

Horns, Horn relay (coil)

5

15A*

Fuel pump motor, PCM

6

30A*

Front wiper motor, Front wiper relay,
Front washer pump, FEM

7

25A*

Rear wiper motor, Rear washer
pump, Rear wiper relay (coil)

8

Not used

9

15A*

Right headlamp

503

304

303

302

301

502

501

207

201

202

203

204

122

118

114

110

106

102

121

117

113

109

105

101

120

116

112

108

104

119

115

111

107

103

24

209

206

208

18

16

14

12

10

8

6

4

2

17

15

13

11

9

7

5

3

1

205

23

22

21

401

20

19
