Freedom Designs Gizmo Tilt in Space - Manual (Page 32)

Freedom Designs, Inc.
30
Main Frame
continued…..
Angle Adjustable Footboard…….

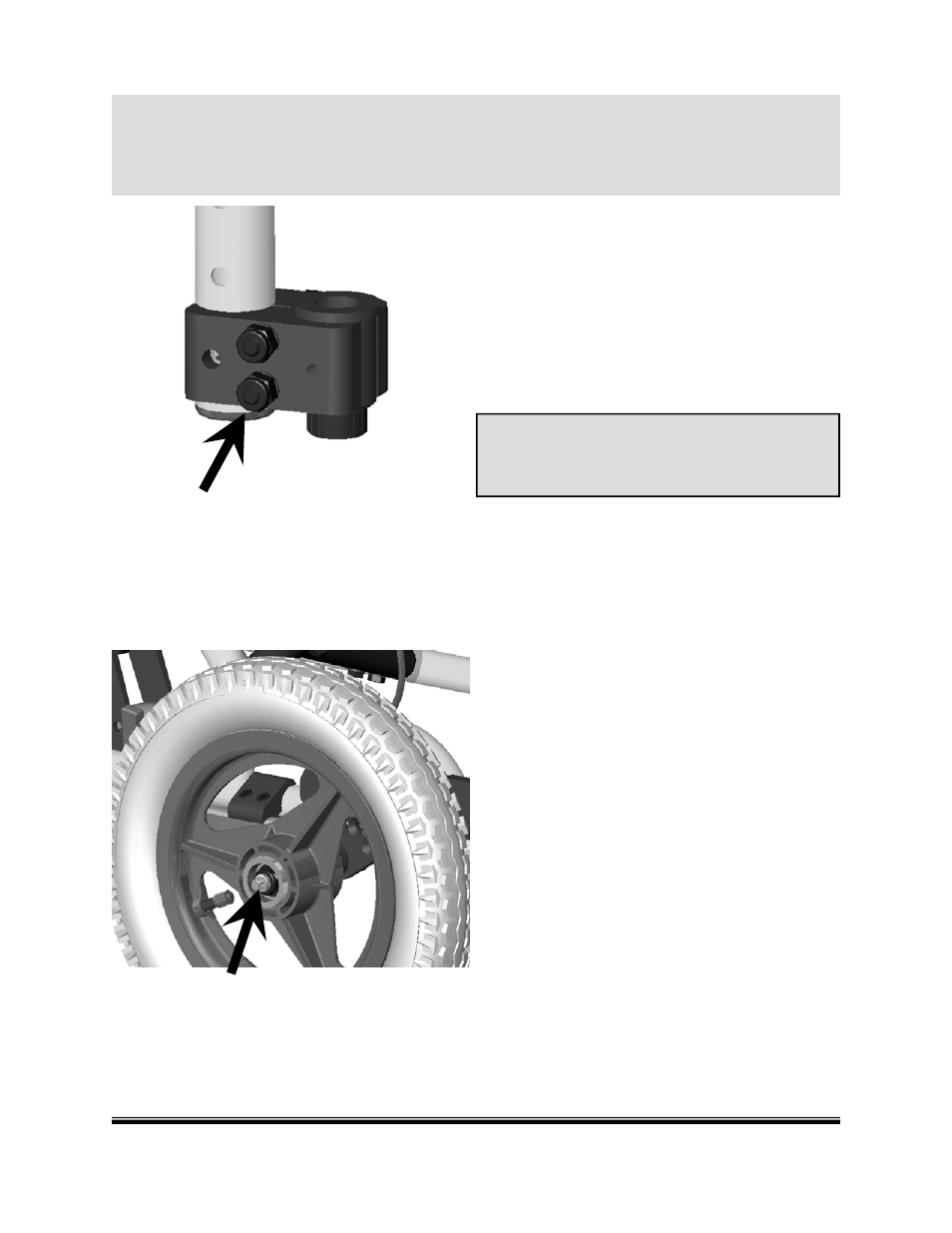

5. To change the height of the footboard on
the frame, loosen the 2 hex head screws
on the footboard frame clamps. Set the
desired height and tighten.
Warning: In all footplate and hanger
adjustments, be sure that all screws are
tightened securely for your safety.
Quick Release Axle*
The Gizmo is equipped with double lock quick
release axles that release with the push of a
button. This double lock quick release mecha-
nism allows the rear wheels to be easily
removed for transportation or storage.
To remove the rear wheel:
1. Unlock the wheel lock.
2. Grasp the frame with one hand.
3. With the other hand, squeeze the quick
release button.
4. The wheel will then pull off easily.
Warning: the axle is not properly locked
until the outside quick release button pops
out to its full extended position.
The lowest point of the footrest plate should
be at least 2 1/2” from the ground to ensure
the proper clearance.
*Patented
