Edge Lighting Twin Slim LED - Dimmable - Manual (Page 2)

2

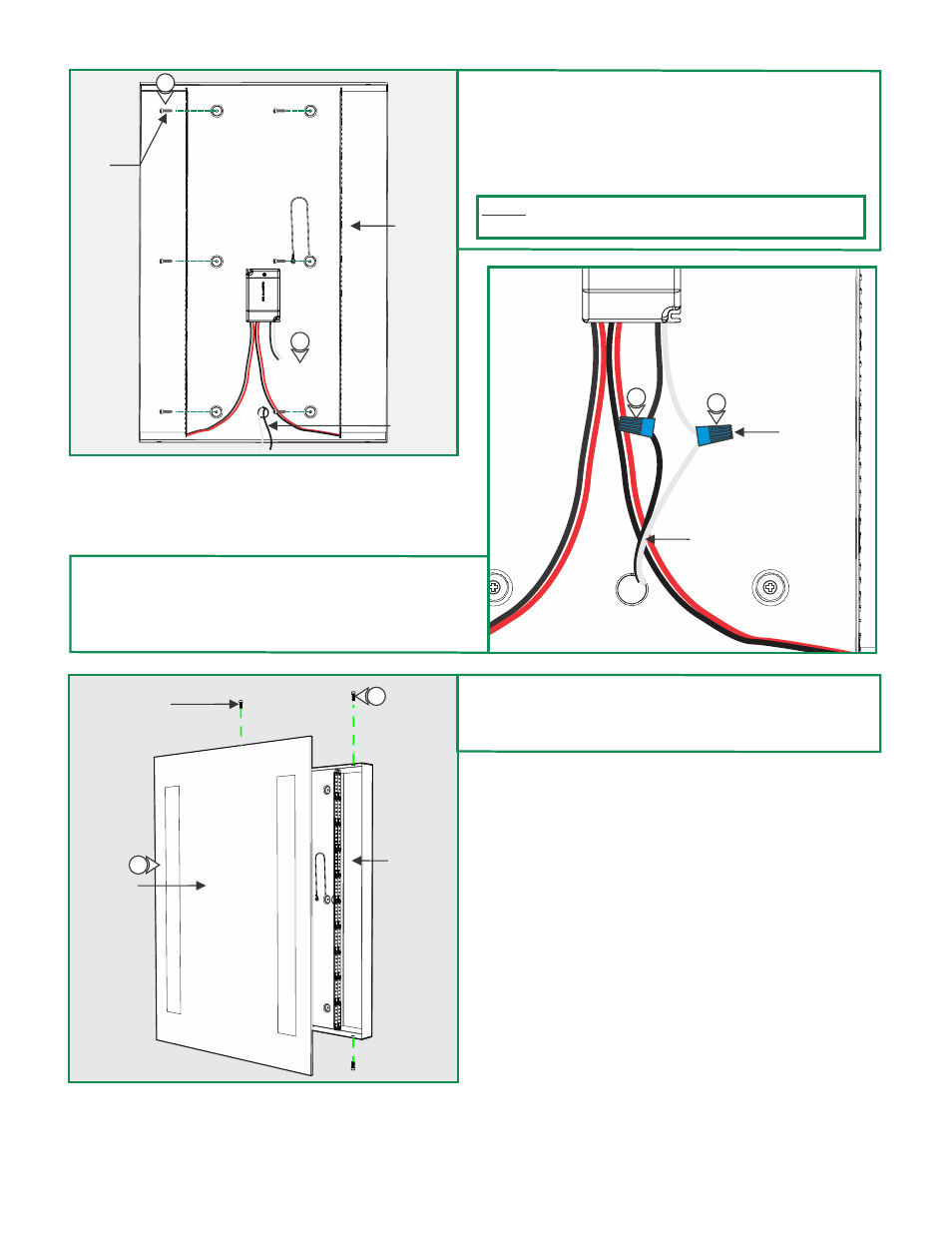

D 6: Feed the 120 VAC power wires through the mounting plate.
7: Line up the mounting plate holes with the anchors and
secure it with the eight #8-32 screws provided.
8: Ensure the mounting plate is grounded in accordance with
local electrical codes.
9: Connect the 120VAC hot wire to the hot transformer wire
using a wire nut.
10: Connect the 120VAC neutral wire to the neutral transformer
wire using a wire nut.
MIRROR
MOUNTING
PLATE
WALL
#8-32
SCREW
(6X)
120 VAC
POWER
WIRES
MOUNTING
PLATE
M6 SCREW
11: Carefully place the mirror onto the mounting plate.
12: Secure the mirror to the mounting place by tightening four
M6 screws using an 3mm Allen wrench.
6
7
12
11
NOTE: Contains integrated 24V LED lights consuming a total of 40
Watts.
F
E
WIRE NUT
120VAC
POWER
WIRES
10
9
