Edge Lighting Marilyn Square - Manual

Installation Instructions for
Marilyn Round & Square
904-MARILYN-01
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
[email protected]
1
MAR-RD-22-_-CH
© 2011 Edge Lighting. All Rights Reserved.

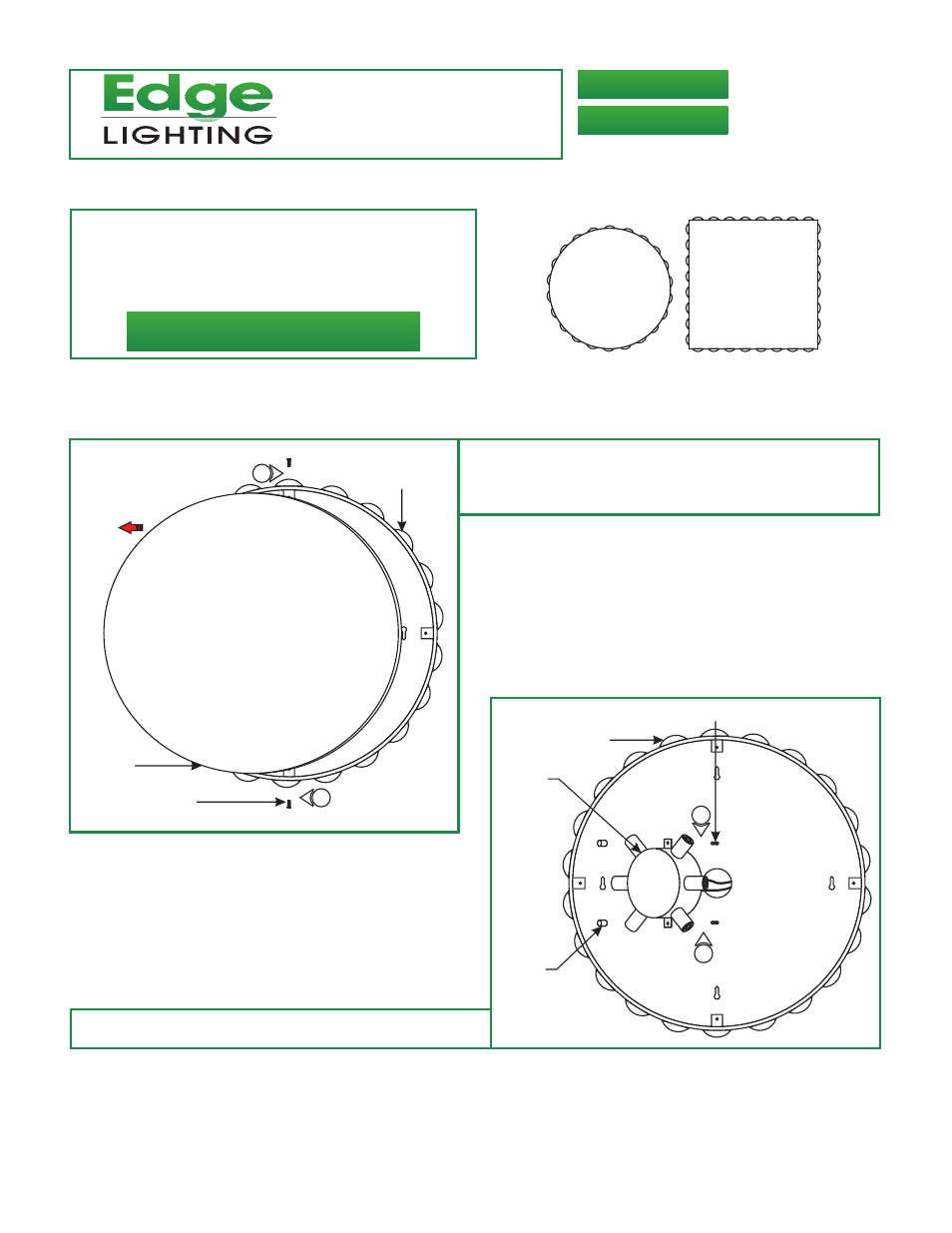

A 1: Remove the two Phillips screws from the sides of the
backplate.
2: Carefully remove the mirror.
SAVE THESE INSTRUCTIONS!
- This product is wall mounted only.
- This instruction shows a typical installation
- This Fluorescent lamps are not dimmable.
IMPORTANT INFORMATION
B
SOCKET
ASSEMBLY
3: Remove the thumb nuts, and carefully remove the socket
assembly.
BACKPLATE
1
MIRROR
PHILLIPS SCREW
THUMB
NUT
Install the Backplate
1
3
3
BACKPLATE
THREADED STUD
MAR-SQ-24-_-CH
