Installation Instructions for
Twin Slim
904-TWINSLIM-20-F1-05
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
[email protected]

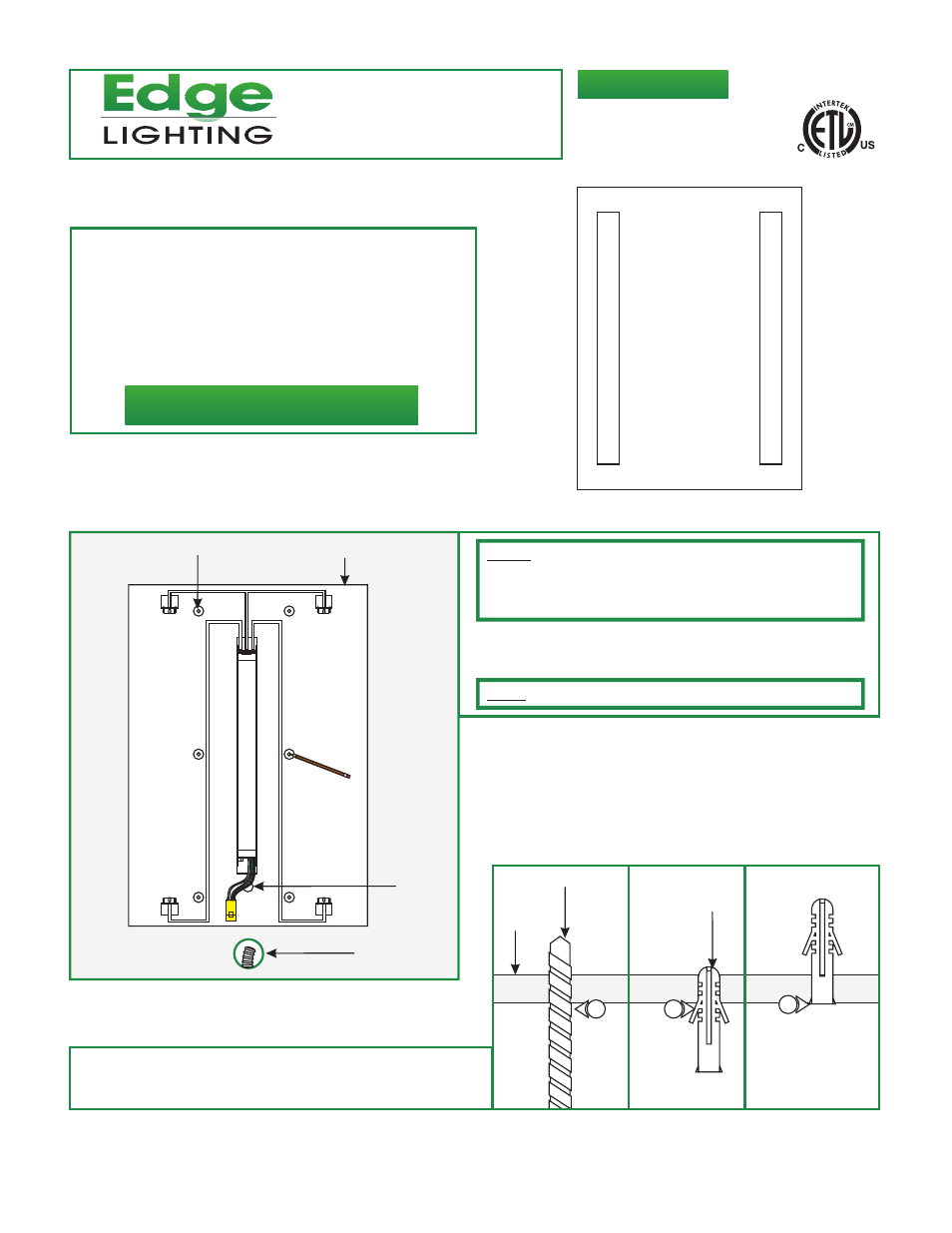

Install the Mounting Plate
1
TWINSLIM-20-F1-_
© 2012 Edge Lighting. All Rights Reserved.
A
1: Align the mounting plate conduit hole with the power line
and use the mounting plate as a template to mark six
mounting holes onto the wall.
MOUNTING HOLE
SAVE THESE INSTRUCTIONS!
- This product is ETL listed for indoor damp locations.
- Must be installed by a qualified electrician.
- This product is wall mounted only.
- Supply power to mirror in accordance with local electrical
codes.
- This instruction shows a typical installation
- This product is dimmable with a 0-10V dimmer.
IMPORTANT INFORMATION
B
WALL
2
ANCHOR
2: Use a 9/32 drill bit to make holes on all six marked points.
3: Tap the anchors into the drilled holes with a hammer.
9/32 DRILL BIT
3
3
CONDUIT
HOLE
MOUNTING PLATE
POWER LINE
NOTE: The Twin Slim mirror mounts independently directly to
the wall without being supported by the electrical box, thus it is
recommended that one person holds the mounting plate while
the electrician installs it.
NOTE: Make sure that the mounting plate is leveled horizontally.
