Edge Lighting Reflection - Manual (Page 2)

2
C

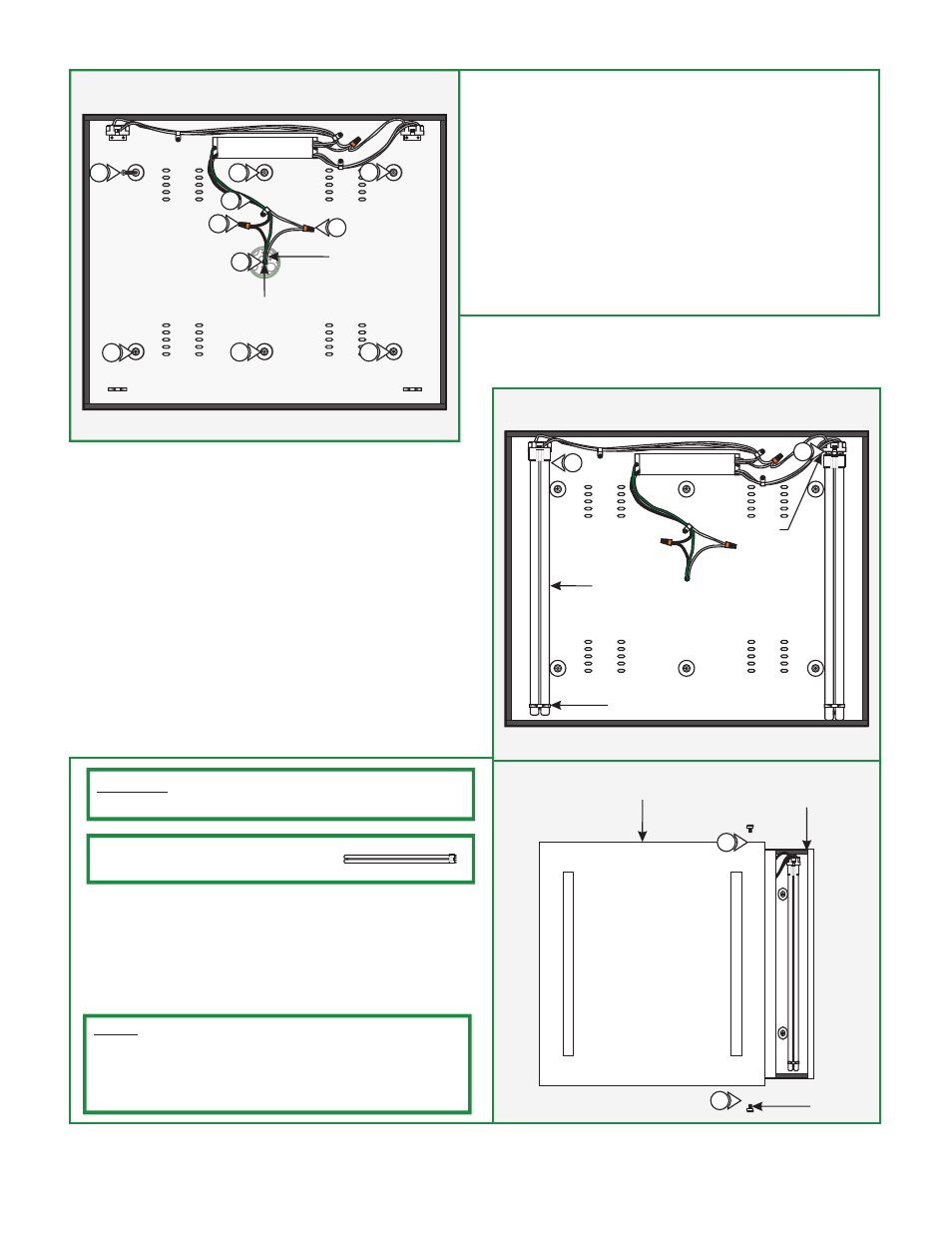

5: Feed the power wires through the mounting plate center
hole.
6: Line up the mounting plate holes with the anchors and
secure it to the anchors with the six #8-32 screws provided.
7: Make sure that the mounting plate is grounded in
accordance with local electrical codes.
8: Connect the white fixture wire to the neutral power wire
with a wire nut.
9: Connect the black fixture wire to the hot power wire with a
wire nut.
7
6
9
Install the Lamp & Mirror
D
LAMP
SOCKET
1
MOUNTING PLATE
2
THUMB
SCREW
MIRROR
2
1: Push the lamp pins completely into the socket holes and
secure by snapping into the spring clips. Repeat this step
for the remaining sockets.
2: Place the mirror housing into the mounting plate and secure
it in place by tightening the two thumb screws on the top
and bottom of the mounting plate into the mirror housing.
POWER
LINE
8
6 6 6
6 6
1
CAUTION: To reduce risk of a burn or electrical shock during
lamping, disconnect the power to the fixture.
Use MAX 55 Watt Type 2G11 Base
Compact Fluorescent Lamp For Each Socket.
5
MOUNTING PLATE
CENTER HOLE
SPRING CLIP
NOTE: NEMA fluorescent lamp manufacturers recommend to
reduce possible flicker or instability when new dimming systems
are comissioned, lamps should be operated at the ballast's
maximum light output setting overnight (approximately
12 hours).
