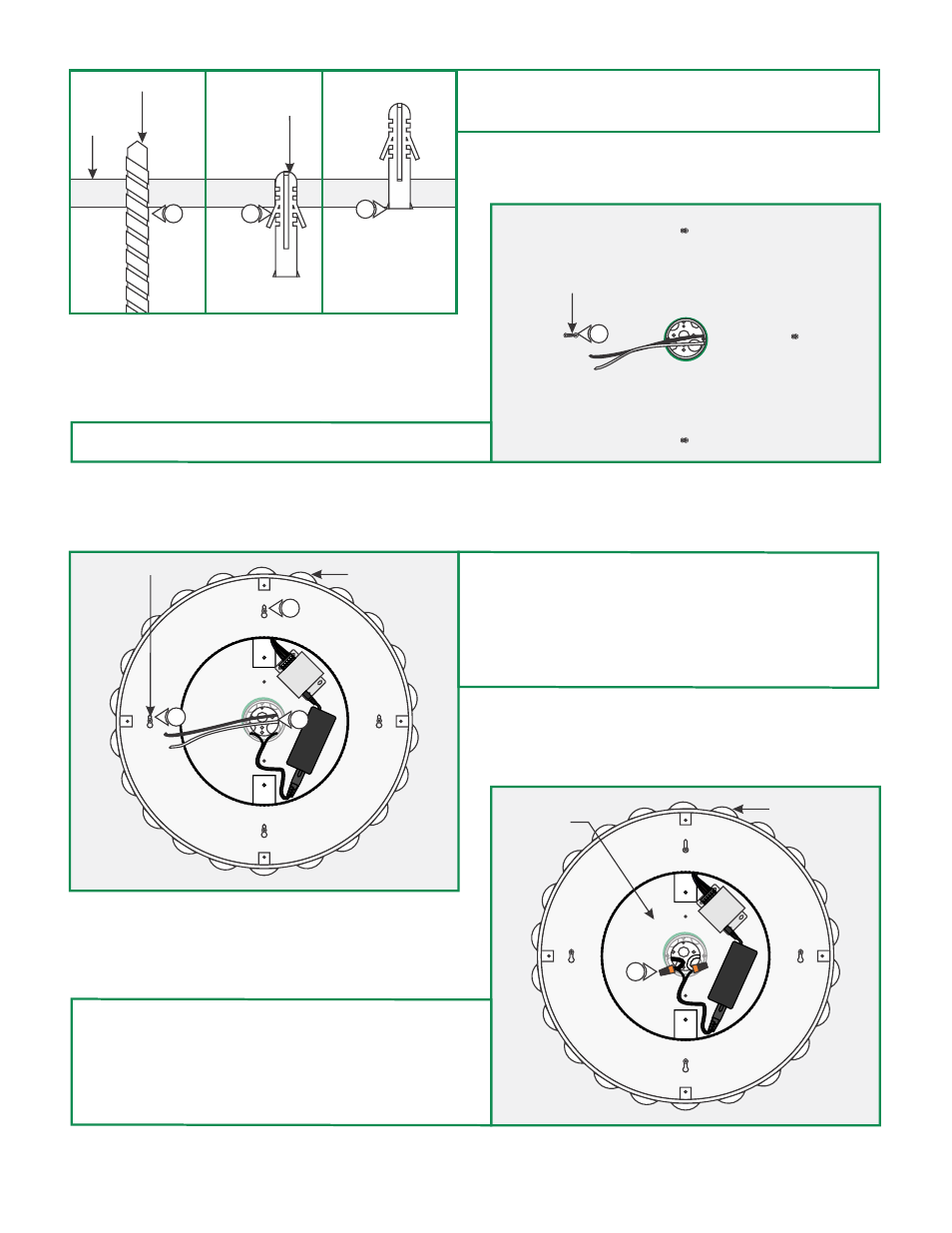

8: Feed the power wires coming from the electrical box
through the backplate center hole.
9: Hang the backplate keyholes onto the exposed screws.
10: Tighten the four #8 screws completely to the secure the
backplate in place.
8
10
9
PHILLIPS SCREW
2
BACKPLATE
D
7: Tighten (not completely) the four #8 screws into the anchors
leaving the head unscrewed for 1/8".
7
PHILLIPS SCREW
C
WALL
5
ANCHOR
5: Use a 9/32 drill bit to make holes on all four marked points.
6: Tap the anchors into the drilled holes with a hammer.
9/32 DRILL BIT
6
6
11: Make sure that the backplate is grounded in accordance
with local electrical codes.
12: Connect one power supply wire (either one to hot & the
other one to the neutral power lines with wire nuts.
13: Place all wires and wire nuts inside the electrical box.
F
12
BACKPLATE
POWER
SUPPLY
