Ef d – Edge Lighting Alice Mirror LED - Dimmable User Manual

Page 2

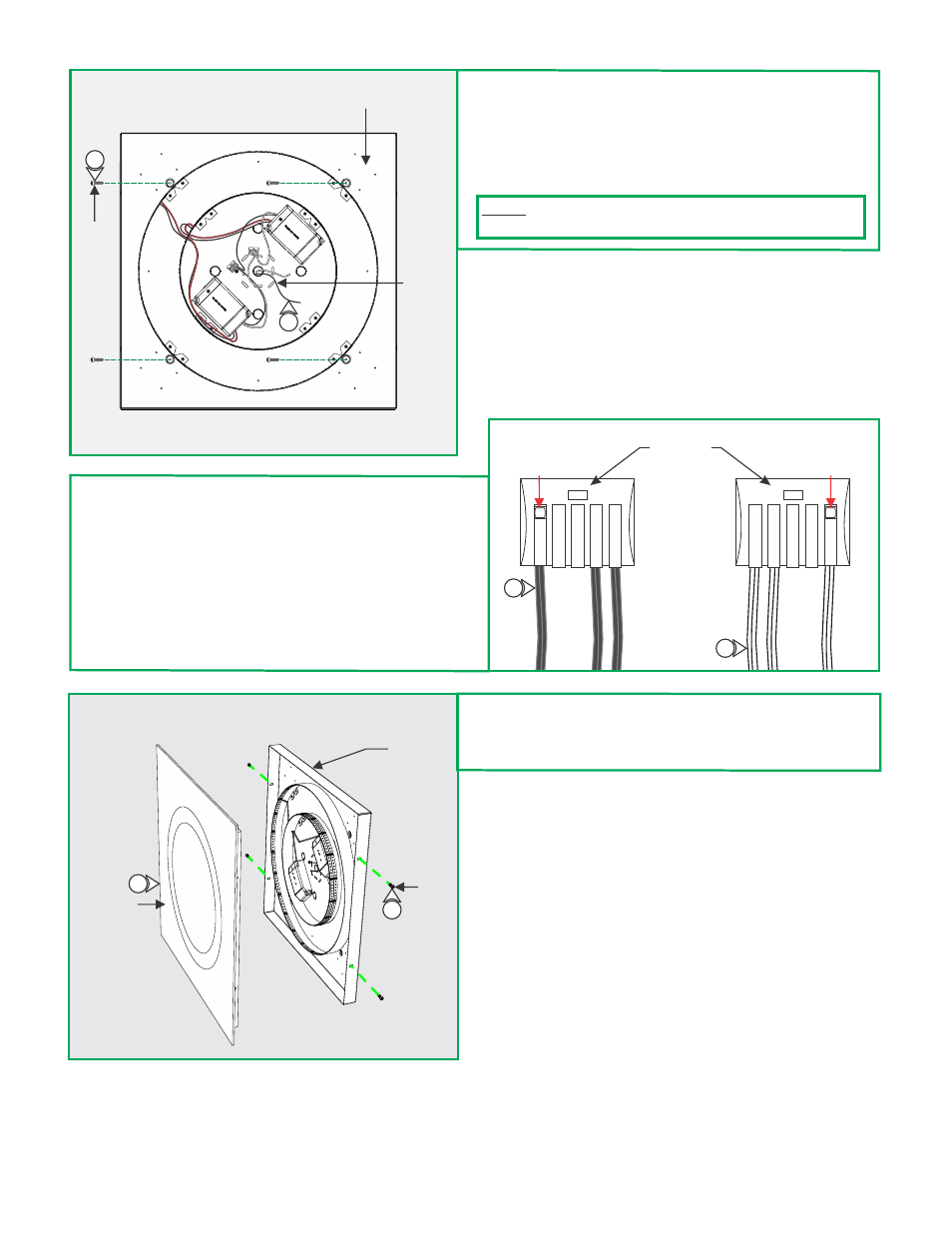

6: Feed the 120 VAC power wires through the mounting plate.

7: Line up the mounting plate holes with the anchors and
secure it with the four #8-32 screws provided.

8: Ensure the mounting plate is grounded in accordance with
local electrical codes.

9: On the Wago connector that connects the 120V hot
transformer wires, pull up an available lock lever and insert
the 120VAC hot power wire. Press the lock lever down to
connect and lock into place.

10: On the Wago connector that connects the 120V neutral
transformer wires, pull up an available lock lever and insert
the 120VAC neutral power wire. Press the lock lever down
to connect and lock into place.

11: Turn ON power to the fixture to test the LED strip.

MIRROR

MOUNTING
PLATE

M6
SCREW

12: Carefully place the mirror onto the mounting plate.

13: Secure the mirror to the mounting place by tightening four
M6 screws using the 3mm Allen wrench.

NOTE:

Contains integrated 24V LED lights consuming a total of 75

Watts.

PSU
HOT
WIRES

PSU
NEUTRAL
WIRES

120
VAC
HOT
WIRE

120
VAC
NEU
WIRE

PUSH
DOWN
TO LOCK

WAGO
CONNECTORS
(2X)

WALL

#8-32
SCREW
(4X)

MOUNTING
PLATE

120 VAC
POWER
WIRES
