8

Installation Instructions

TYPICAL INSTALLATION

TURN OFF WATER SUPPLY

1. Close the main water supply valve, located near the

well pump or water meter.

2. Shut off the electric or fuel supply to the water

heater.

3. Open all faucets to drain all water from house pipes.
NOTE: Be sure not to drain water from the water

heater, as damage to the water heater ele-

ments could result.

ASSEMBLY

1. EcoPure models are factory assembled. During

installation, unsnap and remove the top cover,

together with the salt lid, to expose the softener

valve assembly. Set them aside to prevent damage.

Check the brinewell to be sure it is secured and ver-

tical (See Figure 11).

2. Lift the brine valve out of the brinewell. Make sure

the float stem is parallel to the stand tube so the

seals will seat properly during operation. Place the

brine valve back into the bottom of the brinewell and

reinstall the brinewell cover.

3. Install the brine tank overflow grommet and elbow

into the 2 cm diameter hole in the back of the salt

storage tank wall.

MOVE THE UNIT INTO PLACE

1. Move the water softener into the desired location.

Set it on a solid, level surface.

IMPORTANT: Do not place shims directly under the

salt storage tank to level the softener.

The weight of the tank, when full of

water and salt, may cause the tank to

fracture at the shim.

continued on next page

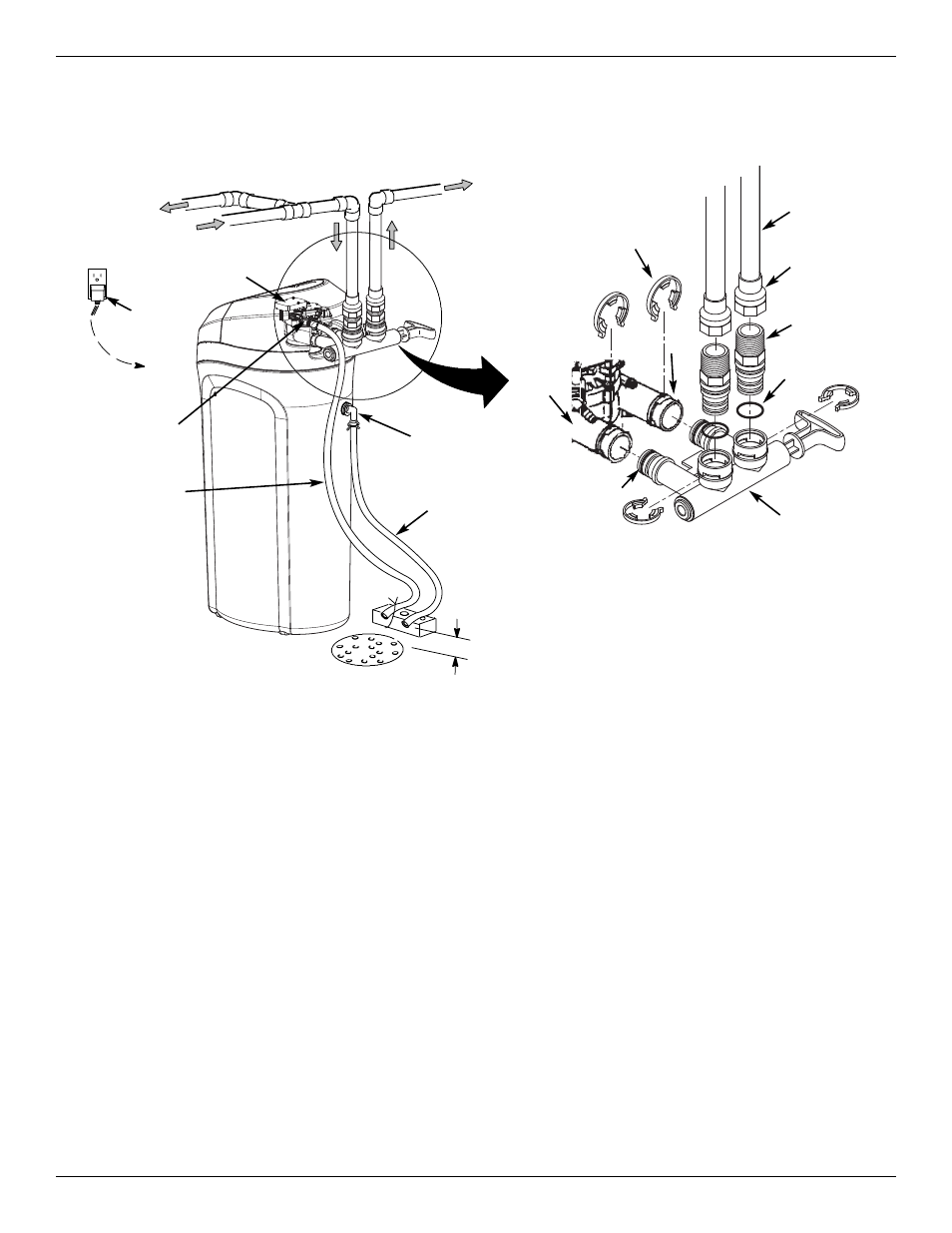

FIG. 9

Inlet

Outlet

Clips

Pipe

To Outside

Faucets

1” NPT Sweat

Adaptor (not

included)

O-ring

Single

Bypass Valve

Lubricated

O-ring

Conditioned

Water

Hard Water

Main Water Pipe

Plug-in

Trans -

former

Water Softener

Valve

To

Controller

Valve Drain

Elbow

Valve Drain

Hose*

*Do not connect

the water softener

valve drain hose

to the salt storage

tank overflow

hose.

Floor Drain

Overflow

Drain Elbow

Salt Storage

Tank Overflow

Hose*

Secure Valve Drain Hose

in place over Floor Drain

NOTE: See “Air Gap Requirements” section.

1” NPT

Threaded

Adaptor

4 cm

air gap
