Belt grinder SM-140
34
Spare Parts
10
10. Spare Parts

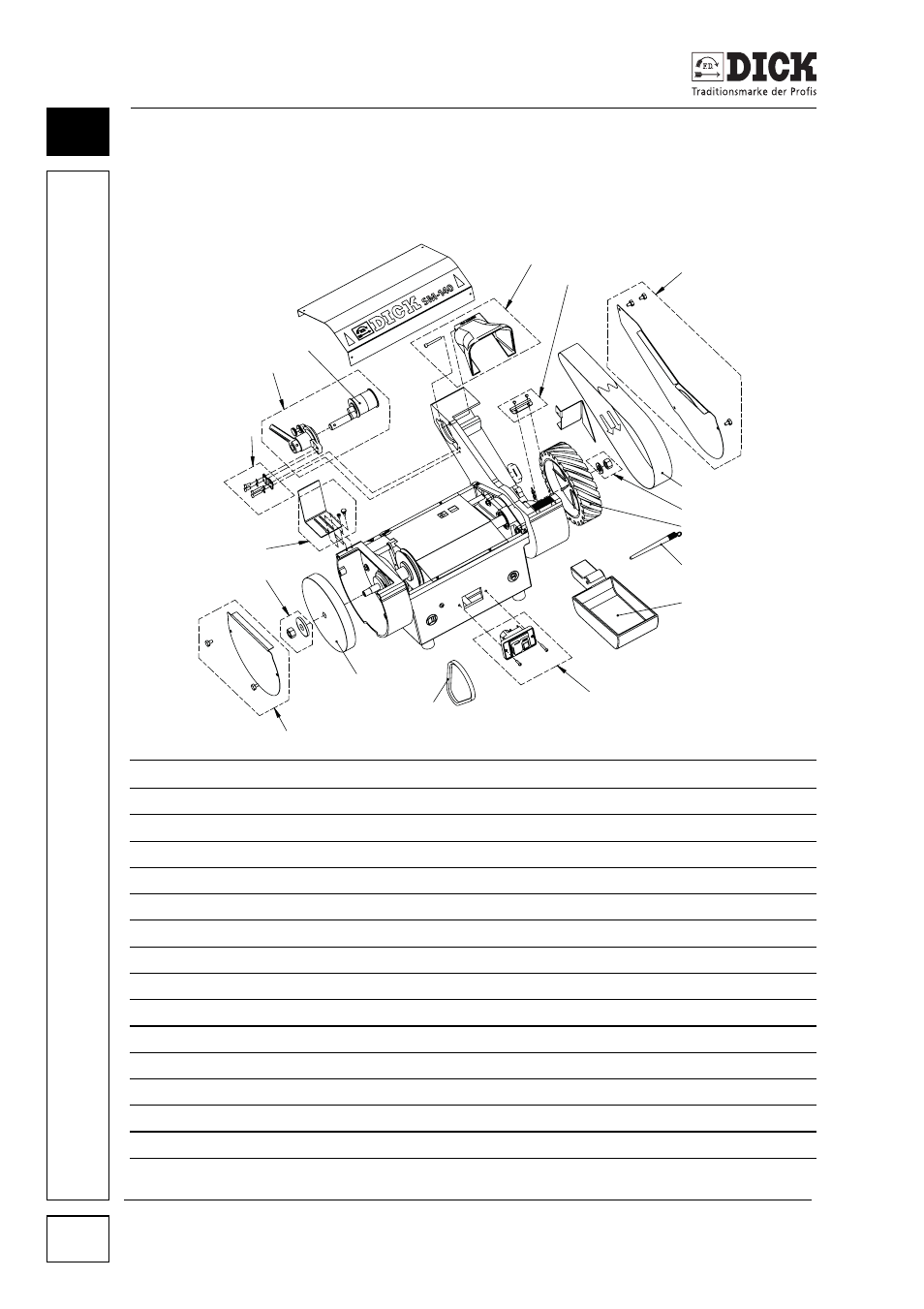

10.1 Spare parts drawing
9 8249 3973
9 8249 3979
9 8249 3980
9 8249 3938
9 8249 3902
9 8249 3854
9 8249 3981
9 8249 3875
9 8249 3920
9 8079 3648
9 8249 3977
9 8249 3972
9 8249 3975
9 8249 3885
9 8249 3974
9 8079 3659
9 8249 3976
Order no.
Quantity
Name
Dimensions
9 8079 3648 1 no.
Polishing wheel
ø200 x 25 x ø16, Part 3648
9 8219 0333 1 no.
Polishing paste
300g
9 8079 3659 1 set
Switch, complete
1~230V 50/60Hz
9 8249 3852 1 set
Operating instructions
SM-140 – 230V D/GB/F/I/E/RUS
9 8249 3854 1 no.
Water tank
SM-140 mod13
9 8249 3875 1 no.
Contact washer
ø200 x 50
9 8249 3885 1 assembly Belt tension, complete
SM-140 mod13
9 8249 3902 1 no.
Fixing bolt
SM-140 mod13
9 8249 3920 1 no.
V-belt
Z 450 GB
9 8249 3938 10 no.
Set of grinding belts P120 1000 x 50
9 8249 3972 1 set
Cover, left, complete
SM-140 mod13
9 8249 3973 1 set
Cover, right, complete
SM-140 mod13
9 8249 3974 1 assembly Deflection pulley, complete SM-140 mod13
9 8249 3975 1 set
Spring set
SM-140 mod13
9 8249 3977 1 set
Flange set, left
SM-140 mod13
