Belt grinder SM-140 19
Putting into operation
7
1 Release the clamping lever [2] and undo the knurled lock
nut [5] of the belt tensioner [3].
2 Turn the grinding belt by hand and at the same time check
whether it drifts to the side.
3 If necessary, use the knurled adjusting screw [4] so that the
belt runs in the middle of the deflection pulley [1].
4 Re-tighten the knurled lock nut [5].
5 If necessary, readjust while the motor is running.
7.5 Adjusting and dismantling the water tank
To avoid overheating of the cutting tools the SM-140 belt grinder
has integrated water cooling. The grinding belt dips into a water
bath and through this movement removes a quantity of water,
which is then distributed over the surface of the grinding belt by
a distributing brush [1].

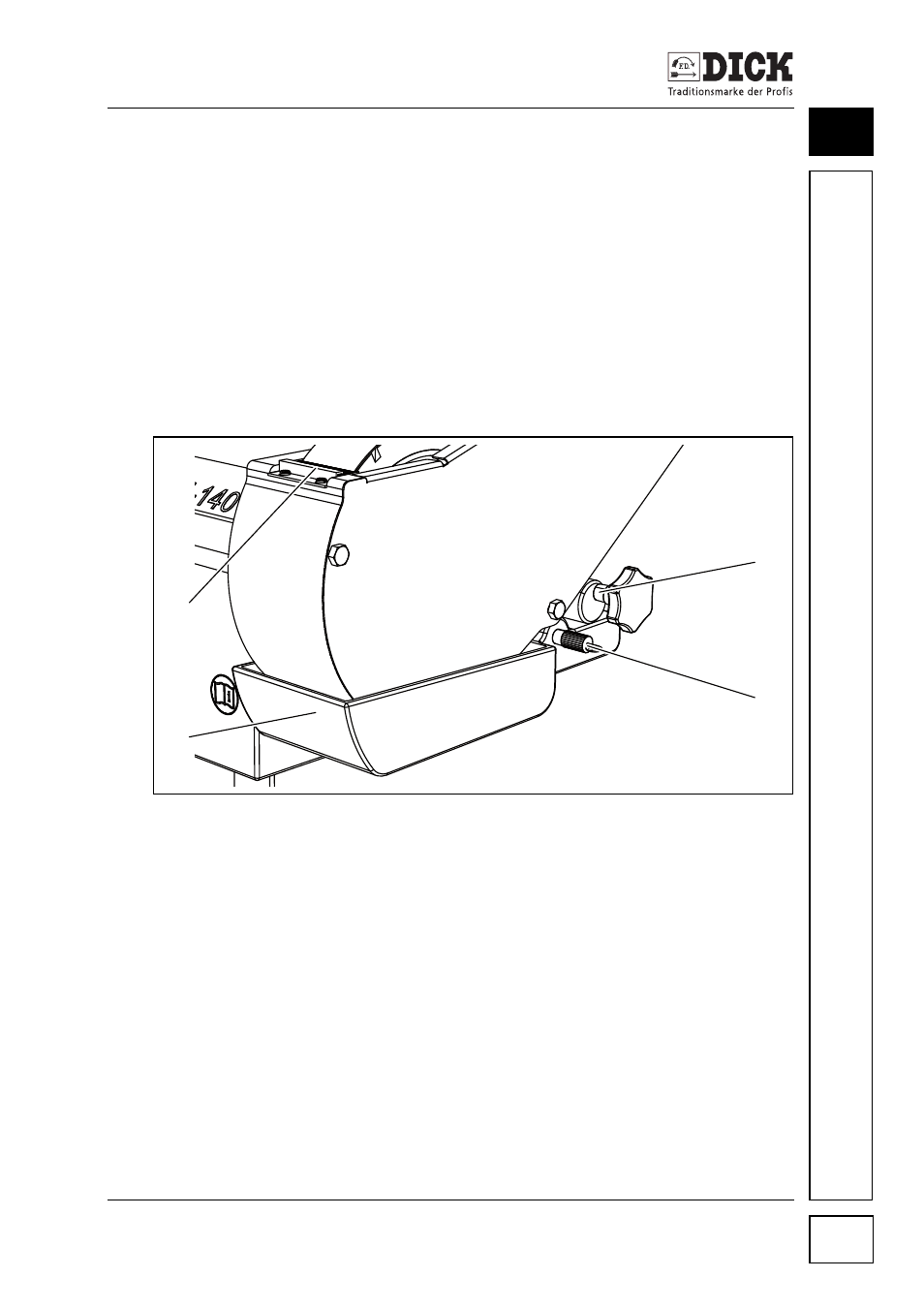

Figure 7.4 – Water tank
[1] Distribution brush
[2] Eccentric
[3] Fixing bolt
[4] Water tank
2
3
1
4
