Belt grinder SM-140 15
Structure and Function
6
6.3 Function
The belt grinder consists of two functional groups: A grinding
arm [1] with the grinding belt [4] and a polishing station [8] with
polishing wheel [9]. The polishing station is mounted on the left and
the grinding arm is mounted on the right of the housing. The switch
[6] and the four machine bases [7] are fixed to the housing The
specified direction of rotation for the polishing wheel [9] and the
grinding belt is marked on the belt grinder. A water tank [5] is
attached to the grinding arm to cool the tool to be ground. Surplus
water is collected by the sprayhood [2].
6.4 Covers

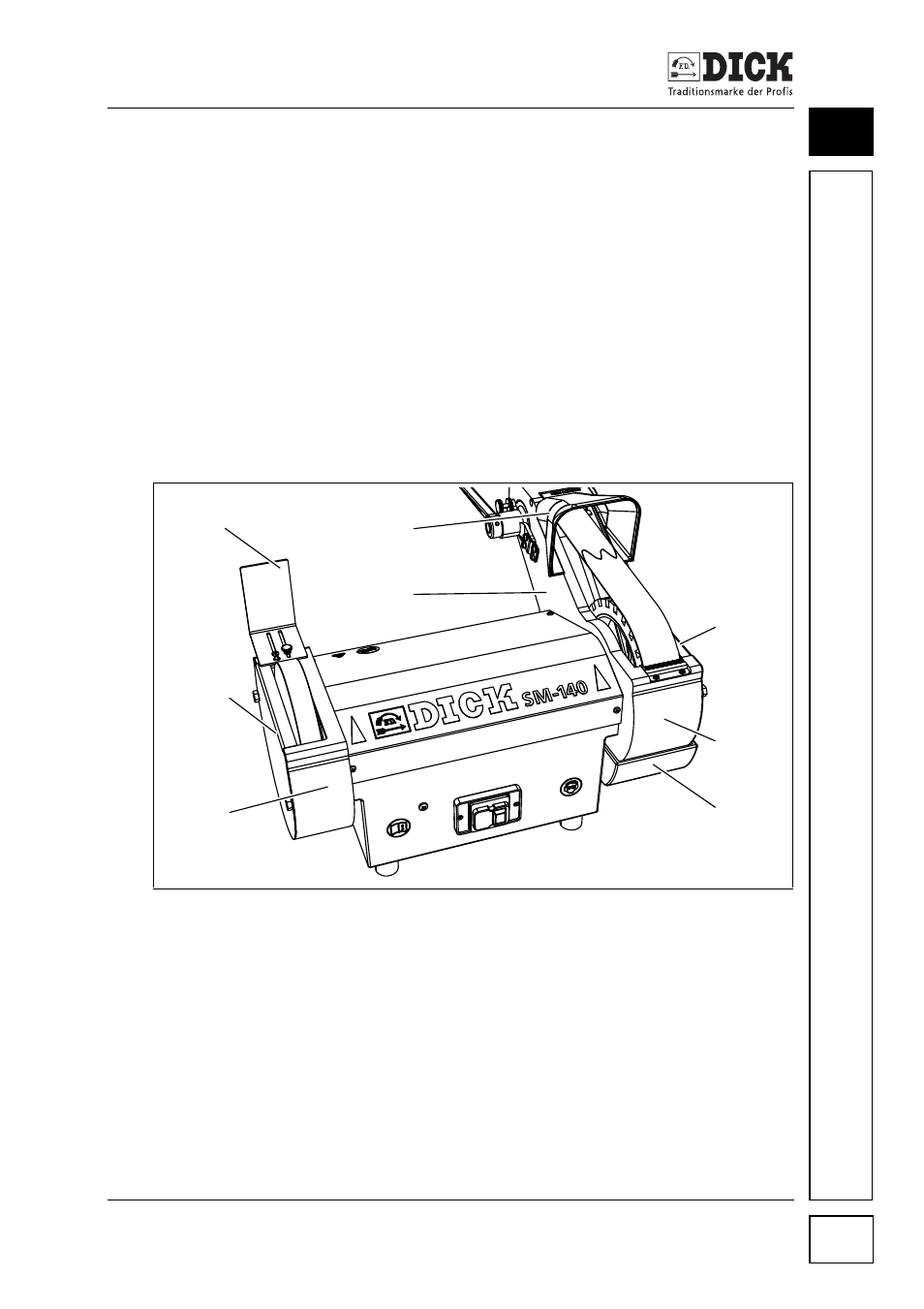

Figure 6.2 – Covering danger zones
[1] Deflection plate
[2] Sprayhood
[3] Left-hand side panel of the grinding arm
[4] Right-hand side panel of the grinding arm
[5] Front cover of the grinding belt
[6] Water tank
[7] Left-hand side panel of the polishing wheel
[8] Cover of the polishing wheel
1
3
2
4
6
5
7
8
