CTEK Z4200U SkyRouter - Manual (Page 7)

26 October 2012
3
2 Connectors, Lights, Switches, and Jumpers
2.1 Switches
Referring to Figure 1, there are two switches on the front of the Z Series router. S1 (Reset) causes a hard reset of unit.
S2 (DFLT) is used to completely restore the firmware settings that were included when the product was shipped from the
factory. To restore factory defaults, the unit must be running. You should wait a full two (2) minutes after booting or
powering on the unit before restoring factory defaults. After waiting two minutes press the Restore Defaults (inner) switch
and hold it down for 10 seconds. After 10 seconds, you will see both the green and yellow lights go off. At that time you
may either press the reset (outer) switch or cycle power on the unit.

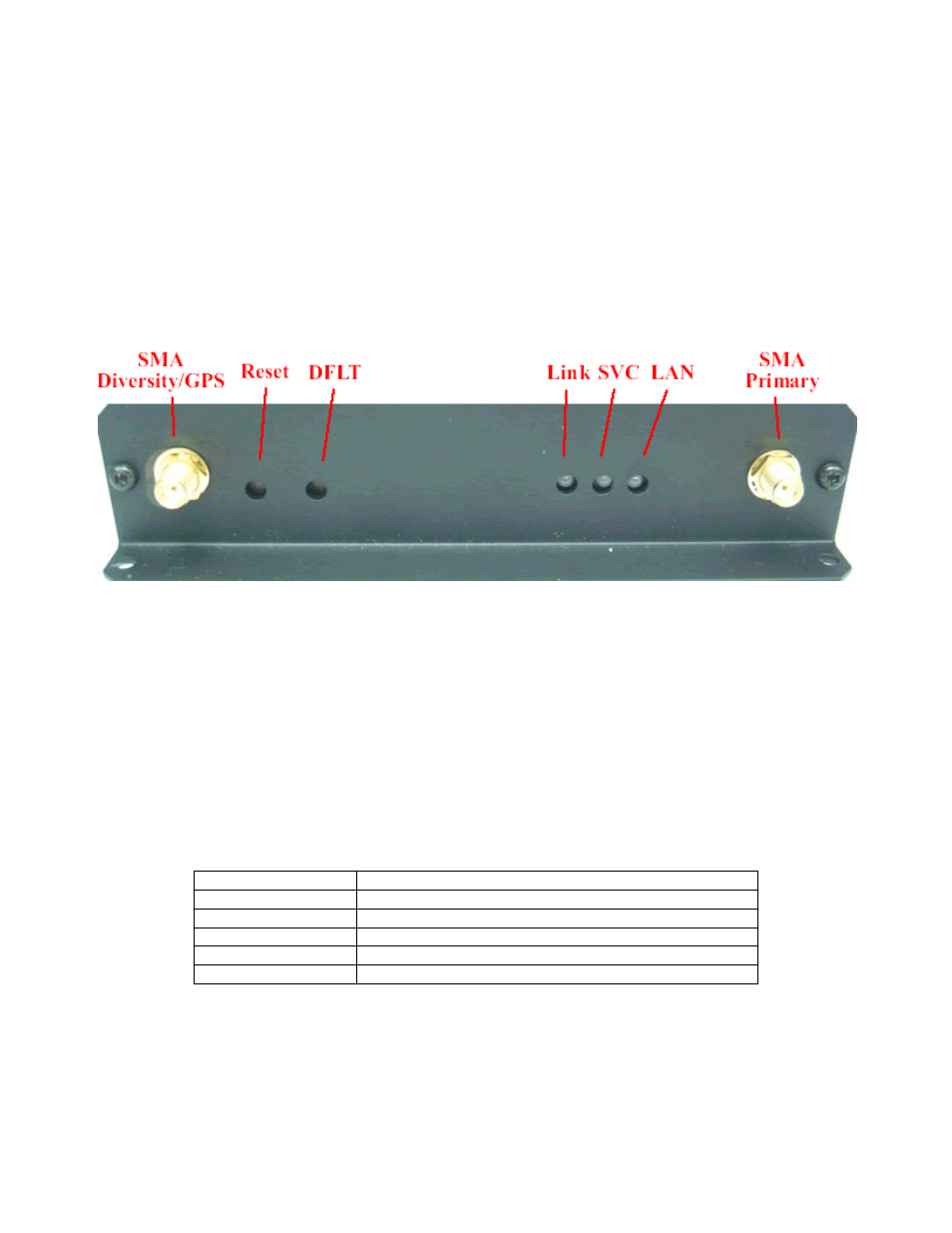

Figure 1 - Lights and Switches
2.2 Lights
The Z Series router has indicators as shown in Figure 1.
LAN – The LAN light indicates that the Ethernet port is connected to an active Ethernet device.
The network status indicators LINK and SVC are interpreted as follows:
SVC – Multi-color (yellow/green). Indicates:
a) Power
b) RSSI
Display Definition
Off No Power
Yellow Blinking Power On – No Signal (RSSI)
Yellow Solid Power On – RSSI < -88
Green Solid Power On – RSSI >= -88
