Wireless Status Summary Screen (Z4200)

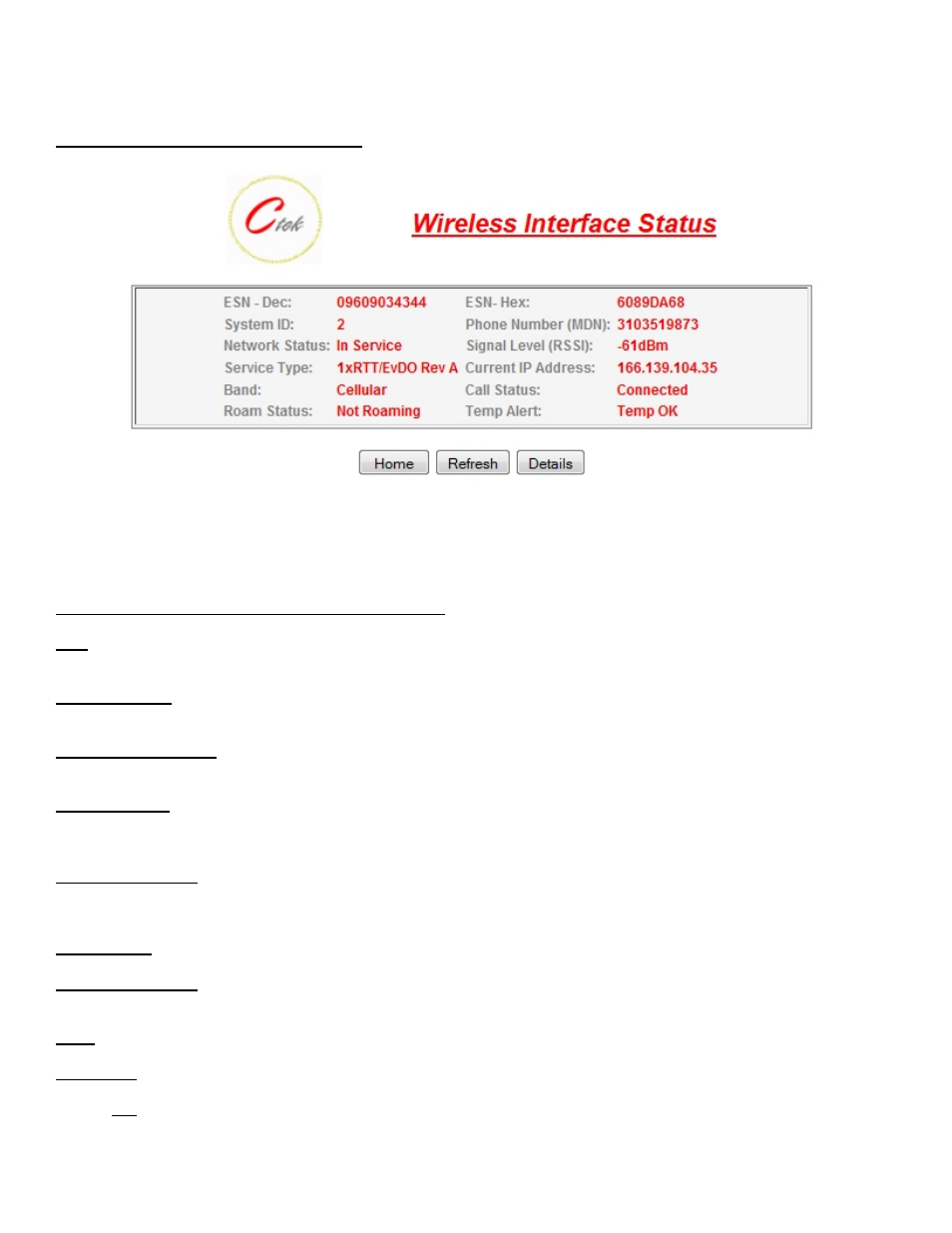

Figure 16 - Wireless Status (Z4200)
Wireless Status Field Definitions – Summary Display
ESN – An identifier assigned to the CDMA radio for this router. The value is given in decimal (Dec) and Hexidecimal
(Hex).
System ID (SID) – Numeric Identifiers assigned to local market areas within a wireless network. Your wireless network
operator may request this information if you are having trouble connecting to the network.
Phone Number (MDN) – The circuit side phone number of the CDMA radio in your router. MDN stands for Mobile
Directory Number.
Network Status – Either In Service or Out of Service. Indicates the state of the network as seen through your particular
router
Signal Level (RSSI) – A measure of the strength of the wireless signal that your router is currently seeing. A larger
negative number indicates a marginal network connection. Typically this number will be in the range of -75 - -95dBm
although there are many locations where the value will be outside of the typical range.
Service Type – The type of bearer channel this router is operating on. Options are None, 1xRTT and EVDO, or EVDO.
Current IP Address – The Internet Protocol (IP) address assigned to this router by the serving wireless network. If this
field is blank a connection does not currently exist.
Band – The range of spectrum that this unit is operating on. Options are PCS or Cellular
Call Status – Indicates the current status of network registration
Idle - - Not registered (disconnected), a unit that is idle will not have a valid IP address.
